Heat Jacket DN125 SS316L Manual Sanitary Ball Valve

Heat Jacket DN125 SS316L Manual Sanitary Ball Valve

SS316L Manual Sanitary Ball Valve

DN125 Sanitary Ball Valve

10Bar Sanitary Ball Valve

Place of Origin:

CHINA

Brand Name:

DONJOY

Certification:

CE,3A,FDA

Contact Us

Request A Quote
Product Details
Product Name:
Ball Valve
Size:
DN25-DN200, 1"-8"
Handle:
Pull Handle
Media:
304/316L
Connection:
Welded, Clamped, Thread, Flange
Grade:
Food Grade
Payment & Shipping Terms
Minimum Order Quantity
1
Packaging Details
carton box
Payment Terms
T/T, LC, Credit Card
Product Description

DN125 SS316L Manual Sanitary ball valve with heat jacket for chocolate without deadleg



Description:



Type of 2 WAY Ball valve

1. Pneumatic 2 WAY Ball valve

2. Pneumatic 2 WAY Ball valve with positioner

3. Pneumatic 2 WAY Ball valvewith C-TOP

4. Pneumatic 2 WAY Ball valve With Mini C-TOP

5. Pneumatic 2 WAY Ball valveWith Electric actuator

6. Aluminum acuator with positioner



Specification

Product Name: DN125 SS316L Manual Sanitary ball valve with heat jacket for chocolate without deadleg
Valve Body Material: SS304 or SS316L
Seal Material: PTFE
Max. Working Pressure: 10Bar
Max. Working Temperature: 150 degree C
Availably size: DN25-DN200 or 1" - 8"
Availably connection: Weld,Clamp,Thread, Flange
Availably standard: DIN,SMS,3A
Ball Type: Directly
Operated: Manual,Pneumatic,Electric,control Head
Certificate: FDA,CE,3A,ISO



Applications:

The ball valve according to 3A and ASME BPE standard design, mainly used in pharmaceutical, food and beverage, wine, chemical and other industires



Technical Feature

All-inclusive tee design, no stranded high clean, meet the requirement of CIP and SIP sterilization and cleaning,and heat resistance of 180degree, the highest pressure 30Bar,automatic compensating sealing design, the advantages of samll torque, long service life,



Advantage

1.Small Torque,

2.Long Service life

3.Full degreasing,

4.sealing elastic compensation

5. Small size, trace retention inside, appearance close to no dead ends, very flexible function combination, maintenance without professional tools, economical, simple and reliable



Related picture

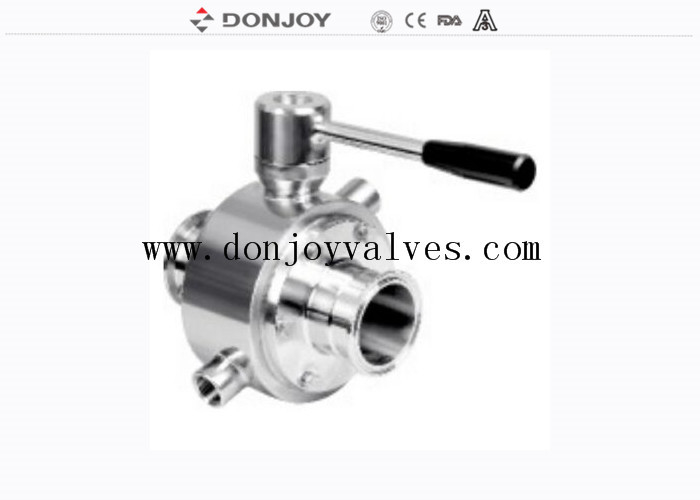

Heat Jacket DN125 SS316L Manual Sanitary Ball Valve 0

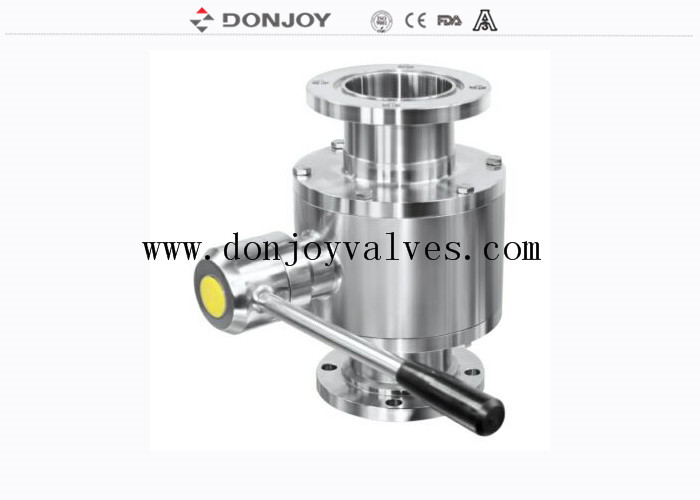

Heat Jacket DN125 SS316L Manual Sanitary Ball Valve 1



Competitive Advantage:

Donjoy With advanced technology, excellent quality and perfect after-sales service system, has been assessed for the national high-tech enterprises, the Provincial Famous Trademark, the Trovincial Science and Ttechnology Enterprises, Innovative Enterprises, Patent Model Enterprises, R & D Center, AAA Credit Enterprises.

“DONJOY is the only company that pass nine series of products by American 3A certification organization in Asian sanitary pumps and valves field.”



If you need more informations,Please do not hesitate to contact us.
