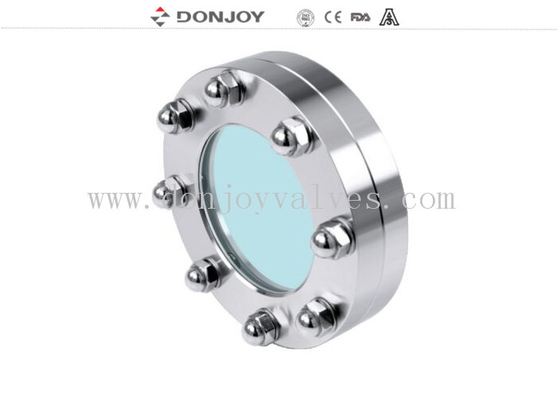

SS316L DN100 Flanged Sight Glass With Tempered Glass

SS316L DN100 Flanged Sight Glass With Tempered Glass

DN100 Flanged Sight Glass

SS316L Flanged Sight Glass

Tempered Flanged Sight Glass

Place of Origin:

CHINA

Brand Name:

DONJOY

Certification:

CE/FDA/ISO/3A

Model Number:

NO.VSJ200N1

Contact Us

Request A Quote
Product Details
Material:
Ss 304
SIZE:
1" Inch - 6 Inch
Stanadard:
DIN, 3A, SMS, ISO
Connection:
Welded, Clamped, Thread, Flange
Polishing:
Mirror Polishing, Matt Polishing
Surface Treatment:
Operated By CNC Lathe
Feature:
With Stainless Steel Protective Cover
Payment & Shipping Terms
Minimum Order Quantity
1
Packaging Details
Carton, Wooden Case
Delivery Time
10-30 working days
Payment Terms
T/T,L/C, Credit Card
Product Description

SS316L DN100 Flanged sight glass with Tempered glass



Quick Detail

Flange sight glass

Size:1.5"-12"  ,DN40- DN300

Type:  Manual operation

Gasket: EPDM / PTFE according FDA 177.1600

Max pressure :10bar

Max Temperature:-10°C to 120°C

Assemble flange with glass by using hexagon socket boltes

Glass: Tempered glass

LIght : Hight light, White cold light source/ waterproof, explosion-proof design

Cabel power supply  AC110V-220V, DC24V

Wireless power supply, one charging can use 2-3 months(Depending on the frequency )



Specification

Product Name:

Stainless steel DN250 Flange sight glass with Multi Stainless steel light

Valve Body Material:

SS304/SS316L/1.4301/1.4404

Seal Material:

EPDM,PTFE,SILICON,etc

Sight glass:

tempered glass

Max.temperature:

-10 to 120 degree

Gasket

NBR, EPDM, FPM in accordance with FDA 177.2600

Available connection:

Clamp, Thread, weld, Flange

Available standard:

DIN, SMS, 3A, ISO

Certification:

3A/54-02 (1580), PED/97/23/EC, FDA.177.2600, ISO9001/2008

Application scope:

Dairy, food, beverage, pharmacy, cosmetic, etc

Feature:

For full angle observation

Advantage:

Precise observation on flow

Packaging Details:

Plywood case or customerized. Or as per the request of customers

Delivery details:

10-20 days



Application
Flange sight glass is comprised of stainless steel fram and glass, Through it, operator can observe the flowing of the liquid substance clearly and precisely in the field of foods, cosmetic, pharmaceutical and fine chemicals industries.


Features
Full bore Design
360degree viewing angle
Can be used in vertical or horizontal position

Drawing of sight glass

SS316L DN100 Flanged Sight Glass With Tempered Glass 0

SS316L DN100 Flanged Sight Glass With Tempered Glass 1




Packaging
Plywood case or customerized.
Or as per the request of customer


Delivery
Normally, 10-20 days



Tag : Donjoy flange sight Glass, Sanitary sight Glass, Flange sight glass with light.
