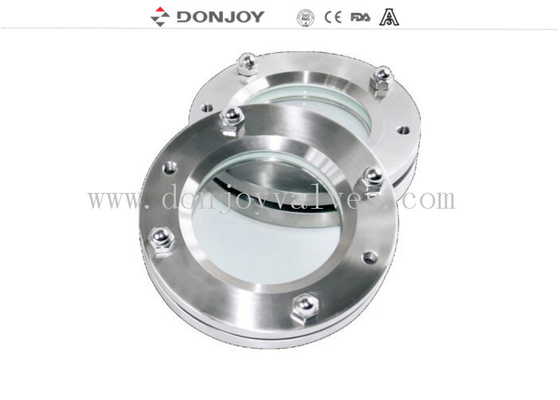

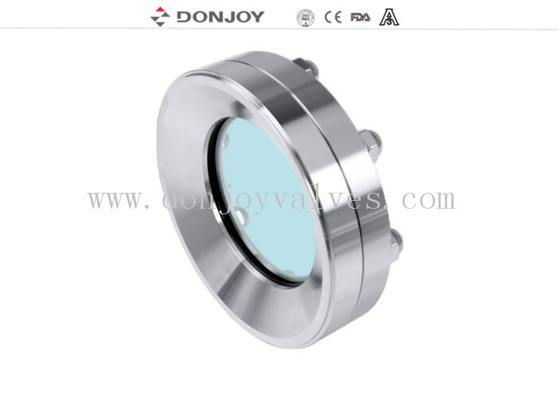

Pharmaceutical Tank Stainless Steel Sight Glass Flanged DN40

Pharmaceutical Tank Stainless Steel Sight Glass Flanged DN40

    • Pharmaceutical Tank Stainless Steel Sight Glass Flanged DN40
    • Pharmaceutical Tank Stainless Steel Sight Glass Flanged DN40
  • Pharmaceutical Tank Stainless Steel Sight Glass Flanged DN40

    Product Details:

    Place of Origin: CHINA
    Brand Name: DONJOY
    Certification: CE/FDA/ISO/3A
    Model Number: NO.VSJ200N1

    Payment & Shipping Terms:

    Minimum Order Quantity: 1
    Packaging Details: Carton, Wooden Case
    Delivery Time: 10-30 working days
    Payment Terms: T/T,L/C, Credit Card
    Contact Now
    Detailed Product Description
    Material: Ss 304 SIZE: 1" Inch - 6 Inch
    Stanadard: DIN, 3A, SMS, ISO Connection: Welded, Clamped, Thread, Flange
    Polishing: Mirror Polishing, Matt Polishing Surface Treatment: Operated By CNC Lathe
    Feature: With Stainless Steel Protective Cover
    High Light:

    DN40 Stainless Steel Sight Glass

    ,

    Pharmaceutical Tank Flanged Sight Glass

    ,

    Explosion Proof Flanged Sight Glass

    6" Flanged stainless steel sight glass for phamaceutical tank with SS316L



    Quick Detail

    Flange sight glass

    Size:1.5"-12"  ,DN40- DN300

    Type:  Manual operation

    Gasket: EPDM / PTFE according FDA 177.1600

    Max pressure :10bar

    Max Temperature:-10°C to 120°C

    Assemble flange with glass by using hexagon socket boltes

    Glass: Tempered glass

    LIght : Hight light, White cold light source/ waterproof, explosion-proof design

    Cabel power supply  AC110V-220V, DC24V

    Wireless power supply, one charging can use 2-3 months(Depending on the frequency )



    Specification

    Product Name:

    6" Flanged stainless steel sight glass for phamaceutical tank with SS316L

    Valve Body Material:

    SS304/SS316L/1.4301/1.4404

    Seal Material:

    EPDM,PTFE,SILICON,etc

    Sight glass:

    tempered glass

    Max.temperature:

    -10 to 120 degree

    Gasket

    NBR, EPDM, FPM in accordance with FDA 177.2600

    Available connection:

    Clamp, Thread, weld, Flange

    Available standard:

    DIN, SMS, 3A, ISO

    Certification:

    3A/54-02 (1580), PED/97/23/EC, FDA.177.2600, ISO9001/2008

    Application scope:

    Dairy, food, beverage, pharmacy, cosmetic, etc

    Feature:

    For full angle observation

    Advantage:

    Precise observation on flow

    Packaging Details:

    Plywood case or customerized. Or as per the request of customers

    Delivery details:

    10-20 days



    Application
    Flange sight glass is comprised of stainless steel fram and glass, Through it, operator can observe the flowing of the liquid substance clearly and precisely in the field of foods, cosmetic, pharmaceutical and fine chemicals industries.


    Features
    Full bore Design
    360degree viewing angle
    Can be used in vertical or horizontal position

    Drawing of sight glass

    Pharmaceutical Tank Stainless Steel Sight Glass Flanged DN40 0

    Pharmaceutical Tank Stainless Steel Sight Glass Flanged DN40 1




    Packaging
    Plywood case or customerized.
    Or as per the request of customer


    Delivery
    Normally, 10-20 days
