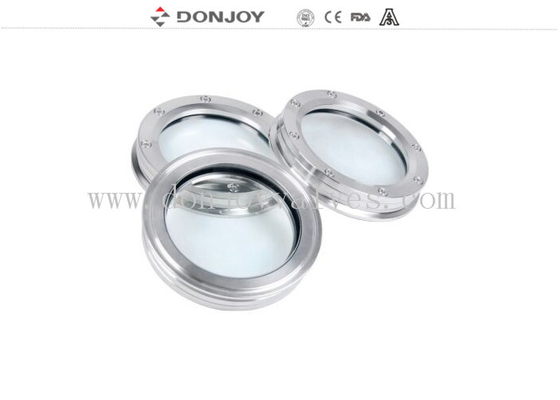

SS316L Clamp Flanged Stainless Steel Sight Glass DIN100 For Pharmaceutical

SS316L Clamp Flanged Stainless Steel Sight Glass DIN100 For Pharmaceutical

  • SS316L Clamp Flanged Stainless Steel Sight Glass DIN100 For Pharmaceutical
  • SS316L Clamp Flanged Stainless Steel Sight Glass DIN100 For Pharmaceutical
  • SS316L Clamp Flanged Stainless Steel Sight Glass DIN100 For Pharmaceutical
SS316L Clamp Flanged Stainless Steel Sight Glass DIN100 For Pharmaceutical
Product Details:
Place of Origin: CHINA
Brand Name: DONJOY
Certification: CE/FDA/ISO/3A
Model Number: NO.VSJ303Y1-DIN
Payment & Shipping Terms:
Minimum Order Quantity: 1
Packaging Details: Carton, Wooden Case
Payment Terms: T/T,L/C, Credit Card
Contact Now
Detailed Product Description
Brand: DONJOY SIZE: DN65 - DN150, 3" - 6"
Stanadard: DIN / 3A / SMS / ISO Connection: Welded, Clamped,Thread
Internal Polishing: Mirror Polishing Etc. Clamp: Optional
Lighter: Selectable
High Light:

SS316L Stainless Steel Sight Glass

,

Stainless Steel Sight Glass DIN100

,

Clamp Flanged Sight Glass

Pharmaceutical industry DIN100 SS316L Clamp flanged sight glass



Brief Instruction

Sight Glass

Size:DN80-DN200,3"-8"

Type:  DC24V,NO.5 Battery

Gasket: EPDM,PTFE

Working Pressure:10Bar



Specification

Product Name:

Pharmaceutical industry DIN100 SS316L Clamp flanged sight glass

Valve Body Material:

SS304/SS316L/1.4301/1.4404

O ring:

EPDM FPM

Material connecting with other part:



1.4301(304); 1.4404(316L)

Sight glass:

tempered glass

Max.temperature:

120 degree

Battery:

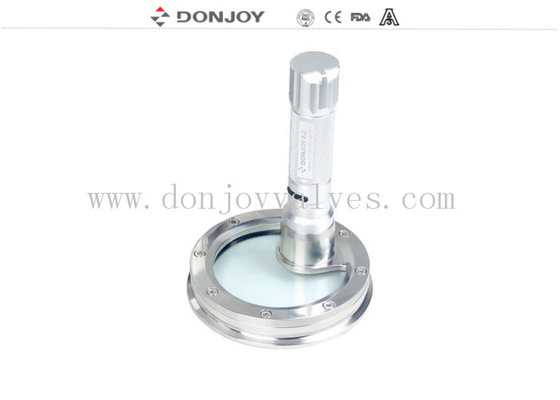

use high light flashlight,rechargeable lithium battery(220V Battery for 18650); can use AC220V/110V power supply lighting.

Availably connection:

Clamp, Thread, weld, Flange

Availably standard:

DIN, SMS, 3A, ISO

Certification:

3A/54-02 (1580), PED/97/23/EC, FDA.177.2600, ISO9001/2008

Application scope:

Dairy, food, beverage, pharmacy, cosmetic, etc



Suitable industry
sight-glass is comprised of stainless steel frame and glass.



It is used wiewing the biologic reactor, blender in laboratory filter, processing container, pipeline and other closed container, especially apply in pharmacy, food and beverage processing, such as the brewery, dairy.


Advantaged design
Full bore Design
360degree viewing angle
Can be used in vertical or horizontal position

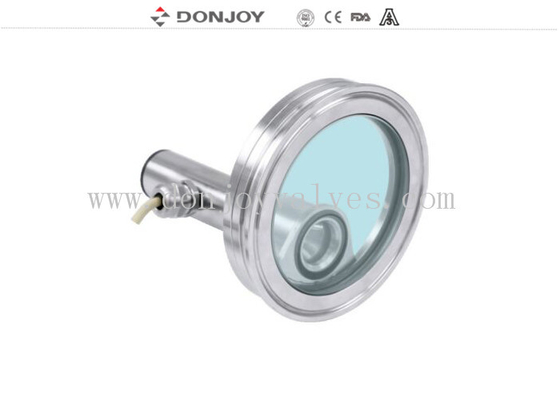

Call with light and wipper.


Drawing

SS316L Clamp Flanged Stainless Steel Sight Glass DIN100 For Pharmaceutical 0





Various Selection of Union Sighlt glass

SS316L Clamp Flanged Stainless Steel Sight Glass DIN100 For Pharmaceutical 1

Tag : Sight glass,  Flange sight glass, Donjoy Clamp flange sight glass
