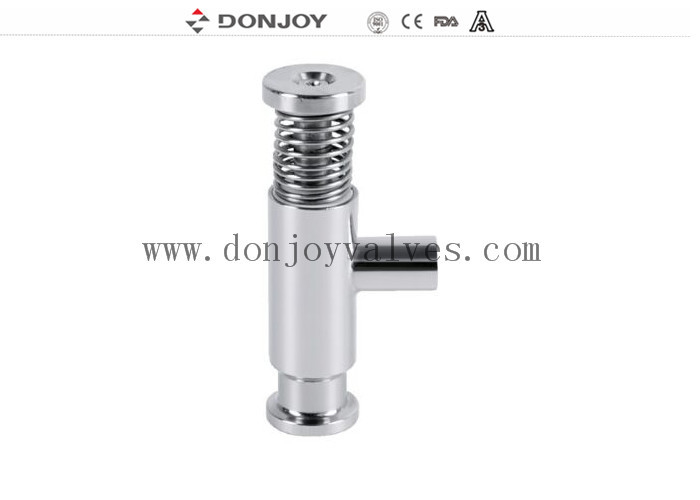

50.5MM Clamp Yugurt Sampling Valve Press Type With G Thread

50.5MM Clamp Yugurt Sampling Valve Press Type With G Thread

large.img.alt

Product Details:

Place of Origin: CHINA
Brand Name: DONJOY
Certification: CE/FDA/ISO/3A
Model Number: NO.VQY300S1

Payment & Shipping Terms:

Minimum Order Quantity: 1
Packaging Details: WOODEN CASE, CARTONS
Payment Terms: T/T,L/C, Credit Card
Contact Now
Detailed Product Description
Brand: DONJOY Clamp Size: 50.5MM
Stanadard: DIN,3A,SMS,ISO Connection: Welded, Clamped,Thread
Polished: Mirror, Matt Thread Type: G Thread
High Light:

Yugurt Sampling Valve

,

50.5MM Clamp Sampling Valve

,

AISI316L Sampling Valve

DONJOY SS316L Yugurt sampling valve with tri clamp connection



Sample Valve

Size:50.5mm

Type:  Press type

Gasket: EPDM,PTFE

Working Pressure:6Bar

Polished: Mirror, Mattr, Ra≤0.8μm,Ra≤0.5μm



Specification

Product Name:

Manual elliptic type handle Sanitary Sample Valve Thread Connection Ra≤0.8μm

Material:

AISI304, AISI316L

Size:

1/2"

Finish:

Ra ≤0.8um,Mirror, 320Grit, 180Grit, 240Grit

Connection:

Welded,Clamped

Standard:

DIN,3A,SMS,ISO

Certificate:

CE, ISO9001/2008, 3A

Application scope:

Dairy, food, beer, beverage, pharmacy, cosmetic,Oil,Waste water etc

Packaging Details:

Shrink wrapped - carton - pallet . Or as per the request of customers



Sanitary Sampling Valves Application and design

1.The valve seat open inside of tank or other equipment that it can avoid opening by accident due to high pressure in pipeline.

 2. The valve is normally closed ( by spring), the valve is open as soon as pushing the handle and closed when loosing up.

3.The design of completely drainage water is to avoid remains inside.

Drawing

50.5MM Clamp Yugurt Sampling Valve Press Type With G Thread 0
