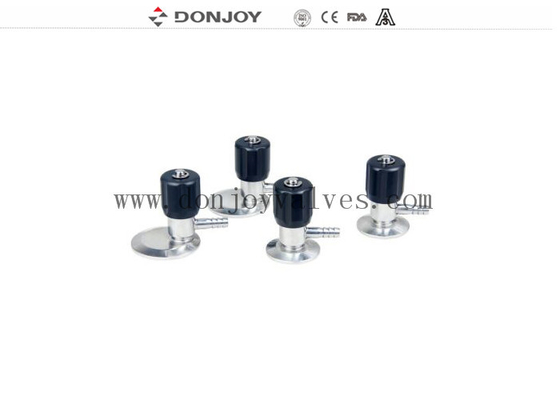

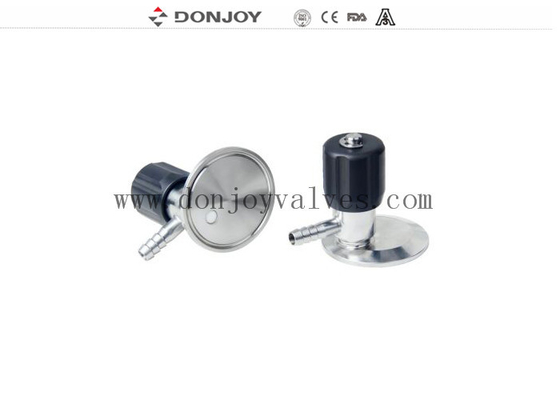

Eccentric Non Retention Sampling Valve Clamped Thread

Eccentric Non Retention Sampling Valve Clamped Thread

  • Eccentric Non Retention Sampling Valve Clamped Thread
  • Eccentric Non Retention Sampling Valve Clamped Thread
Eccentric Non Retention Sampling Valve Clamped Thread
Product Details:
Place of Origin: CHINA
Brand Name: DONJOY
Certification: CE/FDA/ISO/3A
Model Number: Normal modle
Payment & Shipping Terms:
Minimum Order Quantity: 10
Packaging Details: WOODEN CASE, CARTONS
Payment Terms: T/T,L/C, Credit Card
Contact Now
Detailed Product Description
Brand: DONJOY SIZE: 12.7mm,1/2"mm
Stanadard: DIN,3A,SMS,ISO Connection: Welded, Clamped,Thread
Polished: Mirror Corlor: Siliver
High Light:

Non Retention Sampling Valve

,

Eccentric Sampling Valve

,

Clamped Thread Sampling Valve

SS316 Eccentric non-retention sampling valve with clamp connection



Specification

Product Name:

Sanitary Stainless  Sample  valve Clamped Connection,SS304/ss316L

Material:

AISI304, AISI316L

Size:

12.7mm,1/2",3/8",1/2",3/4"

Type: Manual
Gasket: EPDM,PTFE
Working Pressure: 6 bar

Finish:

Ra ≤0.8um,Mirror, 320Grit, 180Grit, 240Grit

Connection:

Welded,Clamped

Standard:

DIN,3A,SMS,ISO

Certificate:

CE, ISO9001/2008, 3A

Application scope:

Dairy, food, beer, beverage, pharmacy, cosmetic,Oil,Waste water etc

Packaging Details:

Shrink wrapped - carton - pallet . Or as per the request of customers



Introduction

Its mainly applied to extract sample from tank or pipeline, it also can be  assembled at the bottom  of the tank or pipeline to drain away the remains. when turn the hand wheel clockwise, the valve shaft and seal rise up , At this time , valve is open for sampling, When trun the hand wheel anti-clockwise, the valve shaft and seal go down, at that time, the valve  is closed.
