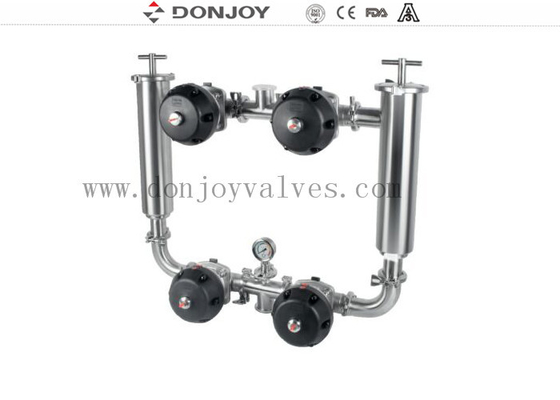

Donjoy Sanitary Food Grade Beverage Duplex Filter With Diaphragm Valve Control

Large Image : Donjoy Sanitary Food Grade Beverage Duplex Filter With Diaphragm Valve Control

Product Details:

Place of Origin:	CHINA
Brand Name:	DONJOY
Certification:	CE/FDA/ISO/3A
Model Number:	NO.EGL510

Payment & Shipping Terms:

Minimum Order Quantity:	Negotiation
Price:	negotiation
Packaging Details:	Carton, Wooden Case
Payment Terms:	T/T,L/C, Credit Card

Contact Now

Detailed Product Description

Brand:	DONJOY	SIZE:	1.5"-4"
Stanadard:	DIN,3A,SMS,ISO	Connection:	Clamped, Thread, Welded, Male
Polished:	Mirror, Matt	Materials:	AISI304, AISI316L
Place Of Origin::	Zhejiang, China
Highlight:	Beverage Duplex Filter , Food Grade Duplex Filter , Donjoy Sanitary Duplex Filter

Donjoy Sanitary Food Grade Beverage Duplex Filter with Diaphragm valve control

Quick Detail

Sanitary filter/Strainer, double filter

Guage pressure: With without is according customer requirement

Connection: Clamped, Thread, Welded.

Size:1.5"-4"

Type: Y type, Angle Type,Inline

Max pressure: 10Bar,145PIS

Working tempressure: -10℃ to 120 ℃(EPDM), +140℃ (SIP,30 Minites)

14℉ to 248℉

Gasket:EPDM( FDA 177.2600)

Screen:30-300meshes

Screen Hole:0.5mm-2mm

Specification

Product Name:	Duplex Filter, Double strainer combination Angle Type with the pressure guage
Material:	AISI304, AISI316L
Size:	1-4"
Finish:	Ra ≤0.8um,Mirror, 320Grit, 180Grit, 240Grit
Connection:	Welded, Threaded, Clamped
Standard:	DIN,3A,SMS,ISO
Certificate:	CE, ISO9001/2008, 3A
Application scope:	Dairy, food, beer, beverage, pharmacy, cosmetic,Oil,Waste water etc
Packaging Details:	Shrink wrapped - carton - pallet . Or as per the request of customers

Application:

this duplex filters is applied to eliminate the invisible solids from dairy, beverage and plulps. So as to purify the liquids. The two filters can run alternatively and continually. Becasue they can be replace or cleaned without powering off.

Metal Mesh

Mesh	B(MM)	Useful Surface(%)
30	0.55	48
40	0.4	46
60	0.3	52.6
80	0.2	42
100	0.15	36.2
165	0.1	45.4

Perforate Plate

A(MM)	Useful Surface(%)
0.5	15
1	28
1.5	33
2	30
3	33
5	46

Donjoy Sanitary Food Grade Beverage Duplex Filter With Diaphragm Valve Control 0

Advantages:

Two filters can be changed over.
The filter screen can be cleaned without stopping.

Duplex Filter (Angle Type)

Donjoy Sanitary Food Grade Beverage Duplex Filter With Diaphragm Valve Control 1

Duplex Filter(Straight Type)

Donjoy Sanitary Food Grade Beverage Duplex Filter With Diaphragm Valve Control 2

Donjoy Sanitary Food Grade Beverage Duplex Filter With Diaphragm Valve Control 3

Q: Are you trading company or manufacturer ?

A: We are factory.

Q: How long is your delivery time?

A: Generally it is 5 days if the goods are in stock. or it is 10 days if the goods are out of stock, it is according to quantity.

Q: What is your terms of payment ?

A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippme
