304 Sanitary Cylindric Angle Tank Pipeline Filter For Food & Beverage Industry

304 Sanitary Cylindric Angle Tank Pipeline Filter For Food & Beverage Industry

304 Angle Tank Pipeline Filter

Sanitary Pipeline Filter

EPDM Gasket Pipeline Filter

Place of Origin:

CHINA

Brand Name:

DONJOY

Certification:

CE/FDA/ISO/3A

Model Number:

NO.EGL210

Contact Us

Request A Quote
Product Details
Brand:
DONJOY
SIZE:
1"-4"
Stanadard:
DIN,3A,SMS,ISO
Gasket:
EPDM
Polished:
Mirror
Fiter Function::
Water
HS Code:
8421299090
Nominal Pressure:
10bar
Payment & Shipping Terms
Minimum Order Quantity
1
Price
Negotiation
Packaging Details
Carton, Wooden Case
Payment Terms
T/T,L/C, Credit Card
Product Description

304 sanitary Cylindric Angle Tank pipeline Filter for Food&Beverage Industry



Quick Detail



Sanitary filter/Strainer, Food grade Filter, Juice Filter

1. Materials: SUS304/SUS316L, 1.4301/1.4404, AISI304/AISI316L

2. Size:1"-4"

3. Screen:30-300meshes

4. Screen Hole:0.5mm-2mm

5. Surface: Inside RA≤0.8um,Outside: Mirror Polished

6. Working tempressure: -10℃ to 120 ℃(EPDM), +140℃ (SIP,30 Minites)

                                     14℉ to 248℉

7. Max pressure: 10Bar,145PIS

8. Connection: Clamped, Welded, Thread

9.Standard: DIN,3A, RJT,SMS,ISO,IDF

10. Gasket: EPDM ( FDA 177.2600)



Specification

Product Name:

304 sanitary Cylindric Angle Tank pipeline Filter for Food&Beverage Industry

Material:

AISI304, AISI316L

Size:

1-4"

Finish:

Ra ≤0.8um,Mirror, 320Grit, 180Grit, 240Grit

Connection:

Welded, Threaded, Clamped

Standard:

DIN,3A,SMS,ISO

Certificate:

CE, ISO9001/2008, 3A

Application scope:

Dairy, food, beer, beverage, pharmacy, cosmetic,Oil,Waste water etc

Packaging Details:

Shrink wrapped - carton - pallet . Or as per the request of customers



Operating Principles:

The Filter consists of inlet and outlet housing, inner screen mesh to filter the particulates and impurities which can't pass the mesh


Feature:

Sanitary Filters provide reliable means of removing fine particles from liquids; filtering media must be removed and disposed periodically. Strainers, on the other hand, actually are coarse filters that remove larger particles; the straining mesh can be reused after cleaning. An inline sanitary filter that filters down to 0.023 micron with a 99.99% efficiency. Use it anywhere you need to keep something sanitary.



Advantage:

hygiene level filter sleeve unique structure, make each sleeve no dead Angle, both internal and external surface can be completely unpick and wash, easy to operate.



Mesh Selection Table

Metal Mesh



Mesh B(MM) Useful Surface(%)
30 0.55 48
40 0.4 46
60 0.3 52.6
80 0.2 42
100 0.15 36.2
165 0.1 45.4



Perforate Plate



A(MM) Useful Surface(%)
0.5 15
1 28
1.5 33
2 30
3 33
5 46

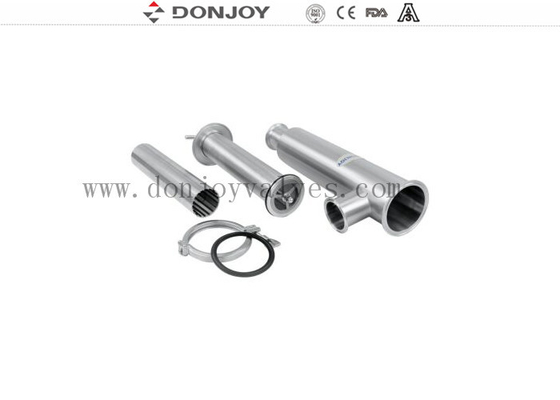

304 Sanitary Cylindric Angle Tank Pipeline Filter For Food & Beverage Industry 0

Draing of Filter

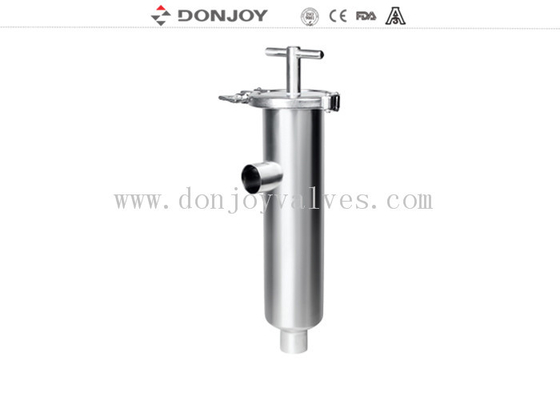

304 Sanitary Cylindric Angle Tank Pipeline Filter For Food & Beverage Industry 1



Packing details:
Each with wrap then put in caton. If shipped by sea will packed in the wooden case

Shipping details:

Uaually within 7 days after receiving T/T down payment



Term of conditions: EXW PRICE, FOB, CIF....
