3a Stainless Steel Tri Clover Inline Sanitary Filter - 1.5" Tc

3a Stainless Steel Tri Clover Inline Sanitary Filter - 1.5" Tc

    • 3a Stainless Steel Tri Clover Inline Sanitary Filter - 1.5" Tc
    • 3a Stainless Steel Tri Clover Inline Sanitary Filter - 1.5" Tc
  • 3a Stainless Steel Tri Clover Inline Sanitary Filter - 1.5" Tc

    Product Details:

    Place of Origin: CHINA
    Brand Name: DONJOY
    Certification: CE/FDA/ISO/3A
    Model Number: NO.EGL110

    Payment & Shipping Terms:

    Minimum Order Quantity: 1
    Price: Negotiation
    Packaging Details: Carton, Wooden Case
    Payment Terms: T/T,L/C, Credit Card
    Contact Now
    Detailed Product Description
    Brand: DONJOY SIZE: 1"-4"
    Stanadard: DIN,3A,SMS,ISO Gasket: EPDM
    Polished: Mirror Fiter Function:: Water
    HS Code: 8421299090 Nominal Pressure: 10bar
    High Light:

    Tri Clover Inline Sanitary Filter

    ,

    3a Stainless Steel Inline Sanitary Filter

    ,

    Mirror Polished Inline Sanitary Filter

    3A STAINLESS STEEL TRI-CLOVER INLINE SANITARY FILTER - 1.5" TC



    Quick Detail



    Sanitary filter/Strainer, Food grade Filter, Juice Filter

    1. Materials: SUS304/SUS316L, 1.4301/1.4404, AISI304/AISI316L

    2. Size:1"-4"

    3. Screen:30-300meshes

    4. Screen Hole:0.5mm-2mm

    5. Surface: Inside RA≤0.8um,Outside: Mirror Polished

    6. Working tempressure: -10℃ to 120 ℃(EPDM), +140℃ (SIP,30 Minites)

                                         14℉ to 248℉

    7. Max pressure: 10Bar,145PIS

    8. Connection: Clamped, Welded, Thread

    9. Standard: DIN,3A, RJT,SMS,ISO,IDF

    10. Gasket: EPDM ( FDA 177.2600)



    Specification

    Product Name:

    3A STAINLESS STEEL TRI-CLOVER INLINE SANITARY FILTER - 1.5" TC

    Material:

    AISI304, AISI316L

    Size:

    1-4"

    Finish:

    Ra ≤0.8um,Mirror, 320Grit, 180Grit, 240Grit

    Connection:

    Welded, Threaded, Clamped

    Standard:

    DIN,3A,SMS,ISO

    Certificate:

    CE, ISO9001/2008, 3A

    Application scope:

    Dairy, food, beer, beverage, pharmacy, cosmetic,Oil,Waste water etc

    Packaging Details:

    Shrink wrapped - carton - pallet . Or as per the request of customers



    Operating Principles:

    The Filter consists of inlet and outlet housing, inner screen mesh to filter the particulates and impurities which can't pass the mesh


    Feature:

    Sanitary Filters provide reliable means of removing fine particles from liquids; filtering media must be removed and disposed periodically. Strainers, on the other hand, actually are coarse filters that remove larger particles; the straining mesh can be reused after cleaning. An inline sanitary filter that filters down to 0.023 micron with a 99.99% efficiency. Use it anywhere you need to keep something sanitary.



    Advantage:

    hygiene level filter sleeve unique structure, make each sleeve no dead Angle, both internal and external surface can be completely unpick and wash, easy to operate.



    Mesh Selection Table

    Metal Mesh



    Mesh B(MM) Useful Surface(%)
    30 0.55 48
    40 0.4 46
    60 0.3 52.6
    80 0.2 42
    100 0.15 36.2
    165 0.1 45.4



    Perforate Plate



    A(MM) Useful Surface(%)
    0.5 15
    1 28
    1.5 33
    2 30
    3 33
    5 46

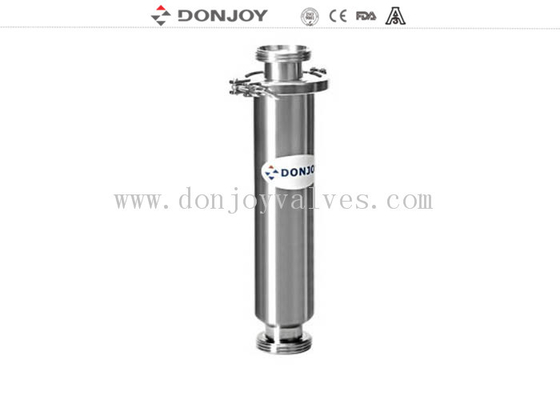

    3a Stainless Steel Tri Clover Inline Sanitary Filter - 1.5" Tc 0

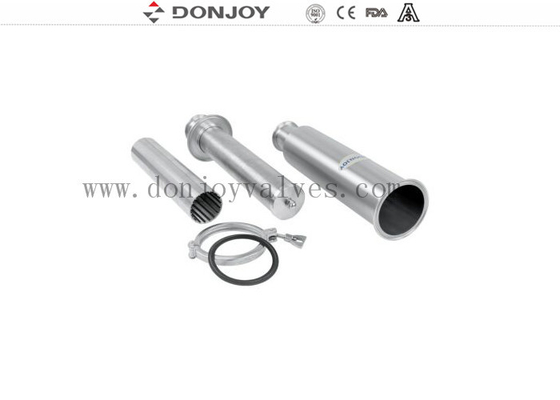

    Draing of Filter

    3a Stainless Steel Tri Clover Inline Sanitary Filter - 1.5" Tc 1

    Quality & Inspection:

    • PMI test to verify material grade
    • Dimension controlling during fabricating and finished
    • Visual and surface 100% examination before shipment
    • Third party inspection available



    Packing details:
    Each with wrap then put in caton. If shipped by sea will packed in the wooden case

    Shipping details:

    Uaually within 7 days after receiving T/T down payment



    Term of conditions: EXW PRICE, FOB, CIF....



    Tag : Strainer, Filter, Donjoy Sanitary fitler
