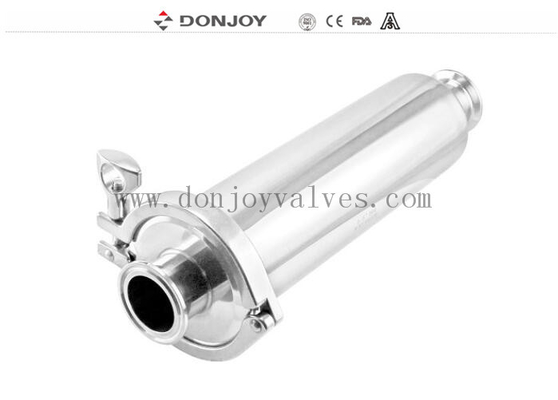

Donjoy Inline Strainer Sanitary Filter Ss304 1.5" Tri Clamp Inline Sanitary Beer Filter

Donjoy Inline Strainer Sanitary Filter Ss304 1.5" Tri Clamp Inline Sanitary Beer Filter

Inline Strainer Sanitary Filter

Ss304 Sanitary Filter

10bar Tri Clamp Sanitary Filter

Place of Origin:

CHINA

Brand Name:

DONJOY

Certification:

CE/FDA/ISO/3A

Model Number:

NO.EGL110

Contact Us

Request A Quote
Product Details
Brand:
DONJOY
SIZE:
1"-4"
Stanadard:
DIN,3A,SMS,ISO
Gasket:
EPDM
Polished:
Mirror
Fiter Function::
Water
HS Code:
8421299090
Nominal Pressure:
10bar
Payment & Shipping Terms
Minimum Order Quantity
1
Price
Negotiation
Packaging Details
Carton, Wooden Case
Payment Terms
T/T,L/C, Credit Card
Product Description

DONJOY Inline Strainer Sanitary Filter Ss304 1.5"tri Clamp inline Sanitary Beerfilter

Quick Detail



Sanitary filter/Strainer, Food grade Filter, Juice Filter

1. Materials: SUS304/SUS316L, 1.4301/1.4404, AISI304/AISI316L

2. Size:1"-4"

3. Screen:30-300meshes

4. Screen Hole:0.5mm-2mm

5. Surface: Inside RA≤0.8um,Outside: Mirror Polished

6. Working tempressure: -10℃ to 120 ℃(EPDM), +140℃ (SIP,30 Minites)

                                     14℉ to 248℉

7. Max pressure: 10Bar,145PIS

8. Connection: Clamped, Welded, Thread

9. Standard: DIN,3A, RJT,SMS,ISO,IDF

10. Gasket: EPDM ( FDA 177.2600)



Specification

Product Name:

DONJOY Inline Strainer Sanitary Filter Ss304 1.5"tri Clamp inline Sanitary Beerfilter

Material:

AISI304, AISI316L

Size:

1-4"

Finish:

Ra ≤0.8um,Mirror, 320Grit, 180Grit, 240Grit

Connection:

Welded, Threaded, Clamped

Standard:

DIN,3A,SMS,ISO

Certificate:

CE, ISO9001/2008, 3A

Application scope:

Dairy, food, beer, beverage, pharmacy, cosmetic,Oil,Waste water etc

Packaging Details:

Shrink wrapped - carton - pallet . Or as per the request of customers



Operating Principles:

The Filter consists of inlet and outlet housing, inner screen mesh to filter the particulates and impurities which can't pass the mesh


Features & Details:


[FOOD GRADE MATERIALS] - Made of 304 /316L stainless steel that is resistant to pollution and corrosion.
[HIGH FILTRATION CAPACITY] - The fine 100 mesh is designed to be porous enough to not block but still retain large solids.
[COMPACT STRUCTURE] - Composed of housing, filter tube with 100 mesh filter screen, tri-clamp, and sanitary gasket. As the fluid flows through the inline hydraulic filter element, impurities are blocked and cleaned.
[EASY TO DISASSEMBLE AND CLEAN] - The screen can be removed from the filter outlet for quick cleaning.
[WIDE APPLICATION] - Suitable for food, pharmaceutical, sanitary and industrial applications



Advantage:

hygiene level filter sleeve unique structure, make each sleeve no dead Angle, both internal and external surface can be completely unpick and wash, easy to operate.



Mesh Selection Table

Metal Mesh



Mesh B(MM) Useful Surface(%)
30 0.55 48
40 0.4 46
60 0.3 52.6
80 0.2 42
100 0.15 36.2
165 0.1 45.4



Perforate Plate



A(MM) Useful Surface(%)
0.5 15
1 28
1.5 33
2 30
3 33
5 46

Donjoy Inline Strainer Sanitary Filter Ss304 1.5" Tri Clamp Inline Sanitary Beer Filter 0

Draing of Filter

Donjoy Inline Strainer Sanitary Filter Ss304 1.5" Tri Clamp Inline Sanitary Beer Filter 1

Quality & Inspection:

  • PMI test to verify material grade
  • Dimension controlling during fabricating and finished
  • Visual and surface 100% examination before shipment
  • Third party inspection available



Packing details:
Each with wrap then put in caton. If shipped by sea will packed in the wooden case

Shipping details:

Uaually within 7 days after receiving T/T down payment



Term of conditions: EXW PRICE, FOB, CIF....
