Place of Origin:
CHINA
Brand Name:
DONJOY
Certification:
CE/FDA/ISO/3A
Model Number:
NO.EGL110
Contact Us
Quick Detail
Sanitary filter/Strainer, Food grade Filter, Juice Filter
1. Materials: SUS304/SUS316L, 1.4301/1.4404, AISI304/AISI316L
2. Size:1"-4"
3. Screen:30-300meshes
4. Screen Hole:0.5mm-2mm
5. Surface: Inside RA≤0.8um,Outside: Mirror Polished
6. Working tempressure: -10℃ to 120 ℃(EPDM), +140℃ (SIP,30 Minites)
14℉ to 248℉
7. Max pressure: 10Bar,145PIS
8. Connection: Clamped, Welded, Thread
9.Standard: DIN,3A, RJT,SMS,ISO,IDF
10. Gasket: EPDM ( FDA 177.2600)
Specification
|
Product Name: |
DONJOY 100 Mesh Stainless Steel Sanitary Strainer 2'' Filter Straight Type Quick Ship |
|
Material: |
AISI304, AISI316L |
|
Size: |
1-4" |
|
Finish: |
Ra ≤0.8um,Mirror, 320Grit, 180Grit, 240Grit |
|
Connection: |
Welded, Threaded, Clamped |
|
Standard: |
DIN,3A,SMS,ISO |
|
Certificate: |
CE, ISO9001/2008, 3A |
|
Application scope: |
Dairy, food, beer, beverage, pharmacy, cosmetic,Oil,Waste water etc |
|
Packaging Details: |
Shrink wrapped - carton - pallet . Or as per the request of customers |
Operating Principles:
Features & Details:
[FOOD GRADE MATERIALS] - Made of 304 /316L stainless steel that is resistant to pollution and corrosion.
[HIGH FILTRATION CAPACITY] - The fine 100 mesh is designed to be porous enough to not block but still retain large solids.

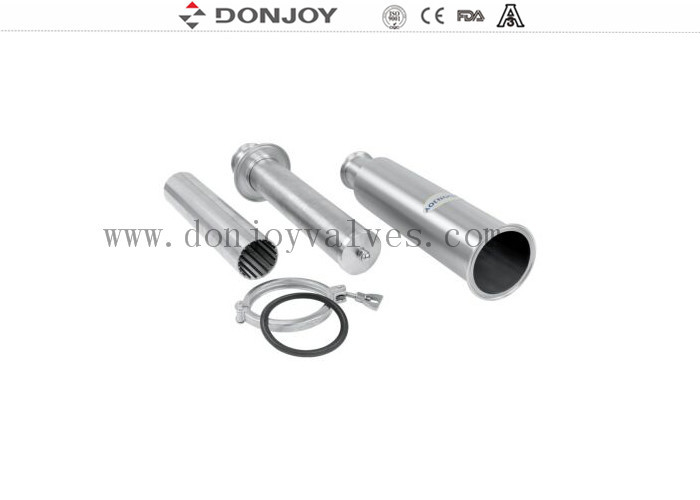

[COMPACT STRUCTURE] - Composed of housing, filter tube with 100 mesh filter screen, tri-clamp, and sanitary gasket. As the fluid flows through the inline hydraulic filter element, impurities are blocked and cleaned.
[EASY TO DISASSEMBLE AND CLEAN] - The screen can be removed from the filter outlet for quick cleaning.
[WIDE APPLICATION] - Suitable for food, pharmaceutical, sanitary and industrial applications

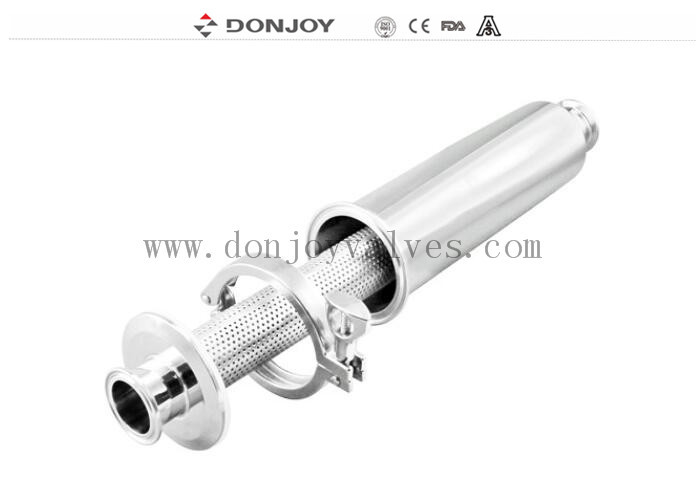

Stainless Steel Body
The housing, filter tube with 100 mesh filter screen, and tri-clamp are made of corrosion-resistant stainless steel, so it is durable. Both the inner and outer surfaces are polished to achieve a mirror finish, maintaining professionalism, and maintaining appearance
100 Mesh Stainless Steel Screen
The 100 mesh screen is resistant to high temperatures and corrosion. It's porous enough not to clog but still retain larger solids. When the fluid flows in the right direction, it will apply pressure to the screen, pushing it towards the interior perf screen that provides support and reducing pressure loss.
Mesh Selection Table
Metal Mesh
| Mesh | B(MM) | Useful Surface(%) |
| 30 | 0.55 | 48 |
| 40 | 0.4 | 46 |
| 60 | 0.3 | 52.6 |
| 80 | 0.2 | 42 |
| 100 | 0.15 | 36.2 |
| 165 | 0.1 | 45.4 |
Perforate Plate
| A(MM) | Useful Surface(%) |
| 0.5 | 15 |
| 1 | 28 |
| 1.5 | 33 |
| 2 | 30 |
| 3 | 33 |
| 5 | 46 |
Draing of Filter
Packing details:
Each with wrap then put in caton. If shipped by sea will packed in the wooden case
Shipping details:
Uaually within 7 days after receiving T/T down payment
Term of conditions: EXW PRICE, FOB, CIF....
Tag : Strainer, Filter, Donjoy Sanitary fitler
