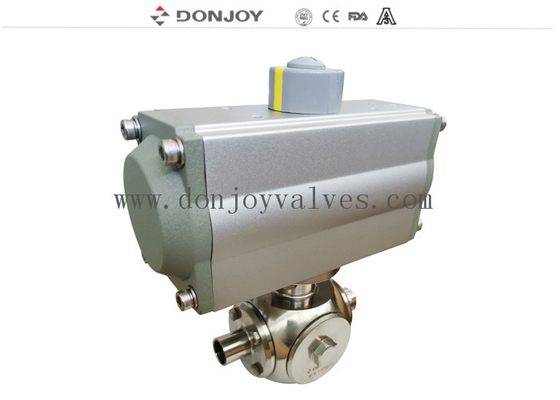

SS304 3 Way Sanitary Ball Valve With Horizontal Aluminum Actuator

SS304 3 Way Sanitary Ball Valve With Horizontal Aluminum Actuator

  • SS304 3 Way Sanitary Ball Valve With Horizontal Aluminum Actuator
SS304 3 Way Sanitary Ball Valve With Horizontal Aluminum Actuator
Product Details:
Place of Origin: CHINA
Brand Name: DONJOY
Certification: CE,3A,FDA
Model Number: NO.VQD100Q2
Payment & Shipping Terms:
Minimum Order Quantity: 1
Packaging Details: carton box
Payment Terms: T/T, LC, Credit Card
Contact Now
Detailed Product Description
Product Name: Ball Valve Size Of Panel: DN10-DN20 ,1/2"-3/4"
Operation: Pneumatic, Manual,electric Modes Material: Ss 304/316L
Connection: Welded, Clamped, Thread Etc Ball: T Port, L Port
Country Of Original: China
High Light:

SS304 3 Way Sanitary Ball Valve

,

DN20 Sanitary Ball Valve

,

Aluminum Actuator Sanitary Ball Valve

3A mini Type 3 way ball valve with Horizontal Aluminum actuator



Detail:

Manual Ball Valve, Pneumatica  ball valve, C-top Pneumatica ball valve,Electrc ball valve, IL-Top type Ball vale, Proportinonal control Ball valve, T type/ L type

Connection: Clamped, Thread, Welding etc

Certificate: PED, 97/23EC, 3A



Specification

Product Name: 3A mini Type 3 way ball valve with Horizontal Aluminum actuator
Valve Body Material: SS304 or SS316L
Seal Material: PTFE
Max. Working Pressure: 10Bar
Max. Working Temperature: 120 degree C
Availably size: DN10-DN20 or 1/2" - 3/4"
Availably connection: Weld,Clamp,Thread
Ball
Tport , L port
Operated: Manual,Pneumatic,Electric,control Head
Certificate: PED, 97/23EC



Applications:

The hygienic design of the valve is widely used in the field of food processing, beverage, fruit juices, wine, biopharmaceutical and very flexible body combinations for example, L-Port or T-Port can be interchangeable on-site inlet, outlet to be any combination of change can guarantee dead angle, no retention.

SS304 3 Way Sanitary Ball Valve With Horizontal Aluminum Actuator 0

Design and Features

Free of maintenances

Compact and portable

Small operating torque

Gasket complies with PTFE FDA 177.2600

Hand lever can be installed on the side of valve body, no matter of the flow direction.

Connection ends: thread, clamp, weld, flange, DIN, SMS,RJT,FIL

It can be installed with pneumatic and electric actuators.

The part contacted with media is AISI 304/316L

Other parts AISI 304

Certifications: PED, 97/23EC



Drawing



SS304 3 Way Sanitary Ball Valve With Horizontal Aluminum Actuator 1

SS304 3 Way Sanitary Ball Valve With Horizontal Aluminum Actuator 2

SS304 3 Way Sanitary Ball Valve With Horizontal Aluminum Actuator 3

Relative products

SS304 3 Way Sanitary Ball Valve With Horizontal Aluminum Actuator 4



Competitive Advantage:

Donjoy With advanced technology, excellent quality and perfect after-sales service system, has been assessed for the national high-tech enterprises, the Provincial Famous Trademark, the Trovincial Science and Ttechnology Enterprises, Innovative Enterprises, Patent Model Enterprises, R & D Center, AAA Credit Enterprises.

“DONJOY is the only company that pass nine series of products by American 3A certification organization in Asian sanitary pumps and valves field.”



Tag : donjoy valve, 3 way ball valve, Sanitary valves
