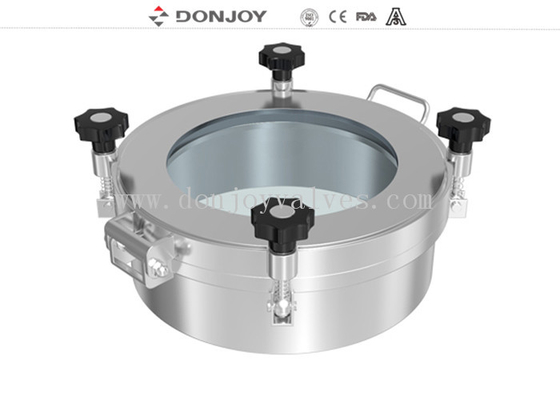

SS316L 500*100mm Glass Pressure Manhole Cover For Beverage Tank

SS316L 500*100mm Glass Pressure Manhole Cover For Beverage Tank

    • SS316L 500*100mm Glass Pressure Manhole Cover For Beverage Tank
    • SS316L 500*100mm Glass Pressure Manhole Cover For Beverage Tank
  • SS316L 500*100mm Glass Pressure Manhole Cover For Beverage Tank

    Product Details:

    Place of Origin: CHINA
    Brand Name: DONJOY
    Certification: CE/FDA/ISO/3A
    Model Number: NO.ERK131

    Payment & Shipping Terms:

    Minimum Order Quantity: 1
    Price: Negotiation
    Packaging Details: Carton, Wooden Case
    Payment Terms: T/T,L/C, Credit Card
    Contact Now
    Detailed Product Description
    Brand: DONJOY SIZE: 200MM-600MM
    Hnadle: Plastic Wheel, Stainless Steel Wheel Connection: Weled, Flange
    Polished: Mirror, Matt Materials: 1.4301/1.4404, SUS304/SUS316L
    High Light:

    SS316L Tank Manhole Cover

    ,

    Beverage Tank Manhole Cover

    ,

    200MM Tank Manhole Cover

    SS316L 500*100mm Glass pressure manhole cover For beverage Tank

    Tag:
    Stainless steel oval flange quick open manhole,
    Top quality stainless steel pressured manway cover

    Quick Detail
    Sight Glass Mixing Tank Manhole Cover, Food grad Tank Manway.
    Size: 200mm,220mm,300mm,350mm,400mm,430mm,450mm,500mm,600mm or  customized
    Type: Glass Type
    Handle: Plastic, Stainless Steel
    Materials: 1.4301/1.4404, SUS304/SUS316L,AISI304 , AISI316L

    Specification

    Product Name:

    500*100mm SS316L Round pressure manhole with Glass for beverage tank

    Material:

    AISI304, AISI316L

    Size:

    200-600

    Finish:

    Ra ≤0.8um,Mirror, 320Grit, 180Grit, 240Grit

    Connection:

    Welded, Flange

    Standard:

    DIN,3A,SMS,ISO

    Certificate:

    CE, ISO9001/2008, 3A

    Application scope:

    Dairy, food, beer, beverage, pharmacy, cosmetic,Oil,Waste water etc

    Packaging Details:

    Shrink wrapped - carton - pallet . Or as per the request of customers


    Technical Features:
    Gasket: EPDM,NBR,SILICONE
    Height:100mm,12mm,150mm or customized
    Working Pressure:2-5Bar
    Polished: Mirror, Mattr, Ra≤0.8μm,Ra≤0.5μm, 180Grit, 240Grit, 320Grit


    Appication:
    Foor dairy , food , chemical ,beverage ,pharmaceuticals ,water treatment ,beer etc .It is used as cap on the top of the vessel ,tank etc.

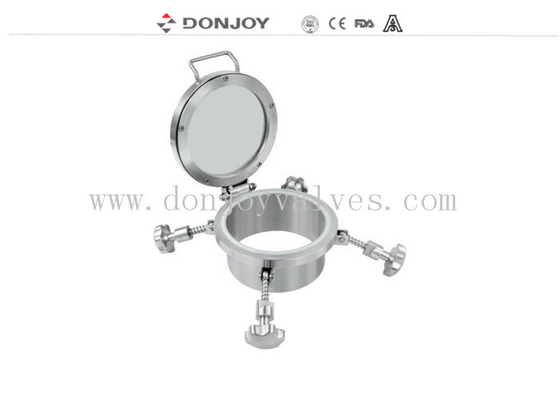

    Product drawing

    SS316L 500*100mm Glass Pressure Manhole Cover For Beverage Tank 0


    FAQ:
    Q1: Can you do as specifize size and print own logo on it ?
    R.E : Yes, We support specifications cutomize and personalized customization
    Q2: What about the delivery time of the manhole cover
    R.E: Normally Takes about 7-10 days
    Q3:How about the Surface
    R.E: Our standard with mirror inside and outmatt side.If your have requirement in Ra,please let me know it.
    Q4: Can we got one pcs for Samples
    R.E: Yes, Of course
    Q5: How about the pressure
    R.E: Our standard with 2-5 Bar, if you need 10Bar, please inform us we can according your reqruriement to customized.
