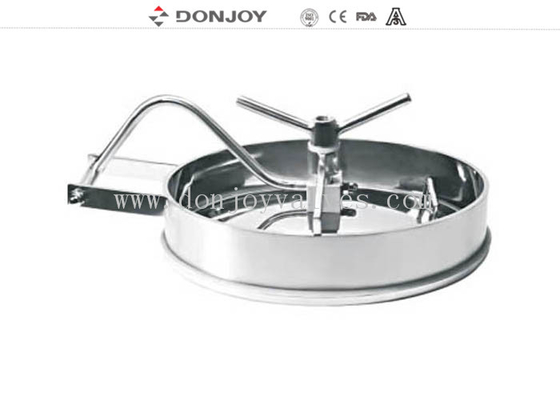

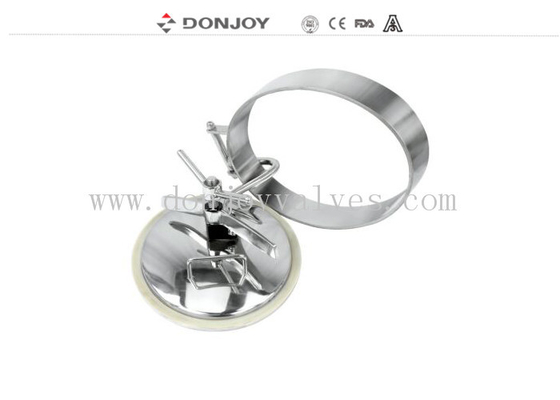

Ss316 Elliptical Inward Opening Pressure Tank Manhole Cover 435×335mm

Ss316 Elliptical Inward Opening Pressure Tank Manhole Cover 435×335mm

  • Ss316 Elliptical Inward Opening Pressure Tank Manhole Cover 435×335mm
  • Ss316 Elliptical Inward Opening Pressure Tank Manhole Cover 435×335mm
Ss316 Elliptical Inward Opening Pressure Tank Manhole Cover 435×335mm
Product Details:
Place of Origin: CHINA
Brand Name: DONJOY
Certification: CE/FDA/ISO/3A
Model Number: NO.ERK311
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiation
Packaging Details: Carton, Wooden Case
Delivery Time: 5-30 working days
Payment Terms: T/T,L/C, Credit Card
Supply Ability: 100pcs/Day
Contact Now
Detailed Product Description
Brand: DONJOY Dimension: 435mm*335mm,530mm*430mm,535mm*435mm,635mm*525mm,
Stanadard: DIN,3A,SMS,ISO Connection: Weled
Polished: Mirror, Matt Height: 75-80mm,90-100mm,80-90mm,100-120mm,130-160mm
High Light:

Ss316 Elliptical Tank Manhole Cover

,

Inward Opening Tank Manhole Cover

,

Height 80mm Tank Manhole Cover

Ss316 Elliptical Inward opening Pressure Tank Manhole Cover 435×335mm


Quick Detail
Manhole Cover,Elliptical Manway
Demission:435mm*335mm,530mm*430mm,535mm*435mm,635mm*525mm
Height:75-80mm,90-100mm,80-90mm,100-120mm,130-160mm
Type: Elliptical man hole cover
Handle: Stainless Steel wheel



Specifications

Product Name:

Tank elliptical pressure manway

Material:

AISI304, AISI316L

Size:

435mm*335mm,530mm*430mm,535mm*435mm,635mm*525mm

Finish:

Ra ≤0.8um,Mirror, 320Grit, 180Grit, 240Grit

Connection:

Welded

Standard:

DIN,3A,SMS,ISO

Certificate:

CE, ISO9001/2008, 3A

Application scope:

Dairy, food, beer, beverage, pharmacy, cosmetic,Oil,Waste

water etc

Packaging Details:

Shrink wrapped - carton - pallet . Or as per the request of customers



Drawing

Ss316 Elliptical Inward Opening Pressure Tank Manhole Cover 435×335mm 0

Size H L1 L2 T
435*335 75 435 335 8
530*430 100 530 430 10
635*525 160 635

525

10

Unit: mm



Size Tolerance
200-350 ±1.2
400-600 ±2

Unit :mm


Technical Information:
Gasket: EPDM,NBR,SILICONE,FPM in accordance with FDA177.1600
Working Pressure:2-5Bar
Fineness: inner and outer fineness of mirror Ra≤0.8μm, inner and outer mechanical polish and electrical polish Ra 0.2μm, the external surface can be gross polished or sub-gross polished.
Application:dairy , food , chemical ,beverage ,pharmaceuticals ,water treatment ,beer etc .It is used as cap on the top of the vessel,tank etc



Manhole cover optional

1.Non-pressure round manway

2.Round pressure manway

3.Square manway

4.Elliptical manhole cover

5.High pressure manhole cover

6.Pressure manhole cover with sight glass

7.Glass pressure manway

8.Mini type square manway


Question:
1. What about the delivery time of the manhole cover
Answer: Normally Takes about 7-10 days
2.How about the Surface
Answer: Our standard with mirror inside and outside satin polish side.If you have requirements in Ra,please let me know it.
3. The height of the square Manhole:
Answer: Our standard with 65mm Height, 8mm thickness. Or if you have requirements, we also can be according it to custom.
4.Can you do as a specific size and print our logo on it?
Answer: Yes, We support specifications customize and personalized customization If you need more information or catalogs,please contact us freely.


Tag: pressure manhole cover. 5Bar pressure manway, 3Bar pressure tank cover

Ss316 Elliptical Inward Opening Pressure Tank Manhole Cover 435×335mm 1
