| Place of Origin: | CHINA |
| Brand Name: | DONJOY |
| Certification: | CE/FDA/ISO/3A |
| Model Number: | NO.VQY100S1 |
| Minimum Order Quantity: | 1 |
|---|---|
| Packaging Details: | WOODEN CASE, CARTONS |
| Payment Terms: | T/T,L/C, Credit Card |
| Brand: | DONJOY | SIZE: | 12.7mm,1/2"mm |
|---|---|---|---|
| Stanadard: | DIN,3A,SMS,ISO | Connection: | Welded, Clamped,Thread |
| Polished: | Mirror, Matt | Operation: | Automatic Return Type |
| High Light: | 316l Aseptic Sampling Valve,Welded Thread Aseptic Sampling Valve,EPDM Gasket Aseptic Sampling Valve |
||

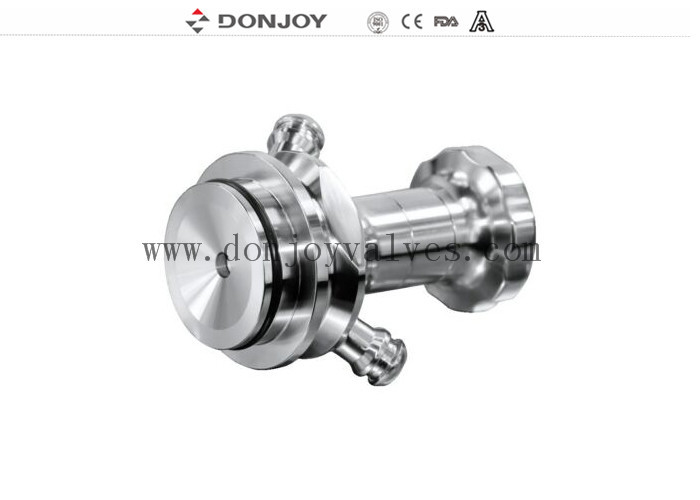

Stainless Steel Aseptic sampling valve
Quick Detail
Sampling Valve
Size:12.7mm,1/2",3/8",1/2",3/4"
Type: Automatic return type (Manual)
Gasket: EPDM,PTFE
Working Pressure:6Bar
Temperature: 130 Degree(EPDM) 150Degree(PTFE)
Polished: Mirror, Mattr, Ra≤0.8μm,Ra≤0.5μm
Connection: Thread, clamp, Weld, Tank welding
Certificate: PED97/23/EC,FDA 177.2600
Specification
|
Product Name: |
Stainless Steel regulating head for Aseptic sampling valve |
|
Material: |
AISI316L |
|
Size: |
1/2" |
|
Finish: |
Ra ≤0.8um,Mirror, 320Grit, 180Grit, 240Grit |
|
Connection: |
Welded,Clamped |
|
Standard: |
DIN,3A,SMS,ISO |
|
Certificate: |
CE, ISO9001/2008, 3A |
|
Application scope: |
Dairy, food, beer, beverage, pharmacy, cosmetic,Oil,Waste water etc |
|
Packaging Details: |
Shrink wrapped - carton - pallet . Or as per the request of customers |
Drawing
Application :
The aseptic sampling valve is applied to beer, milk, beverage, fruit juice, pahmacy industries etc...
Relate products

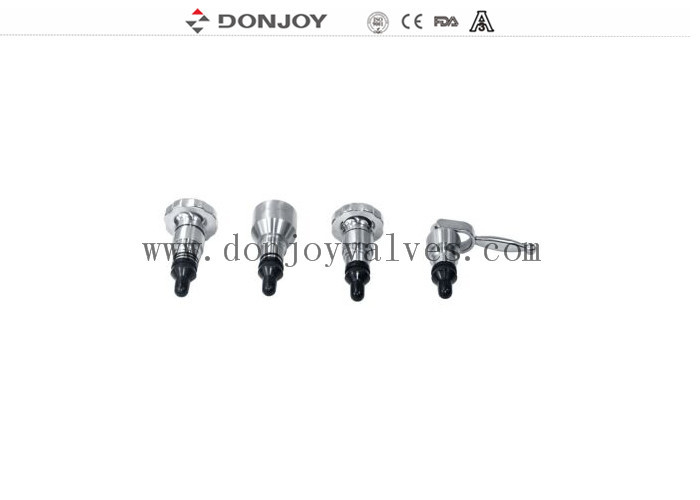

Valve body with various configurations
