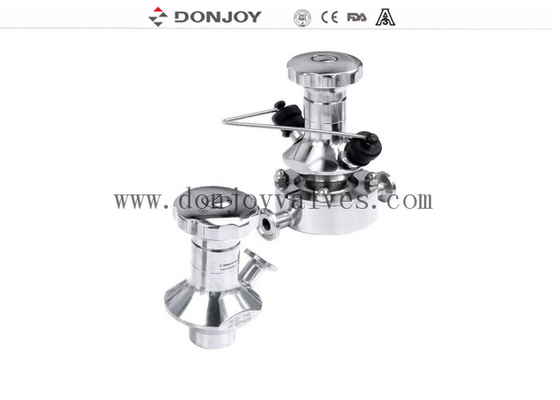

Donjoy Aseptic Samping Valve With Pipeline Connector For Tank

Donjoy Aseptic Samping Valve With Pipeline Connector For Tank

    • Donjoy Aseptic Samping Valve With Pipeline Connector For Tank
    • Donjoy Aseptic Samping Valve With Pipeline Connector For Tank
  • Donjoy Aseptic Samping Valve With Pipeline Connector For Tank

    Product Details:

    Place of Origin: CHINA
    Brand Name: DONJOY
    Certification: CE/FDA/ISO/3A
    Model Number: ASEPTIC TYPE

    Payment & Shipping Terms:

    Minimum Order Quantity: 1
    Packaging Details: WOODEN CASE, CARTONS
    Payment Terms: T/T,L/C, Credit Card
    Contact Now
    Detailed Product Description
    Brand: DONJOY SIZE: 1"-2"
    Stanadard: DIN,3A,SMS,ISO Connection: Weled, Flange
    Polished: Mirror, Matt Pressure: 6 Bar
    High Light:

    Donjoy Aseptic Sample Valve

    ,

    Pipeline Tank Aseptic Sample Valve

    ,

    AISI316L Aseptic Sample Valve

    DONJOY ASEPTIC SAMPING VALVE WITH PIPELINE CONNECTOR FOR TANK



    Specification

    Product Name:

    DONJOY ASEPTIC SAMPING VALVE WITH PIPELINE CONNECTOR FOR TANK

    Material:

    AISI304, AISI316L

    Size:

    1"-2"

    Finish:

    Ra ≤0.8um,Mirror, 320Grit, 180Grit, 240Grit

    Connection:

    Welded, Flange

    Standard:

    DIN,3A,SMS,ISO

    Certificate:

    CE, ISO9001/2008, 3A

    Application scope:

    Dairy, food, beer, beverage, pharmacy, cosmetic,Oil,Waste water etc

    Packaging Details:

    Shrink wrapped - carton - pallet . Or as per the request of customers



    Introduction



    The aseptic sampling valve is designed for sterilization  before and after each sampling.

    Open  :Sampling-the manual valve is opened by rotating the handle (adjustable value) or by activating the lever (on/off  valve), the stem and the membrance are then retracted, allow liquid to pass.

    Closed: Sterilizing-the built-in spring closes the valve  and keeps the channel open between the hoses though reverse process in order to sterilize.If using by steam, a small pressure relief valve (optional) on the outlet is recommended.

    Standard design: the aseptic  sampling valve consists of three parts, a valve body, a handle and a membarnce, the rubber.

    Handle:(1) Turning handle   (2) removable key

    Application: The aseptic sampling valva is applied to beer,milk, beverage, fruit juice, pharmacy industries .



    Working principles

    Donjoy Aseptic Samping Valve With Pipeline Connector For Tank 0



    Relate products

    Donjoy Aseptic Samping Valve With Pipeline Connector For Tank 1

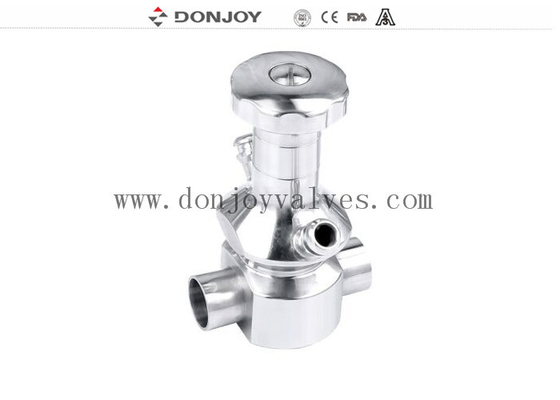

    Valve body with various configurations:

    Donjoy Aseptic Samping Valve With Pipeline Connector For Tank 2
