DN100 316L Stainless Steel Mixproof Valve with PED Pressure Test and Double Seat Design

Large Image : DN100 316L Stainless Steel Mixproof Valve with PED Pressure Test and Double Seat Design

Product Details:

Place of Origin:	CHINA
Brand Name:	DONJOY
Certification:	CE,3A,FDA
Model Number:	NO.VFT101Q1-222-90

Payment & Shipping Terms:

Minimum Order Quantity:	Negotiation
Price:	Negotiation
Packaging Details:	carton box
Delivery Time:	according to order
Payment Terms:	T/T,LC,Credit Card
Supply Ability:	1000 Piece/Pieces per Month

Contact Now

Detailed Product Description

Operation:	Pneumatic	Size:	DN40 - DN100 Or 1.5" - 4"
Type:	IS-C Series	Body Conbination:	T-222
Gasket:	EPDM/ VITION/NBR	Material:	316L
Connection:	Flange Connection	Pressure Test:	PED
Highlight:	DN40 Reversing Single Seat Valve , 304 Reversing Single Seat Valve , Pneumatic Divert Single Seat Valve

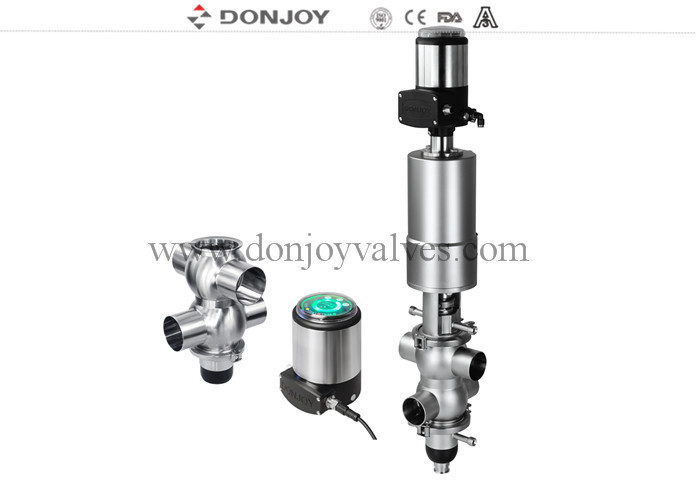

DN100 Donjoy Double Seat Mix Proof Valve with T-22-90

Product Description

The DN100 Donjoy double seat mix proof valve with T-22-90 is a high-performance valve designed for demanding industrial applications, particularly in hygienic processing environments.

Specifications

Feature	Details
Product wetted parts	AISI 316L
Other stainless steel parts	AISI 304
Seat Material (Default)	EPDM, FDA177.2600
Seat Material (Option)	FPM (Viton), FDA177.2600
End Connections	Butt-welded, tri-clamp, Flange
Max. Working Pressure	145psi (10bar)
Min. working pressure	Absolute vacuum
Working Temperature	14°F to 266°F (-10 to 130°C), 284°F (140°C) for short time sterilisation
Internal Finish	Ra 32μin (0.8μm) as default, Ra 16μin (0.4μm) as best
External Finish	Sandblast, or others upon request
Pneumatic Actuator Types	Normally Closed (NC) - Air to open and spring to close Normally Open (NO) - Air to close and spring to open Air to Air (AA) - Air to open, air to close
Actuator air pressure	79-102 psi (5.5 bar-7 bar)
Units for intelligent control and indication	C-top control IL-top control (Positioner) Electric connection AS-I bus connection

Applications

Widely used in fluid processing technology, especially in beverage and dairy industry applications
High degree of double-seal valve prevents contamination between two fluids
Leakage chamber and leak detector are self-cleaning by valve seat

Operating Principles

Lift type mixing proof valve is remotely operated by compressed air (normally closed before running)
Constructed with two independent plugs forming a leakage chamber to atmosphere
Leakage chamber closes during operation, allowing medium flow between pipelines
Clean-in-place (CIP) system cleans upper/lower stems and leakage chamber for high hygiene
Effective cleaning system allows direct washing of all internal valve body components
Can be applied to aseptic processing with steam in CIP pipeline creating an air isolation shield

Product Drawings
