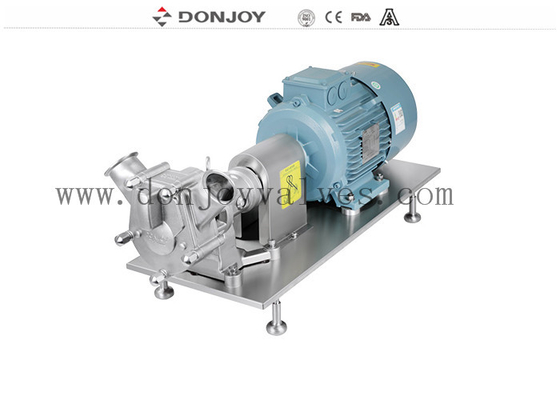

Sanitary Sine pump with motor connect directly for higher viscoisty products
●Ultra-low shear conveying to effectively ensure media integrity
●High suction capacity, inlet negative pressure can reach -0.85bar
●Low-pulse conveying can effectively prevent pipeline vibration,make the medium convey smoothly and quickly, and also increase the measurement accuracy
●The conveying process is gentle, and it is not easy to generate air bubbles
●Simple and fast maintenance
●All medium contacting parts comply with FDA and EC1935 standards
●Wide range of medium viscosity, 1cp to 8,000,000cps
||High Purity Pumps
|Materials of Construction
||316L SS, PTFE, PFA, PVDF
||Up To 15BAR
|Bare Shaft Sine Pump
PZX Sine Pump
DONJOY Sine Pump- Liquid Handling Equipment with bidirectional reversible operation, food-grade stainless steel design, gentle pumping for transferring high and low-viscosity media, no damage and no pulse during transfer, clean, efficient, durable, safe, and low-cost solutions.
Sine pump design
A sinusoidal pump is a type of pump featuring a sine wave-shaped rotor that creates four moving chambers, which gently convey the duty fluid from the inlet port to the higher pressure discharge port. A sine pump is a new type of positive displacement pump, which has the characteristics of a more compact structure, higher conveying efficiency, and wider viscosity range of applicable conveying medium. Can be widely used in food, beverage, dairy, chemical, pharmaceutical and other industries.
DONJOY PZX Sine Pump Configuration
DONJOY provide the below various configurations.
Sine Pump Beverage industry pump with Reducer Gearbox & Motor
1) Variable–frequency motor, speed could be adjusted by frequency converter(VFD), the adjustable range is big 10-90hz. Must need an additional frequency converter, otherwise, the speed couldn’t be adjusted.
2) Fixed speed reducer and motor, it also can be adjusted by frequency converter(VFD), the default output speed is around 300rpm, but the adjustable range is small, 30-60hz.
3.) Mechanical stepless speed variator, it no need additional VFD to control speed.
4). Sine pump direct with motor
5). Sine pump direct with mobile cart
6). PZX Sine Pump with Control Box and Mobile Cart
PZX Sine Pump Curve
PZX sine pump selection table
Sine pump optional interface orientation
With "★" completely self-draining, the user can freely decide which connection method to use according to the working conditions, without the need for factory definition
Q1: What is DONJOY High Purity Pumps?
A1: DONJOY High Purity Pumps is a kind of PZX model pump from China. It is designed for high purity liquid transfer and handling.
Q2: What are the features of DONJOY High Purity Pumps?
A2: DONJOY High Purity Pumps are made of high quality materials and equipped with advanced technologies. It is designed for long-term operation with high efficiency and low noise.
Q3: How is DONJOY High Purity Pumps different from other pumps?
A3: DONJOY High Purity Pumps are designed with special materials for high purity liquid transfer and handling. It has a unique sealing structure and advanced technologies to ensure long-term operation with high efficiency and low noise.
Q4: What applications can DONJOY High Purity Pumps be used for?
A4: DONJOY High Purity Pumps are suitable for a wide range of applications including chemical industry, pharmaceutical industry, food industry and other high-purity liquid transfer and handling.
Q5: What after-sales service does DONJOY offer?
A5: DONJOY provides timely and professional after-sales service, including technical support, repair and maintenance, and spare parts supply.
