Place of Origin:
CHINA
Brand Name:
DONJOY
Certification:
CE,3A,FDA
Model Number:
NO.VFT101Q1
Contact Us

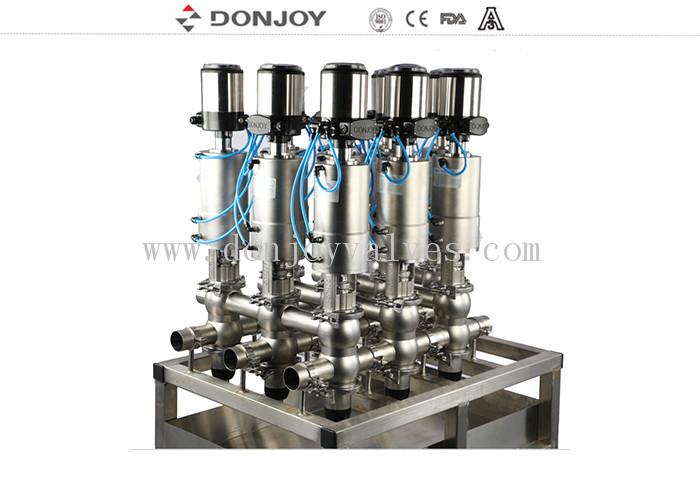

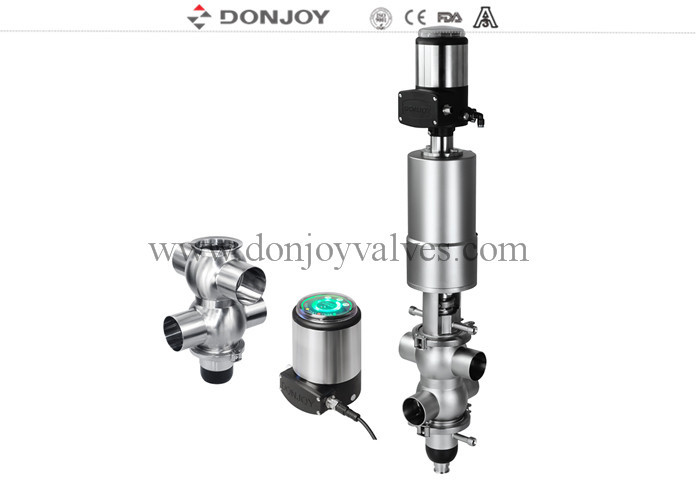

Donjoy Mixproof Double Seat Reversing Seat Valve with Intelligent Positioner
Specifications:
|
Product Name: |
Mixproof Double Seat Reversing Seat Valve with Intelligent Positioner |
|
Valve Body Material: |
|
|
Seal Material: |
EPDM / FPM / HNBR (Optional) |
|
Max. |
10Bar |
|
Max. |
130 degree C |
|
Availably size: |
DN40-DN150 or 1.5" - 6" |
|
Availably connection: |
CLAMP, DIN, SMS |
|
Air Operation: |
Can be configured to intelligent positioner / C-TOP controller |
|
Operate: |
Pneumatic |
|
Characteristic |
Prescise regulation |
|
Valve body |
Whole valve body or clamp valve body connection |
|
Basic cleaning |
Seat lift cleaning |
|
Pressure balance |
Upper stem blance / lower stem balance / upper and lower stem balance |
|
Certificate: |
FDA,CE |
|
External surface: |
CNC fine machining |
● Continuous production capabilities, CIP cleaning and liquid processing at the same time.
● leakage chamber and the leakage detector could be self-cleaned by lifting off the seat
● Two independent plug seals
● One-piece Body & Clamped Body for choose from
● A wide selection of different body combinations.
● Easy disassembly by releasing the clamp
● Cleaning/Sterilization Parts for Options
● Ease of maintenance and service
● 100% hydraulic tested / 100% inspected
● Lift type mixing proof valve is remotely operated by compressed air. It is normally closed before running.
● The mixing proof valve is constructed with two independent plugs, which will form a leakage chamber to atmosphere under normal working status. When occasional failure causes leakage happens, the medium will flow into the chamber and be discharged at the outlet port.
● The leakage chamber is closed when the valve is operating, the medium can flow through one pipeline to another. This valve can be clean in place. Many options of CIP and SIP combination are available to users. (Refer to cleaning sterilization function options)
● Clean system can clean the upper, lower stem and leakage chamber, which ensure the valve to be high hygienic. Effectively cleaning system makes the fluid that special for (CIP) clean in place directly wash all the inside calve body, it takes shorter time than common cleaning system.
● Another benefit of the high cleaning system is that the lift type mixing proof valve can be applied to aseptic processing. If user’s steam into CIP pipeline, the system will constitute a shield that can isolate air.
