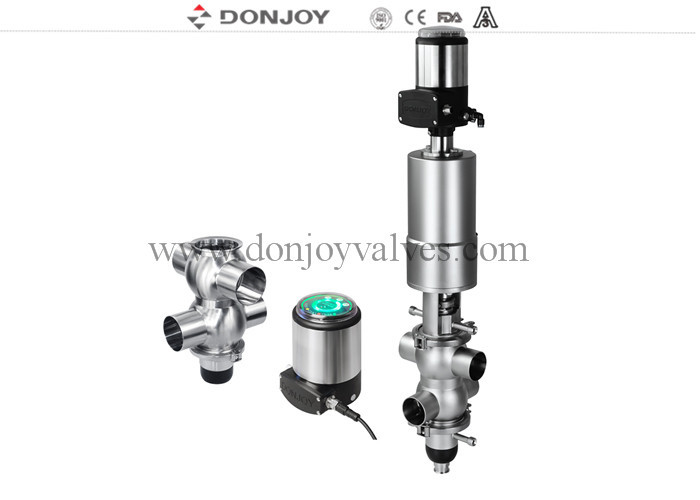

3A Hygienic Double Seat Mixing Proof Valve for Food Beverage Processing

3A Hygienic Double Seat Mixing Proof Valve for Food Beverage Processing

Double Seat Mixing Proof Valve

Food Beverage Mixing Proof Valve

3A Hygienic Mixing Proof Valve

Place of Origin:

CHINA

Brand Name:

DONJOY

Certification:

CE,3A,FDA

Contact Us

Request A Quote
Product Details
Product Name:
Mixproof Double Seat Regulating Valve With Intelligent Positioner
Size:
DN40 - DN150 Or 1.5" To 6"
Operation:
Pneumatic With Intelligent Positioner
Materail:
SS316L
Compressed Air Pressure:
5.5bar-7bar
Air Supply Connection:
R1/8''(BSP)
Gasket:
EPDM / HNBR / VITON
Feature:
Precise Control
Payment & Shipping Terms
Minimum Order Quantity
1
Price
USD1100-1500
Packaging Details
carton box
Payment Terms
T/T, LC, Credit Card
Product Description

3A Hygienic Double-Seat Mixing Proof Valve for Food Beverage Processing


Technical specification:
Size DN40-DN150 ,1.5"- 6"
Working temperature 14°F to 266°F (-10 to 130°C), 284°F (140°C) for short time sterilisation.
Max. Working Pressure 145psi (10bar)
Min. working pressure Absolute vacuum
Compressed air pressure 5.5 bar to 7 bar
Parts in contact with medium AISI 316L
Other stainless steel parts AISI 304
Internal surface finish Ra 32μin (0.8μm) as default, Ra 16μin (0.4μm) as best.
Seat Material EPDM, FDA177.2600 , (Default) FPM (Viton), FDA177.2600 (Option)
Pneumatic Actuator Types Normally Closed (NC) - Air to open and spring to close;
Normally Open (NO) - Air to close and spring to open;
Air to Air (AA) - Air to open, air to close.
Actuator air pressure 79-102 psi (5.5 bar-7 bar)
Units for intelligent control and indication C-top control
IL-top control (Positioner)
Electric connection
AS-I bus connection
End Connections butt-welded, tri-clamp
Packaging details standard export package or customerized

3A Hygienic Double-Seat Mixing Proof Valve for Food Beverage Processing

Design Features

Default with normally closed pneumatic actuator
Compact and robust design, forged spherical bodies
Pressure balanced design
One-piece Body & Clamped Body for choose from
A wide selection of different body combinations.
Easy disassembly by releasing the clamp
Cleaning/Sterilization Parts for Options
100% hydraulic tested / 100% inspected

Operations

Actuators
Stainless steel actuator
Units for intelligent control and indication:
C-top control
IL-top control (Positioner)
Electric connection
AS-I bus connection


Connection:
Clamped, welded and threaded,flanged etc.

Packaging Details:
Bubble pack for each valve.
Outside packing is by carton or plywood case.


3A Hygienic Double-Seat Mixing Proof Valve for Food Beverage Processing
3A Hygienic Double-Seat Mixing Proof Valve for Food Beverage Processing
3A Hygienic Double-Seat Mixing Proof Valve for Food Beverage Processing
3A Hygienic Double-Seat Mixing Proof Valve for Food Beverage Processing
3A Hygienic Double-Seat Mixing Proof Valve for Food Beverage Processing

OPERATING PRINCIPLES

-Lift type mixing proof valve is remotely operated by compressed air. It is normally closed before running.

-The mixing proof valve is constructed with two independent plugs, which will form a leakage chamber to atmosphere under normal working status. When occasional failure causes leakage happen, medium will flow into the chamber and be diacharged at the outlet port.

-The leakage chamber is closed when the valve is operating, the medium can flow through one pipeline to another. This valve can be clean in place. Many options of CIP and SIP combination are available to users.(Refer to cleaning sterilization function options)

-Clean system can clean the upper, lower stem and leakage chamber, which ensure the valve to be high hygienic. Effectively cleanig system makes the fluid that special for (CIP) clean in place directly wash all the inside calve body, it takes shorter time than common cleaning system.

-Another beneficial of the high cleaning system is that the lift type mixing proof valve can be applied to aseptic processing. If user's steam into CIP pipeline, the system will constitute a shield that can isolate air.
