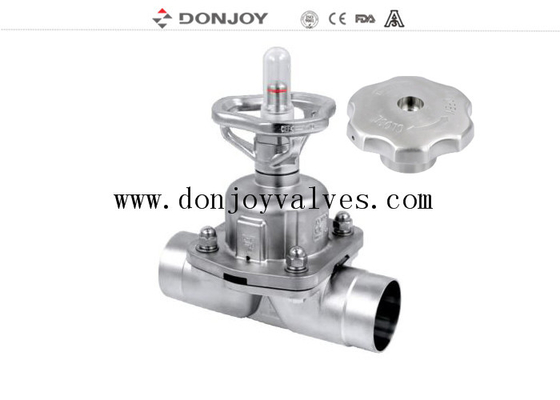

SS316L Sanitary Stainless Steel Diaphragm Valve with BPE Standard for Pharmacy

SS316L Sanitary Stainless Steel Diaphragm Valve with BPE Standard for Pharmacy

SS316L Sanitary Diaphragm Valve

Pharmacy Sanitary Diaphragm Valve

BPE Standard Sanitary Diaphragm Valve

Place of Origin:

CHINA

Brand Name:

DONJOY

Certification:

CE,3A,FDA

Model Number:

NO.ZZ-K

Contact Us

Request A Quote
Product Details
Body Materials:
SS316L
Connection:
Welded/Clamp/Thread/Flange
Body:
Casting/ Forging
Size:
DN6-DN15,1/4"-3/4", DN20-DN100
Temperature:
-20-150℃
Diaphragm:
EPDM, EPDM+PTFE, Silicon, FPM
Payment & Shipping Terms
Minimum Order Quantity
negotiation
Price
USD50-USD500
Packaging Details
carton box
Delivery Time
10-30 working days
Payment Terms
L/C, T/T
Supply Ability
500PCS
Product Description

BIO-PHARM DIAPHRAGM VALVE

Donjoy Technology offers a variety of ASME BPE Diaphragm Valves including manual, pneumatic or electric actuated 2-way or cast 2-ways, 3-way point of use (Zero Static) valves, T-block, and custom block body valves, can work with Control TOP on/off, positioner for accurate flow control. Suit to be used in aseptic areas or pharmaceutical industries

Details about Bio-Pharm Diaphragm Valve

Specification

Size DN6-DN100, 1/4" to 4"
Body Material AISI 316L, (EN1.4301/EN1.4404).ASME BPE 316L, or 1.4435-BN2 (316L) Fe<0.5% Forged Body
Temperature -20℃ to +150 ℃
Max pressure 145psi (10bar)
Seal EPDM+PTFE double seal, EPDM, Teflon PTFE, FPM, Silicon
Pipe Joint Systems DIN SMS RJT 3A ISO IDF
Operation Manual, pneumatic, electric all interchange
Surface treatment Ra16-32µin (0.4-0.8µm), Ra 32µin (0.8µm) as default.
Certification US 3-A, FDA, CE PED/2014/68/EC, Certification
Connection type Tri-Clover/ Clamp End, Thread End, Butt Weld End

Bio-Pharm Diaphragm Valve

Donjoy Technology offers a variety of Bio-Pharm Diaphragm Valves including manual, pneumatic or electric actuated 2-way or cast 2-ways, 3-way point of use (Zero Static) valves, T-block, and custom block body valves, can work with Control TOP on/off, positioner for accurate flow control. Meet ASME BPE standard, suit to be used in aseptic areas or pharmaceutical industries.

diaphragm valves



ASME BPE Bio-Pharm Valve Surface finish:

  • Wetted interior:
    – 32 Ra µin (0,81 Ra µm)
    – 32 Ra µin (0,81 µm) electropolish
    – ASME BPE SF1 20 Ra µin (0,5 um)
    – ASME BPE SF5 20 Ra µin (0,5 um) electropolish
  • Exterior: as cast, electropolished

Sanitary Diaphragm Valve Feature:

● Unique seal design, no dead angles
● FDA-approved seat materials: FDA 21 CFR 177.2600, EPDM+PTFE double seal, EPDM, Teflon PTFE, FPM, Silicon
● Sanitary surface finish, available with Ra < 0.4µm or EP (SF1 and SF4).Meet ASME BPE standard
● Manual handle, pneumatic actuator, electric actuator are interchangeable.
● A wide selection of body types for choose from,2 way,3 way U type/T type/Multiport/Tank Bottom
● Certificates: 3A, FDA, PED 2014/68/EU, ISO9001/2008.
● Standards: DIN, 3A, SMS, ISO / IDF, BS / RJT, and ASME / BPE.
● 100% hydraulic tested / 100% inspected.

Operation:

● Handles
Plastic handwheel
Stainless handwheel
● Actuators
Pneumatic plastic actuator
Pneumatic stainless steel actuator
Electric actuator
● Units for intelligent control and indication:
Proximity Switches (position sensor)
Limit Stroker
C-top control(on/off control)
IL-top control (Positioner)

Buy DONJOY Bio-Pharm Valve Advantage

1. Manufacture diaphragm valves for more than 20 years, manufactured more than 600,000 pcs.

2. This means we updated and optimized the diaphragm valve many times, and solve the problem in advance, more stable quality.

3. No dead angle.

4. Seal imported from Denmark.



Donjoy Valve Advantage

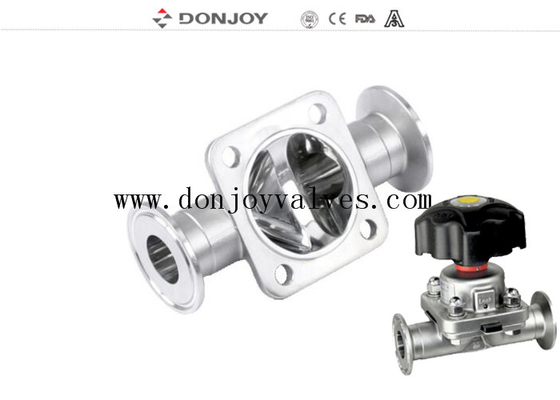

ASME BPE Diaphragm Valve body surface



Hygienic Diaphragm Valve Part List

Diaphragm Valve Part List



Hygienic Diaphragm Valve Dimension

Diaphragm Valve Dimension

Diaphragm Valve Actuator Dimension
