SS316L Proportional Control Angle Seat Valve With PTFE Seal

Brand Name:	DONJOY
Model Number:	NO.VJZ140S1
MOQ:	Negotiation
Price:	$100-$500/PC
Packaging Details:	carton box
Payment Terms:	T/T, LC, Credit Card

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

CE,3A,FDA

Product Name:

SS316L Proportional Control Angle Seat Valve With PTFE Seal

Size Of Panel:

DN10-DN80,1/2"-3"

Operation:

Manual

Material:

316L

Connection:

Welded/ Thread/ Flange

Gasket:

PTFE

Operate:

SS Pneuamtic

Highlight:

Proportional Control Angle Seat Valve

SS316L Angle Seat Valve

PTFE Seal Angle Seat Valve

Product Description

SS316L Proportional control angle seat valve with PTFE Seal

specifications:

Product Name:	SS316L Proportional control angle seat valve with PTFE Seal
Valve Body Material:	CF8M/316L,CF8/304
Seal Material:	EPDM
Working Pressure:	8 Bar, 16Bar(option).
Max. Working Temperature:	120 degree ,180Degree(Option)
Availably size:	DN10-DN80,1/2"-3"
Availably connection:	Thread,Weld,Clamp,BSP/BSP/NPT
Operate:	Maual
Certificate:	FDA,CE,ISO

Description

A new generation of high purity design of the angle seat valve

1. No dead angle, no retention to meet the requirements of all kinds of health.

2. Advantages: The spool without bolt, without considering the risk of damaging other equipment because of bolt dropping;

3. The valve have no dead angle, no need to consider the resulting corner because of the complex structure.

Operation Options for Seat Valve

1. Manual:Plastic handwheel, Stainless steel Wheel,Fine-turning hand wheel

2. Pnuematice:Plastic and stainless steel actuators

3. Control Head: Valve Positioner, Process controller, C-Top, Mini C-Top,Position Sensor

Applications:

Angle seat valve is a general switch in the automactic control system is widely used in printing, dyeing,bleaching, food,washing, chemical, water treatment,pharmacy and other automated machinery and equipment. It is featured with water hammer protection. Noise-free, reliable sealing performance.

Operationg Principles

1. Seat valve are operated automatically by a single-acting or a double-acting pneumatic acutor. By supplyiing compressed air, the shaft is moved to place the valve in the “open” or “closed” position.

2. The 180degree rotation of the pneumatic cylinder to realize the interchange of normally open and normally closed.

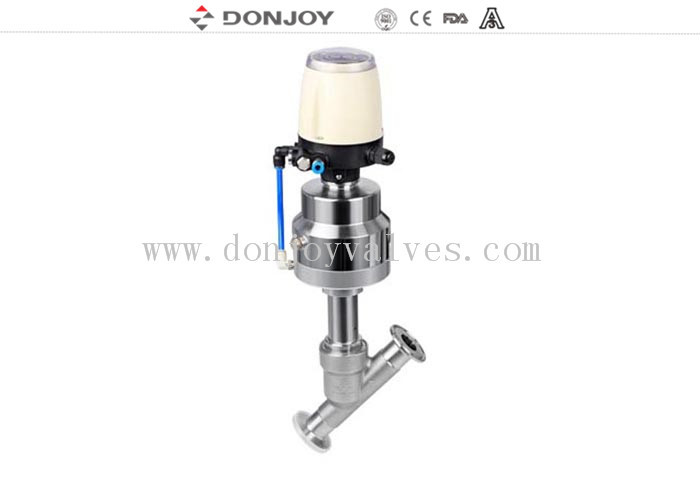

SS316L Proportional Control Angle Seat Valve With PTFE Seal 0

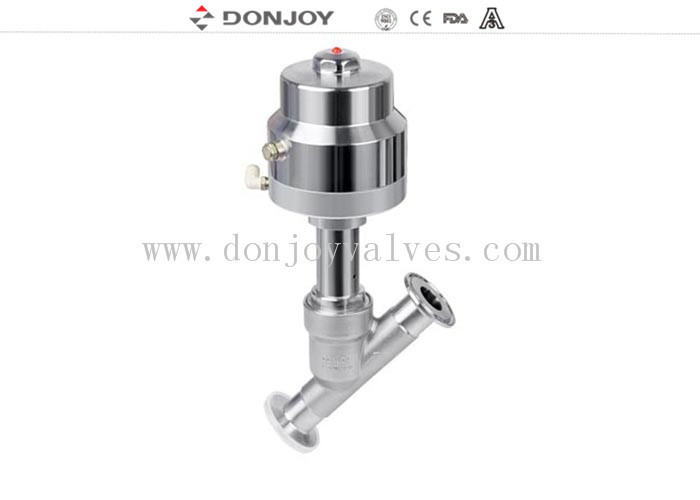

SS316L Proportional Control Angle Seat Valve With PTFE Seal 1

Curve for the KV

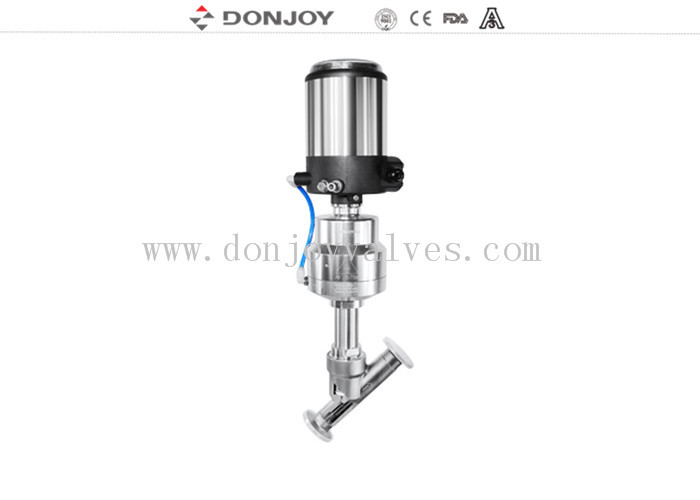

SS316L Proportional Control Angle Seat Valve With PTFE Seal 2

Tag:Angle seat valves, Sanitary valves, Donjoy valves
