BS - 6 High Purity Pumps centrifuagal pump (Close impeller) for fluid control

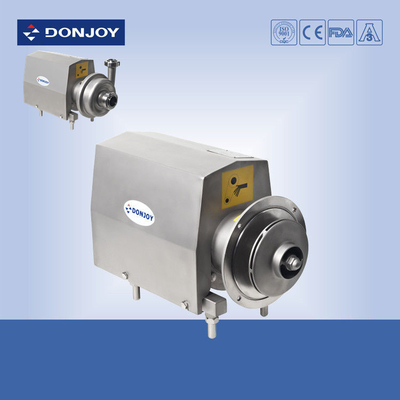

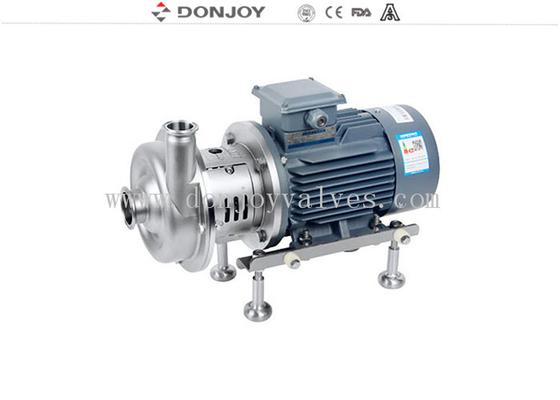

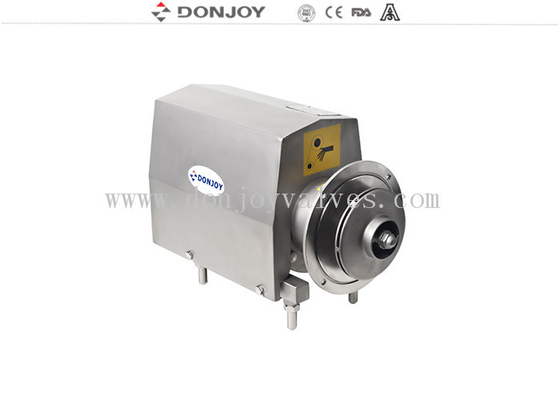

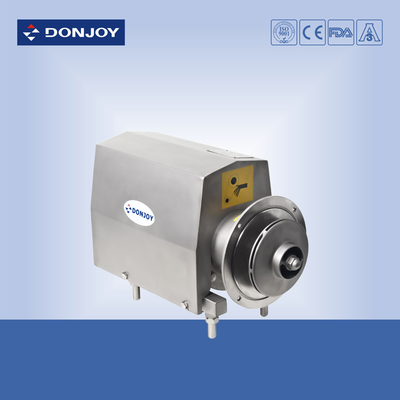

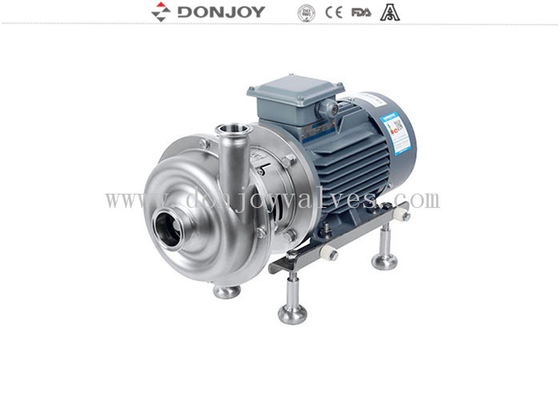

BS - 6 High Purity Pumps centrifuagal pump (Close impeller) for fluid control

self priming pump

lobe rotary pump

Place of Origin:

CHINA

Brand Name:

DONJOY

Certification:

CE,3A,FDA

Model Number:

BS - 6

Contact Us

Request A Quote
Product Details
Item Name:
Centrifugal Pump Of BS Series
Type:
BS - 6
Flow Rate:
16-30T/H
Mechanical:
Flush Mechanical Seal / Doulbe Seal
Inlet:
2" Thread / Clamp / Ferrule
Outlet:
1.5" Thread/Clamp/Ferrule
Motor:
ABB Motor
Low Discharge On Pump Head:
For Diaphragm Valve / Ball Valve / Butterfly Valve
Payment & Shipping Terms
Minimum Order Quantity
1
Price
Negotiation
Packaging Details
carton box
Payment Terms
T/T, LC, Credit Card
Product Description

BS-6, SS316L Sanitary centrifugal pump close impeller for food and beer trasfer for fluid control



Quick Detail

Trasfer Pump, BS pump, comestic pump, water pump



Description

Options

1. Mechanical seal: SIC/SICE/EPDM, TC/TC,EPDM

2. Gasket: viton/NBR

3. Connection: Thread, Clamp, Flange(DIN,SMS,RJT,IDF)

4. Motor: 2900,1450,3600Min/1,50HZ,60HZ

5.Single Mechanical seal ( Standard)

6.Flush double mechnical seal(option)



Specifications

Product Name:

BS-6,SS316L Sanitary centrifugal  pump Close impeller  for food and beer trasfer

Valve Body Material:

SS304 / SS316L / 1.4301 / 1.4404

Seal Material:

EPDM (Standard, FDA approval) FPM(Viton) and NBR

Max. Flow:

150 m3/h

Max. Speed:

3600 min-1

Max. Head:

70H(m)

Max. Working Pressure:

7 bar/99 PSI

Max. Working

Temperature:

120 °C

Mechanical seal:

SIC/SiC/EPDM(Standard), C/SIC, TC/TC

Sealing type:

Flushed double mechanical seal/single mechanical seal(standard)

Motor power:

1.1kw, 1.5kw, 2.2kw...30kw

Voltage:

110V, 220V, 380V,630-690V

Motor:

ABB/domestic/SIEMENS

Motor type: Optional

Motor Frequency:

50HZ, 60HZ

Surface treatment:

Inner polished and Sandblast outside

Application structure:

KS/BS

Availably connection:

Tri-Clamp, Thread, Flange

Availably standard:

DIN, SMS, 3A, RJT, ISO/IDF

Operated:

Electic

Low discharge option :

Low discharge/diaphragm valve/ball valve/butterfly valve

Certificate:

3A/54-02 (1580), PED/97/23/EC, FDA.177.2600, ISO9001/2008

Application scope:

For processing fluid



Applications

1. This pump is manufactured in stianless steel and with a shrouded motor.

2.Sanitary and cost-efficient design makes it perfect for the daries, beverages, foods-processing,pharmaceutical and fine chemical industries.



Installation

options

Low discharge in the pump head: Diaphragm valve / ball valve / butterfly valve

Mechanical seal: SIC / SIC / EPDM

Connection way of Inlet & Outlet: thread, weld and flange
