    Product Details:

    Place of Origin: China
    Brand Name: DONJOY
    Certification: CE,3A,FDA
    Model Number: NO.MINI-VGM0Q2/NO.MINI-ZZ-K

    Payment & Shipping Terms:

    Minimum Order Quantity: 1
    Price: negotiation
    Packaging Details: carton box
    Payment Terms: T/T, LC, Credit Card
    Contact Now
    Detailed Product Description
    Product Name: Mini-type Diaphragm Valve Of Sanitary Grade Materials: SS316L / 1.4404
    Size: 1/4'' - 3/4'', DN6 - DN15 Operation: Plastic Actuator
    Connection: Clamp Gasket: EPDM + PTFE
    Type: Mini Type Structure: With Pneumatic Input / Output
    Diaphragm: Single Or Double Is Optional
    High Light:

    diaphragm check valve

    ,

    3 way diaphragm valve

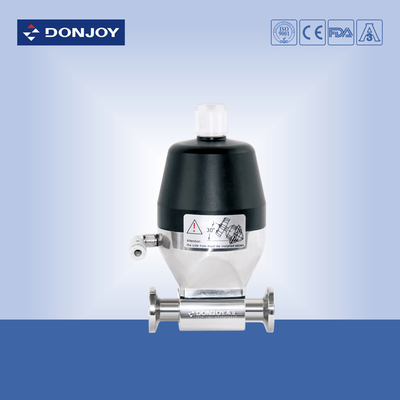

    316L SS Mini Direct way Clamp Diaphragm Valve with Plastic Actuator for phamacy hygienic process



    Specifications

    Product Name:

    316L SS Mini Direct way Clamp Diaphragm Valve with Plastic Actuator for phamacy hygienic process

    Valve Body Material:

    SS316L

    Seal Material:

    Single sillcone gasket/ Adhesive PTFE+EPDM/Two pieces PTFE+EPDM

    Max. Working Pressure:

    8Bar

    Max.Working Temperature:

    150 degree C

    Availably  size:

    1/4”-3/4”, DN6-DN15

    Availably connection:

    Clamp/weld/thread/special connection

    Availably standard:

    3A/BPE/DIN/ISO/IDF

    Operated:

    Manual,Pneumatic

    Availably structure:

    Straight, tee, U-type, tank bottom

    Control:

    Smart valve positioner / C-TOP control / position sensor

    Certificate:

    3A/54-02 (1580), PED/97/23/EC, FDA.177.2600

    Material of forging or casting valve body: 1.4404 / 316L
    Max. temperature of plastic actuator: -30℃ to 130℃ (up to diaphragm)



    Description

    Various configuration of Diaphragm valve

    1.      Didaphragm valve with Pisitioner/Process Controller(IL-TOP)

    2.      Diaphragm valve with Control Unit(C-Top)

    3.      Valve position Regulator

    4.      Position Sensor Module

    5.      Plastic Handle

    6.      Stainless steel handle

    7.      Stianless steel acutor

    8.      Electric Diaphragm valve

    9.      Plastic Acutor

    10.  Body: Casting / Forging



    Dimension of diaphragm valve

    Please check the detailed size of diaphragm valve below.



    Sanitary Diaphragm Valve Mini Direct way Clamp,Sample Valve,Pnuematic Diaphragm valve 0
