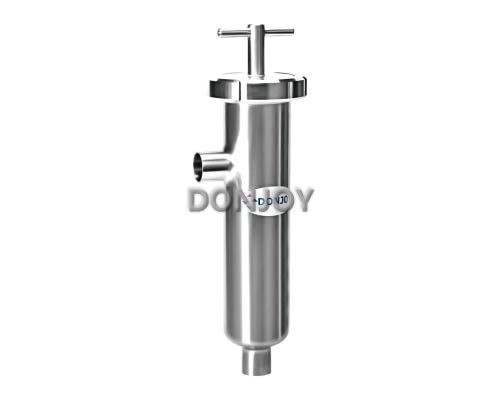

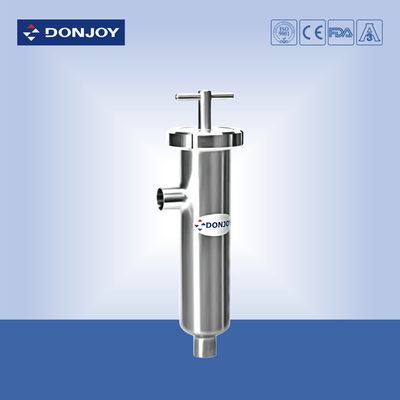

Sanitary AISI 316L Stainless Steel Juice Pipeline Filter With EPDM Gasket

Sanitary AISI 316L Stainless Steel Juice Pipeline Filter With EPDM Gasket

pipe filters

sanitary strainers stainless steel

Place of Origin:

CHINA

Brand Name:

DONJOY

Certification:

CE/FDA/ISO/3A

Model Number:

NO.EGL210

Contact Us

Request A Quote
Product Details
Brand:
DONJOY
SIZE:
1"-4"
Stanadard:
DIN,3A,SMS,ISO
Gasket:
EPDM
Polished:
Mirror
Fiter Function::
Water
Payment & Shipping Terms
Minimum Order Quantity
1
Price
Negotiation
Packaging Details
Carton, Wooden Case
Payment Terms
T/T,L/C, Credit Card
Product Description

Sanitary AISI 316L Stainless Steel Juice Pipeline Filter With EPDM Gasket



Quick Detail



Sanitary filter/Strainer, Food grade Filter, Juice Filter

1. Materials: SUS304/SUS316L, 1.4301/1.4404, AISI304/AISI316L

2. Size:1"-4"

3. Screen:30-300meshes

4. Screen Hole:0.5mm-2mm

5. Surface: Inside RA≤0.8um,Outside: Mirror Polished

6. Working tempressure: -10℃ to 120 ℃(EPDM), +140℃ (SIP,30 Minites)

                                     14℉ to 248℉

7. Max pressure: 10Bar,145PIS

8. Connection: Clamped, Welded, Thread

9.Standard: DIN,3A, RJT,SMS,ISO,IDF

10. Gasket: EPDM ( FDA 177.2600)



Specification

Product Name:

AISI316L Sanitary Stainless steel juice pipeline angle filter 1inch to 4 inch

Material:

AISI304, AISI316L

Size:

1-4"

Finish:

Ra ≤0.8um,Mirror, 320Grit, 180Grit, 240Grit

Connection:

Welded, Threaded, Clamped

Standard:

DIN,3A,SMS,ISO

Certificate:

CE, ISO9001/2008, 3A

Application scope:

Dairy, food, beer, beverage, pharmacy, cosmetic,Oil,Waste water etc

Packaging Details:

Shrink wrapped - carton - pallet . Or as per the request of customers



Operating Principles:

The Filter consists of inlet and outlet housing, inner screen mesh to filter the particulates and impurities which can't pass the mesh


Feature:

Sanitary Filters provide reliable means of removing fine particles from liquids; filtering media must be removed and disposed periodically. Strainers, on the other hand, actually are coarse filters that remove larger particles; the straining mesh can be reused after cleaning. An inline sanitary filter that filters down to 0.023 micron with a 99.99% efficiency. Use it anywhere you need to keep something sanitary.



Advantage:

hygiene level filter sleeve unique structure, make each sleeve no dead Angle, both internal and external surface can be completely unpick and wash, easy to operate.



Packing details:
Each with wrap then put in caton. If shipped by sea will packed in the wooden case

Shipping details:

Uaually within 7 days after receiving T/T down payment



Term of conditions: EXW PRICE, FOB, CIF....



After-sale Service

Please contact our After-sales service department in time within 30days after you received the cargo.
Time: 8:00 a.m.- 5:30 p.m. (Beijing time)
Process

Please provide the copy of Sales Contract and describe the problems



appeared.

Problems confrimation:
Slight problem: Please send the proof to our After-Sales Department, we will reply within two days.
Serious problem:
a We will dispatch our Quality and Problems Appraisers to make a confirmation.
b Have a negotiation of the compensation and sign agreements
c Our After-Sales Department will perform the duties as the agreements



Sanitary  AISI 316L Stainless Steel Juice Pipeline Filter With EPDM Gasket 0

Metal Mesh



Mesh B(MM) Useful Surface(%)
30 0.55 48
40 0.4 46
60 0.3 52.6
80 0.2 42
100 0.15 36.2
165 0.1 45.4



Perforate Plate



A(MM) Useful Surface(%)
0.5 15
1 28
1.5 33
2 30
3 33
5 46

Sanitary  AISI 316L Stainless Steel Juice Pipeline Filter With EPDM Gasket 1



If you still have any problems,Please do not hesitate to contact us.
