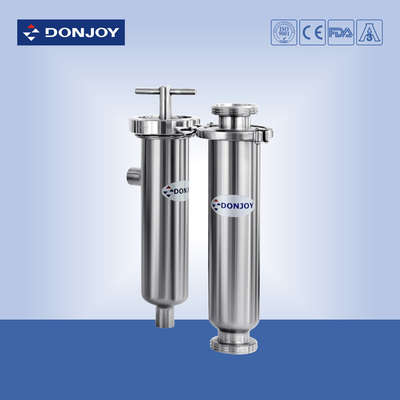

Angle Type Strainer SS04 Pipeline Filter With 30-300 Meshes Screen

Angle Type Strainer SS04 Pipeline Filter With 30-300 Meshes Screen

sanitary strainers stainless steel

inline sanitary filter

Place of Origin:

CHINA

Brand Name:

DONJOY

Certification:

CE/FDA/ISO/3A

Model Number:

NO.EGL210

Contact Us

Request A Quote
Product Details
Brand:
DONJOY
SIZE:
1"-4"
Stanadard:
DIN,3A,SMS,ISO
Connection:
Clamped, Thread, Welded
Screen:
30-300meshes
Materials:
Stainless Steel 304/316L
Payment & Shipping Terms
Minimum Order Quantity
1
Price
Negotiation
Packaging Details
Carton, Wooden Case
Payment Terms
T/T,L/C, Credit Card
Product Description

Angle Type Strainer SS04 Pipeline Filter With 30-300 Meshes Screen



Quick Detail

Sanitary filter/Strainer

Materials: SUS304/SUS316L, 1.4301/1.4404, AISI304/AISI316L

Size:1"-4"

Working tempressure: -10℃ to 120 ℃(EPDM), +140℃ (SIP,30 Minites)

                                         14℉ to 248℉

Max pressure: 10Bar,145PIS

Gasket: Silicone, FPM, NBR(FDA 177.2600),EPDM

Screen Hole:0.5mm-2mm

Surface: Inside RA≤0.8um,Outside: Mirror Polished

Connection: Clamped, Welded, Thread

Standard: DIN,3A, RJT,SMS,ISO,IDF



Operating Principles:

The Filter consists of inlet and outlet housing, inner screen mesh to filter the particulates and impurities which can't pass the mesh


Specification

Product Name: Angle type strainer, Angle FIlter SS316L,1 inch to 4 inch use to the pipeline Inlet
Material: AISI304, AISI316L
Size: 1-4"
Finish: Ra ≤0.8um,Mirror, 320Grit, 180Grit, 240Grit
Connection: Welded, Threaded, Clamped
Standard: DIN,3A,SMS,ISO
Certificate: CE, ISO9001/2008, 3A
Application scope: Dairy, food, beer, beverage, pharmacy, cosmetic,Oil,Waste water etc
Packaging Details: Shrink wrapped - carton - pallet . Or as per the request of customers



Application:

The filter is a equipment to remove a small amount of solid particles in the liquid, protect compressor,pump,instrument and other equipment can work normally. When need to be clean,as long as you Take out the dismountable filter cartridge, to reload after processing,so it's more convenient to ues or maintain.



Advantages:   hygiene level filter sleeve unique structure, make each sleeve no dead Angle, both internal and external surface can be completely unpick and wash, easy to operate.



Packing: Cartons, Wooden case or customer requirment



Payments Term:

Total amount <=1000USD, 100% in advance. Total amount>=1000USD, 50% T/T in advance ,balance before shippment.



Delivery time: For the samples within 7 days. For the large order always with 15 days.

Term of conditions: EXW PRICE, FOB, CIF....

MOQ: 1PCS



Metal Mesh

Mesh B(MM) Useful Surface(%)
30 0.55 48
40 0.4 46
60 0.3 52.6
80 0.2 42
100 0.15 36.2
165 0.1 45.4

Perforate Plate

A(MM) Useful Surface(%)
0.5 15
1 28
1.5 33
2 30
3 33
5 46

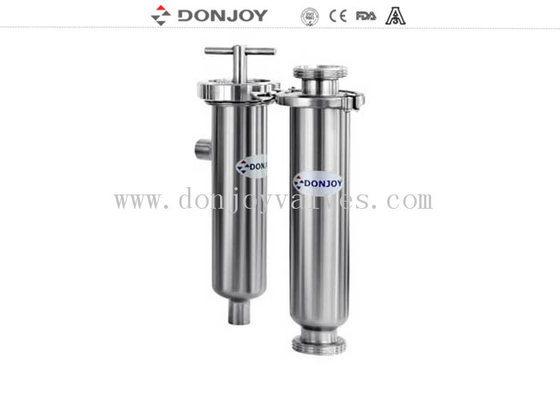

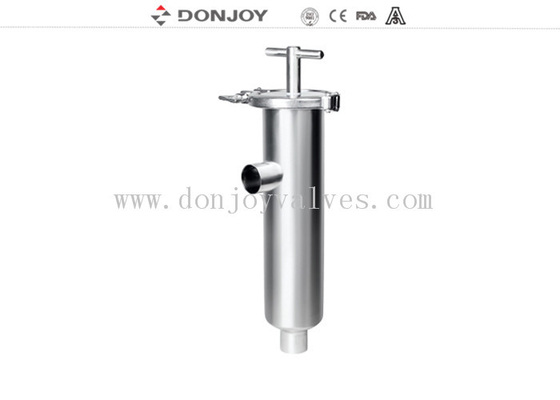

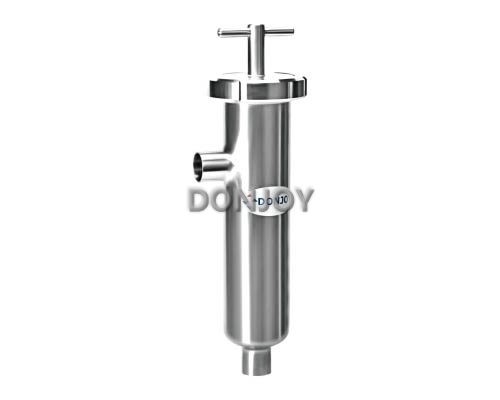

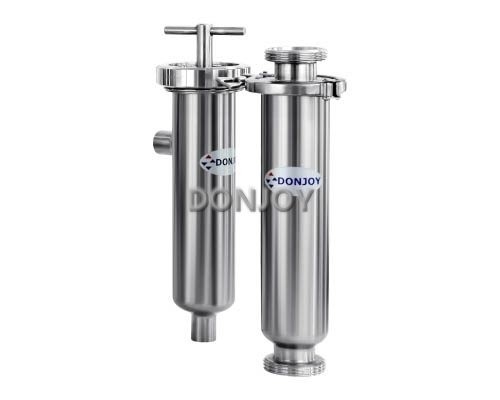

Angle Type Strainer SS04 Pipeline Filter With 30-300 Meshes Screen 0

Angle Type Strainer SS04 Pipeline Filter With 30-300 Meshes Screen 1



If you still have any problems,Please do not hesitate to contact us.
