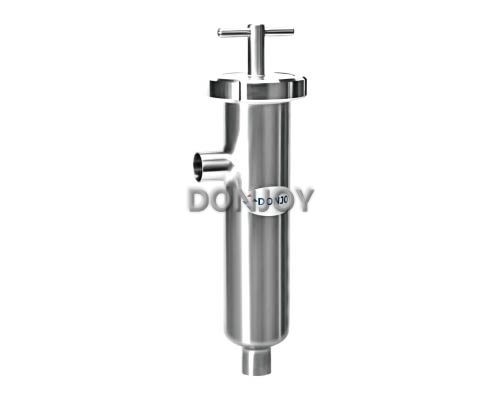

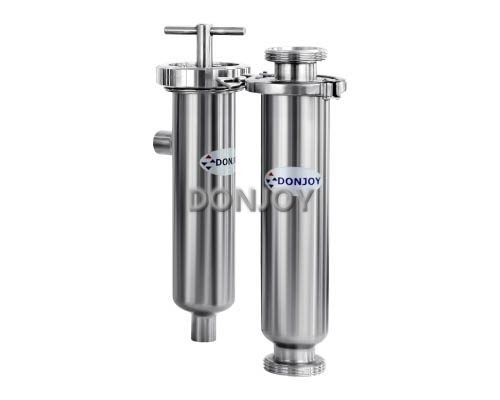

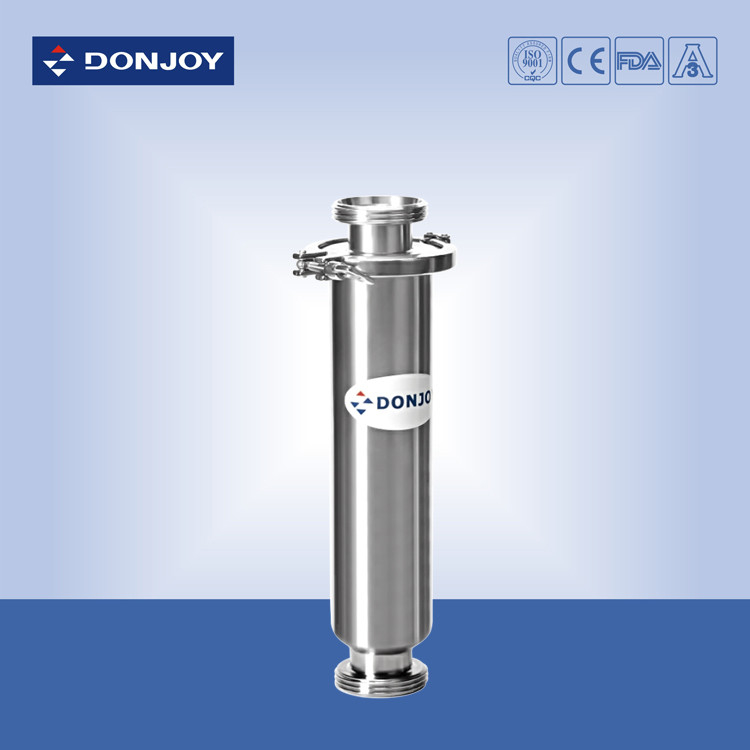

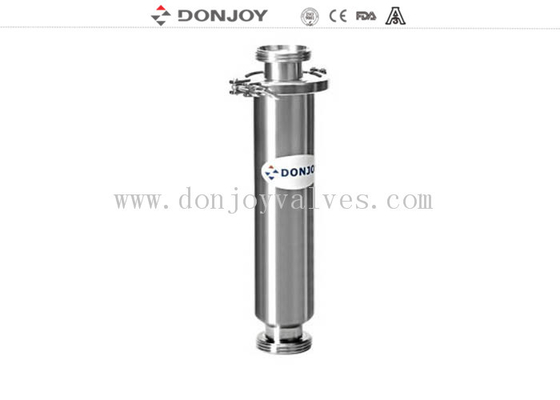

304 / 316 Stainless Steel Straight Filter , 1 Inch - 4 Inch Inline Water Filter
Quick Detail
Sanitary filter/Strainer
Materials: SUS304/SUS316L, 1.4301/1.4404, AISI304/AISI316L
Size:1"-4"
Working tempressure: -10℃ to 120 ℃(EPDM), +140℃ (SIP,30 Minites)
14℉ to 248℉
Max pressure: 10Bar,145PIS
Screen:30-300meshes
Screen Hole:0.5mm-2mm
Surface: Inside RA≤0.8um,Outside: Mirror Polished
Gasket: Silicone, FPM, NBR(FDA 177.2600)
Inlet: Bottom
Outlet: Top
Specification
|
Product Name:
|
Food grade 304 and 316 Stainless steel inline or straight filter 1 inch to 4 inch
|
|
Material:
|
AISI304, AISI316L
|
|
Size:
|
1-4"
|
|
Finish:
|
Ra ≤0.8um,Mirror, 320Grit, 180Grit, 240Grit
|
|
Connection:
|
Welded, Threaded, Clamped
|
|
Standard:
|
DIN,3A,SMS,ISO
|
|
Certificate:
|
CE, ISO9001/2008, 3A
|
|
Application scope:
|
Dairy, food, beer, beverage, pharmacy, cosmetic,Oil,Waste water etc
|
|
Packaging Details:
|
Shrink wrapped - carton - pallet . Or as per the request of customers
|
Operating Principles:
The Filter consists of inlet and outlet housing, inner screen mesh to filter the particulates and impurities which can't pass the mesh
Application:
The filter is a equipment to remove a small amount of solid particles in the liquid, protect compressor,pump,instrument and other equipment can work normally. When need to be clean,as long as you Take out the dismountable filter cartridge, to reload after processing,so it's more convenient to ues or maintain. This series of filters have advantages for compact structure, big filter ability, small pressure loss, the applicable scope is wide,
Advantage:easy maintenance, Easy cleaning
Packaging: Carton, plywood case (or as per customer's specification)
FAQ:
1. What the paymetns Term
Re:Total amount <=1000USD, 100% in advance. Total amount>=1000USD, 50% T/T in advance ,balance before shippment.
2. How to Pay
Re: Western Union, Credit Card, T/T Bank
3. How fast of the delivery time
Re: For the samples within 7 days. For the large order always with 15 days.
4.Term of Conditions:
Re: EXW, FOB, C&F,CIF.....
Perforate Plate
| A(MM) |
Useful Surface(%) |
| 0.5 |
15 |
| 1 |
28 |
| 1.5 |
33 |
| 2 |
30 |
| 3 |
33 |
| 5 |
46 |
Metal Mesh
| Mesh |
B(MM) |
Useful Surface(%) |
| 30 |
0.55 |
48 |
| 40 |
0.4 |
46 |
| 60 |
0.3 |
52.6 |
| 80 |
0.2 |
42 |
| 100 |
0.15 |
36.2 |
| 165 |
0.1 |
45.4 |
If you still have any problems,Please do not hesitate to contact us.
