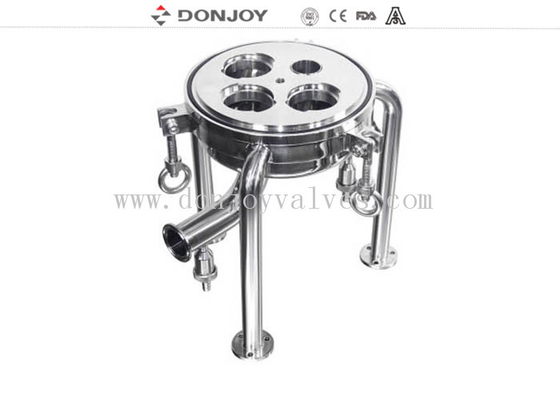

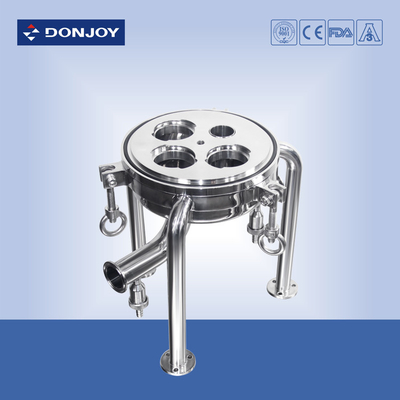

Tri Legs Sanitary Filter Housing Base 1.5" TC In / Out. For Code-7 (2-226) Cartridge Socket

Tri Legs Sanitary Filter Housing Base 1.5" TC In / Out. For Code-7 (2-226) Cartridge Socket

    • Tri Legs Sanitary Filter Housing Base 1.5" TC In / Out. For Code-7 (2-226) Cartridge Socket
    • Tri Legs Sanitary Filter Housing Base 1.5" TC In / Out. For Code-7 (2-226) Cartridge Socket
    • Tri Legs Sanitary Filter Housing Base 1.5" TC In / Out. For Code-7 (2-226) Cartridge Socket
    • Tri Legs Sanitary Filter Housing Base 1.5" TC In / Out. For Code-7 (2-226) Cartridge Socket
  • Tri Legs Sanitary Filter Housing Base 1.5" TC In / Out. For Code-7 (2-226) Cartridge Socket

    Product Details:

    Place of Origin: CHINA
    Brand Name: DONJOY
    Certification: CE/FDA/ISO/3A
    Model Number: NO.EGL411-01

    Payment & Shipping Terms:

    Minimum Order Quantity: 1
    Price: Negotiation
    Packaging Details: Carton, Wooden Case
    Payment Terms: T/T,L/C, Credit Card
    Contact Now
    Detailed Product Description
    SIZE: 10"-20",30",40" Stanadard: DIN,3A,SMS,ISO
    Connection: Clamped, Thread, Welded, Male Polished: Mirror, Matt
    Capacity: 0.5t/h-25t/h Filter Seat: 1 Core, 3 Core, 5 Core, 7 Core
    High Light:

    pipe filters

    ,

    sanitary strainers stainless steel

    Tri Legs Sanitary Filter Housing Base 1.5" TC In / Out. For Code-7 (2-226) Cartridge Socket



    Quick Detail

    Filter Housing Base

    Size:10"-20",30",40"

    Connection: Clamp,Flange

    Capacity:0.5T/H-25T/H

    Catridge: PP,PTEF,PE,

    Hole Dia:0.1μm,0.22μm,1μm,3μm,5μm,10μm



    Description:

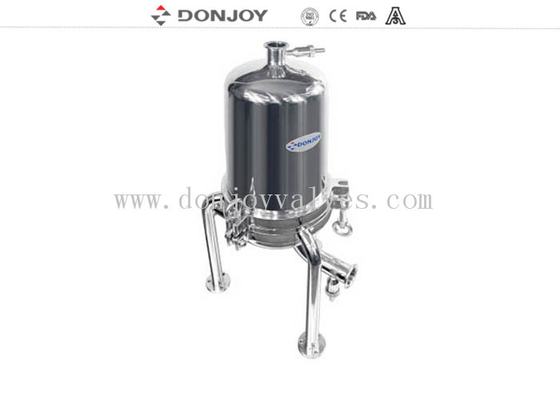

    Use with heavy duty hinged clamp with wing nut fastener & gasket required tofasten 10", 20", 30", or 40" bell housing to base. SS304&SS316L stainless steelwith polished finish interior & exterior. Micro series filter system component sanitizeable with low pressure steam or hot water.



    Specification

    Product Name:

    Filter Housing Base on tri legs & 1.5" TC in/out. Uses code-7 (2-226) cartridge socket

    Material:

    AISI304, AISI316L

    Size:

    1-4"

    Finish:

    Ra ≤0.2μm,Mirror, 320Grit, 180Grit, 240Grit

    Connection:

    Welded, Threaded, Clamped

    Standard:

    DIN,3A,SMS,ISO

    Certificate:

    CE, ISO9001/2008, 3A

    Application scope:

    Dairy, food, beer, beverage, pharmacy, cosmetic,Oil,Waste water etc

    Packaging Details:

    Shrink wrapped - carton - pallet . Or as per the request of customers



    Application:

    Water filter housing is specially designed for water treatment and other industrial applications.



    Delivery details

    Usually within 10 days after receiving T/T down payment.





    Tri Legs Sanitary Filter Housing Base 1.5" TC In / Out. For Code-7 (2-226) Cartridge Socket 0





    If you need more information,Please do not hesitate to contact us directly.
