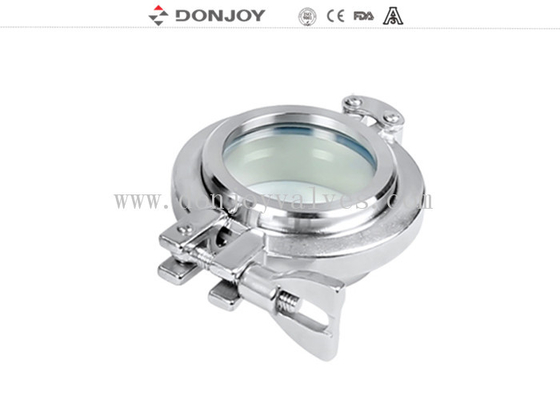

DONJOY quality clamp union sight glass with tempered glass 120 degree max temperature

DONJOY quality clamp union sight glass with tempered glass 120 degree max temperature

  • DONJOY quality clamp union sight glass with tempered glass 120 degree max temperature
DONJOY quality clamp union sight glass with tempered glass 120 degree max temperature
Product Details:
Place of Origin: CHINA
Brand Name: DONJOY
Certification: CE/FDA/ISO/3A
Model Number: NO.VSJ500N1
Payment & Shipping Terms:
Minimum Order Quantity: 1
Packaging Details: Carton, Wooden Case
Delivery Time: 10-30 working days
Payment Terms: T/T,L/C, Credit Card
Contact Now
Detailed Product Description
Gasket: NBR, EPDM, FPM SIZE: 1" - 4"
Stanadard: DIN, 3A, SMS, ISO Connection: Welded, Clamped,Thread
Internal Finish: Polishing Is Optional Protective Sleeve: AISI 304
Product Name: Clamp Union Type Sight Glass Design: Observation From Any Angle
High Light:

SS Sight Glass

,

stainless sight glass

DONJOY quality clamp union sight glass with tempered glass 120 degree max temperature



Brief Description

Aseptic Sight Glass of no dead conner

Size: 1"-12"/DN25-DN300

Gasket: EPDM,PTFE

Protective sleeve: AISI 304

Glass: tempered glass



Detailed Specification

Product Name:

DONJOY quality clamp union sight glass with tempered glass 120 degree max temperature

Valve Body Material:

SS304/SS316L/1.4301/1.4404

Seal Material:

EPDM,PTFE,SILICON,etc

Sight glass:

tempered glass

Max.temperature:

-10 to 120 degree (silicon)

Working pressure

Vacuum -10 bar

Battery:

use high light flashlight,rechargeable lithium battery(220V Battery for 18650); can use AC220V/110V power supply lighting.

Available connection:

Clamp, Thread, weld, Flange

Available standard:

DIN, SMS, 3A, ISO

Certification:

3A, PED, FDA, ISO

Application scope:

Dairy, food, beverage, pharmacy, cosmetic, etc

Combination:

Stainless steel and tempered glass

Design:

New type



Application

Aseptic no dead angle tubular sight-glass is comprised of stainless steel frame and glass.

Through it, operator canobserve the flowing of the liquid substance clearly and precisely

in the fields of flood,cosmetic, pharmaceutical and fine chemicals industries.



Characteristics

Clamp union ty[e

360° full angle for observation

Could be installed with light and wipper.

Parts contact with liquid : ASME 316L/304



Drawing

Please check the form below for detailed specification.

DONJOY quality clamp union sight glass with tempered glass 120 degree max temperature 0
