| Place of Origin: | CHINA |
| Brand Name: | DONJOY |
| Certification: | CE/FDA/ISO/3A |
| Model Number: | NO.VSJ303N1 |
| Minimum Order Quantity: | 1 |
|---|---|
| Packaging Details: | Carton, Wooden Case |
| Payment Terms: | T/T,L/C, Credit Card |
| Name: | Union Sight Glass With Cable Lighting | SIZE: | DN65 - DN150 |
|---|---|---|---|
| Stanadard: | DIN, 3A, SMS, ISO | Connection: | Welded, Clamped, Thread |
| Polished: | Mirror, Matt | Glass: | Tempered Glass |
| Prefabricated Cable: | 2M | Feature: | Prefabricated Pin Plug |
| High Light: | sanitary sight glass,stainless sight glass |
||

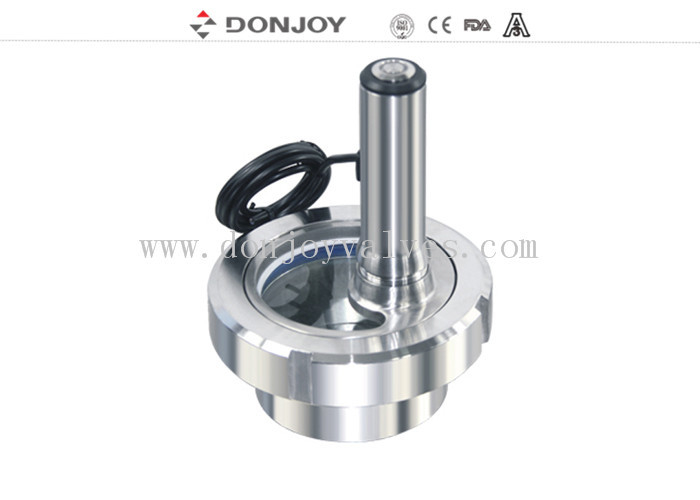

DN80 DC24V union type sight glass with stainless steel lighting and cable charging of waterproof design
Brief Instruction
Union Sight Glass with cable lighting
Size:DN65-DN150,3"-6"
Gasket: EPDM,PTFE
Working Pressure:10Bar
Powered DC 24V
Precast cable 2 M
Specification
|
Product Name: |
DN80 DC24V union type sight glass with stainless steel lighting and cable charging of waterproof design |
|
Valve Body Material: |
SS304/SS316L/1.4301/1.4404 |
|
Seal Material: |
EPDM,PTFE,SILICON,etc |
|
Sight glass: |
tempered glass |
|
Max.temperature: |
-10 to 150 degree |
|
Availably connection: |
Clamp, Thread, weld, Flange |
|
Availably standard: |
DIN, SMS, 3A, ISO |
|
Certificate: |
3A/54-02 (1580), PED/97/23/EC, FDA.177.2600, ISO9001/2008 |
|
Application scope: |
Dairy, food, beverage, pharmacy, cosmetic, etc |
|
Prefabricated cable: |
2M |
|
Structure: |
Prefabricated pin plug |
Application
1. Union-type-sight-glass DIN11851/SMS (Standard fir dairy products), with transparent circular glass.
2. Threaded nozzle with the welded neck.
3. It is used viewing the biologic reactor, blender in laboratary, filter, processing container,pipeline and other closed container.
4. Especially apply in pharmacy, food and beverage processing, such as the brewery, dairy.
Technical Feature
DN 65-DN150, 3"-6"
Powered DC 24V
Waterproof hygienic design
Precast cable 2M
Precast pinhole plugs
Charging cable
Prefabricated cable: 2M
Structure
Prefabricated pin plug
Detailed Instruction
Display of Union Type Sight Glass + Lighting
Various selection as below:
