| Place of Origin: | CHINA |
| Brand Name: | DONJOY |
| Certification: | CE/FDA/ISO/3A |
| Minimum Order Quantity: | 1 |
|---|---|
| Packaging Details: | Carton, Wooden Case |
| Payment Terms: | T/T,L/C, Credit Card |
| Brand: | DONJOY | SIZE: | 1/2"-3" |
|---|---|---|---|
| Stanadard: | DIN,3A,SMS,ISO | Connection: | Welded, Clamped,Thread,pin Connection |
| Polished: | Mirror, Matt | Material: | SS304,SS316L |
| High Light: | spray balls stainless steel,spray ball for tank cleaning |
||

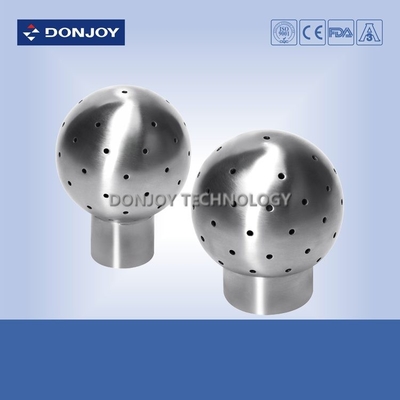

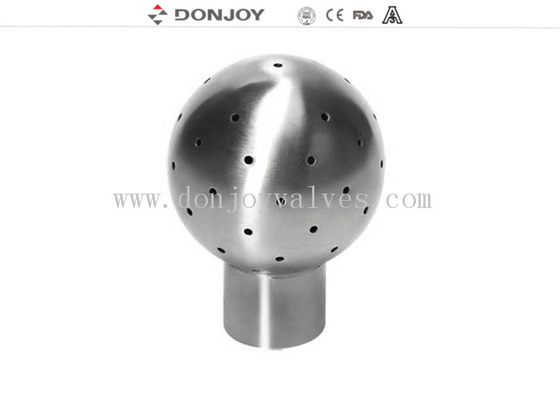

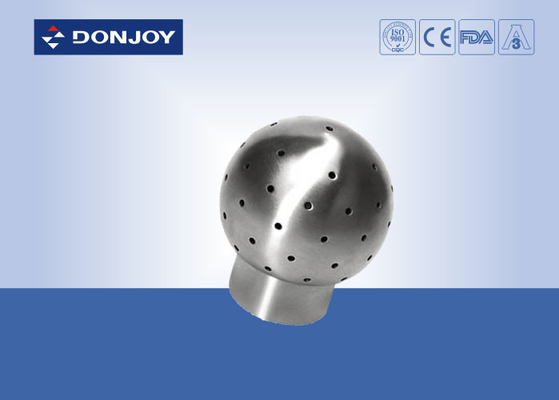

Fixed 360 Degree Tank Spray Balls for Cleaning , Stainless Steel 304 Pin Connection Clean Head
Quick Detail
Cleaning Ball
Type: 360 Degree, 180 Degree, 270 Degree,
Connection: Clamped, Thread, Welded, Bolted
Ball Type: Round, Ellipitcal
Size:3/8" to 2.5"
Q=28MM,45MM,65MM,75MM
Specification
|
Product Name: |
Fixed Cleaning Ball, Clean Head, Pin Connection, 360Degree spray |
|
Material: |
SUS304/316L;PTFE |
|
Flow: |
4-45m³/h |
|
Inlet Pressure: |
4-10 bar |
|
Suggest Pressure: |
6 bar |
|
Availably size: |
1"-2.5" |
|
Connection way: |
thread BSP,clamp Pin, Welded |
|
Max temperature: |
95°C |
|
Max environment temperature: |
140°C |
|
Application Scope: |
Widely used in food and diary products ,Pharmaceutical, Chemicl treatment,Transport equipment, Beverage |
|
Typical application: |
process containers and reactor; tank; transport irrigation equipment; fermentation; yeast breeding |
|
Advantages: |
Self-cleaning; low liquid consumption; heath design |
|
Typical cleaning methods: |
fixed installation CIP system |
|
Packaging Details: |
Bubble pack for each. Outside packing are carton or plywood cases. Or as per the request of customers. |
|
Delivery details: |
Usually within 20 days after receiving T/T down payment. |
Typical Application
1.Fixedinstallaiton CIP System
2.Process Containers and reator
3.Store tank
4.Transport tank equipment
5.Fermentation
6.Yeast Breeding
Application:
Fixed Cleaning BALL: 360 Degree spray completely 180 degree spray aperlure of spray is 2.5mm
Operating Principle
1. Rotary injector is hygenic tank cleaner,with 360degree coverage in a given tank or process container, the rotary jet head is driven by flow liquid through impeller in the pressure and flow increase will increase the length of the jet and the impact to the tank or vessel surface
2. Rotary injector with unique self cleaning funciton, internal is completely cleaning.
Clamped
| Size | Q | A | Pressure(Bar) | Spray Radius(m) | Flow Rate |
| 1” |
63
|
80 | 2.5 | 1.0-1.25 | 17/10 |
| 1.25” | 76 | 93 | 2.5 | 1.25-1.75 | 23/17 |
| 1.5” | 76 | 93 | 2.5 | 1.25-1.75 | 23/17 |
| 2” | 91 | 108 | 3.5 | 2.0-3.0 | 55/38 |
| 2.5” | 100 | 115 | 3.5 | 3.0-3.5 | 58/41 |
If you need more inforamtions,Please do not hesitate to contact us.
