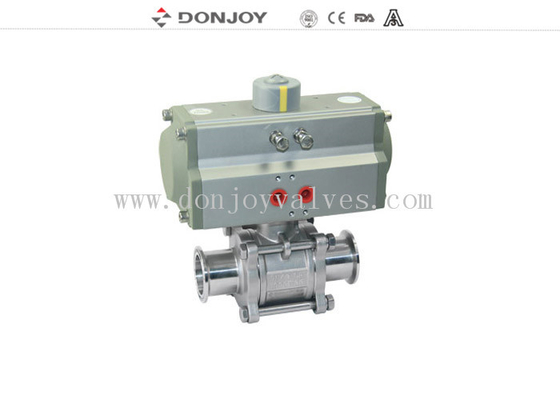

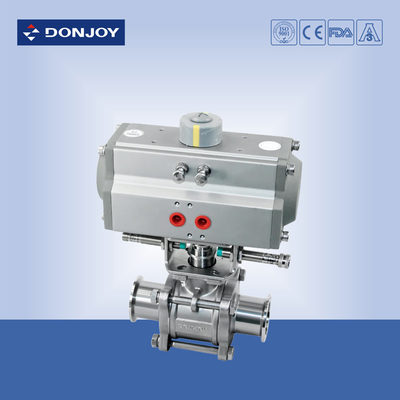

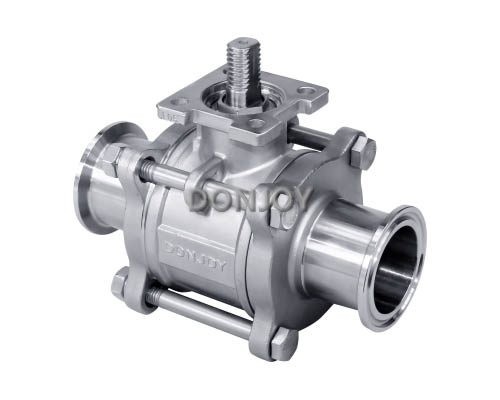

Aluminum pneumatic 3 piece Sanitary Ball Valve with ss304 / 316L

Aluminum pneumatic 3 piece Sanitary Ball Valve with ss304 / 316L

    • Aluminum pneumatic 3 piece Sanitary Ball Valve with ss304 / 316L
    • Aluminum pneumatic 3 piece Sanitary Ball Valve with ss304 / 316L
    • Aluminum pneumatic 3 piece Sanitary Ball Valve with ss304 / 316L
  • Aluminum pneumatic 3 piece Sanitary Ball Valve with ss304 / 316L

    Product Details:

    Place of Origin: CHINA
    Brand Name: DONJOY
    Certification: CE,3A,FDA
    Model Number: NO.VQW110Q2

    Payment & Shipping Terms:

    Minimum Order Quantity: 1
    Packaging Details: carton box
    Payment Terms: T/T, LC, Credit Card
    Contact Now
    Detailed Product Description
    Product Name: Ball Valve Size Of Panel: DN10-DN100,1/2"-4"
    Operation: Pneumatic, Control Head,Manual Working Temperature: -10 Degree C To 150 Degree C
    Connection: Welded, Clamped, Thread, Flange Air Pressure: 4-7bar
    High Light:

    pneumatic ball valve

    ,

    stainless steel ball valve

    Aluminum pneumatic three-piece Non-retention full port ball valve with ss 304/316L



    Description:

    Type of Non-rentention ball valve

    1. Pneumatic three-piece mon-retention ball valve

    2. Pneumatic three-piece mon-retention ball valve with positioner

    3. Pneumatic three-piece mon-retention ball valve with C-TOP

    4. Pneumatic three-piece mon-retention ball valve With Mini C-TOP

    5. Pneumatic three-piece mon-retention ball valve With Electric actuator

    6. Aluminum acuator with positioner



    Specification

    Product Name: Aluminum pneumatic three-piece Non-retention full port ball valve with ss3014/316L
    Valve Body Material: SS304 or SS316L
    Seal Material: PTFE
    Max. Working Pressure: 10Bar
    Max. Working Temperature: 150 degree C
    Availably size: DN25-DN100 or 1" - 4"
    Availably connection: Weld,Clamp,Thread, Flange
    Availably standard: DIN,SMS,3A
    Ball Type: Directly
    Operated: Manual,Pneumatic,Electric,control Head
    Certificate: FDA,CE,3A,ISO



    Applications:

    The ball valve according to 3A and ASME BPE standard design, mainly used in pharmaceutical, food and beverage,  brewing and wine fine chemicals industries.



    Technical Feature

    All-inclusive tee design, no stranded high clean, meet the requirement of CIP and SIP sterilization and cleaning,and heat resistance of 180degree, the highest pressure 30Bar,automatic compensating sealing design, the advantages of samll torque, long service life



    It can also be equipped with the control unit, locator position sensor and other compatible automatic control system.



    Competitive Advantage:

    Donjoy With advanced technology, excellent quality and perfect after-sales service system, has been assessed for the national high-tech enterprises, the Provincial Famous Trademark, the Trovincial Science and Ttechnology Enterprises, Innovative Enterprises, Patent Model Enterprises, R & D Center, AAA Credit Enterprises.

    “DONJOY is the only company that pass nine series of products by American 3A certification organization in Asian sanitary pumps and valves field.”
