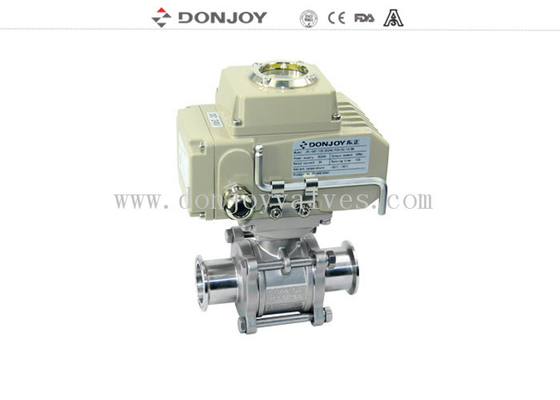

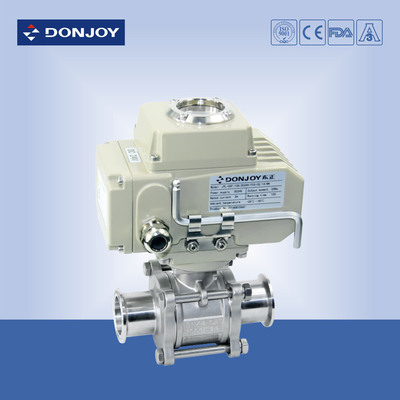

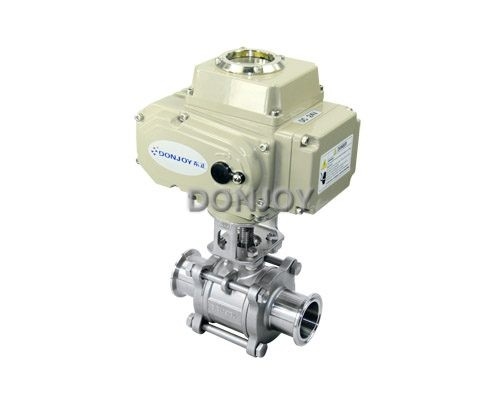

3A 1" Electric 3pcs Non-retention full port ball valve with Clamped Connection

3A 1" Electric 3pcs Non-retention full port ball valve with Clamped Connection

    • 3A 1" Electric  3pcs Non-retention full port ball valve with Clamped Connection
    • 3A 1" Electric  3pcs Non-retention full port ball valve with Clamped Connection
    • 3A 1" Electric  3pcs Non-retention full port ball valve with Clamped Connection
    • 3A 1" Electric  3pcs Non-retention full port ball valve with Clamped Connection
  • 3A 1" Electric  3pcs Non-retention full port ball valve with Clamped Connection

    Product Details:

    Place of Origin: CHINA
    Brand Name: DONJOY
    Certification: CE,3A,FDA
    Model Number: NO.VQW110Q2

    Payment & Shipping Terms:

    Minimum Order Quantity: 1
    Packaging Details: carton box
    Payment Terms: T/T, LC, Credit Card
    Contact Now
    Detailed Product Description
    Product Name: Ball Valve Size Of Panel: DN10-DN100,1/2"-4"
    Operation: Pneumatic, Control Head,Manual Media: 304/316L
    Connection: Welded, Clamped, Thread, Flange Power: Electric
    High Light:

    electric ball valve

    ,

    stainless steel ball valve

    3A 1" Electric 3pcs Non-retention full port ball valve with Clamped Connection



    Description:

    Type of Non-rentention ball valve

    1. Pneumatic three-piece mon-retention ball valve

    2. Pneumatic three-piece mon-retention ball valve with positioner

    3. Pneumatic three-piece mon-retention ball valve with C-TOP

    4. Pneumatic three-piece mon-retention ball valve With Mini C-TOP

    5. Pneumatic three-piece mon-retention ball valve With Electric actuator

    6. Aluminum acuator with positioner



    Specification

    Product Name: 3A, 1" Electric 3pcs Non-retention full port ball with Clamped Connection
    Valve Body Material: SS304 or SS316L
    Seal Material: PTFE
    Max. Working Pressure: 10Bar
    Max. Working Temperature: 150 degree C
    Availably size: DN25-DN100 or 1" - 4"
    Availably connection: Weld,Clamp,Thread, Flange
    Availably standard: DIN,SMS,3A
    Ball Type: Directly
    Operated: Manual,Pneumatic,Electric,control Head
    Certificate: FDA,CE,3A,ISO
    Packaging details standard exporting package or customerized
    Delivery details Usually within 20 days after receiving T/T down payment



    Applications:

    The ball valve according to 3A and ASME BPE standard design, mainly used in pharmaceutical, food and beverage, wine fine chemical chemicals and other industires.



    Technical Feature

    All-inclusive tee design, no stranded high clean, meet the requirement of CIP and SIP sterilization and cleaning,and heat resistance of 180degree, the highest pressure 30Bar,automatic compensating sealing design, the advantages of samll torque, long service life.

    Available with a variety of structures, such as electric, pneumatic and manually handle.



    Competitive Advantage:

    Donjoy With advanced technology, excellent quality and perfect after-sales service system, has been assessed for the national high-tech enterprises, the Provincial Famous Trademark, the Trovincial Science and Ttechnology Enterprises, Innovative Enterprises, Patent Model Enterprises, R & D Center, AAA Credit Enterprises.

    “DONJOY is the only company that pass nine series of products by American 3A certification organization in Asian sanitary pumps and valves field.”

    3A 1" Electric  3pcs Non-retention full port ball valve with Clamped Connection 03A 1" Electric  3pcs Non-retention full port ball valve with Clamped Connection 13A 1" Electric  3pcs Non-retention full port ball valve with Clamped Connection 23A 1" Electric  3pcs Non-retention full port ball valve with Clamped Connection 33A 1" Electric  3pcs Non-retention full port ball valve with Clamped Connection 4
