T / L type Manual Sanitary Ball Valve with plastic handle

T / L type Manual Sanitary Ball Valve with plastic handle

pneumatic ball valve

stainless steel ball valve

Place of Origin:


Brand Name:




Model Number:


Contact Us

Request A Quote
Product Details
Product Name:
Ball Valve
Size Of Panel:
Pneumatic, Control Head,Manual
Welded, Clamped, Thread, Flange
3 Way Non Rentention
Payment & Shipping Terms
Minimum Order Quantity
Packaging Details
carton box
Payment Terms
T/T, LC, Credit Card
Product Description

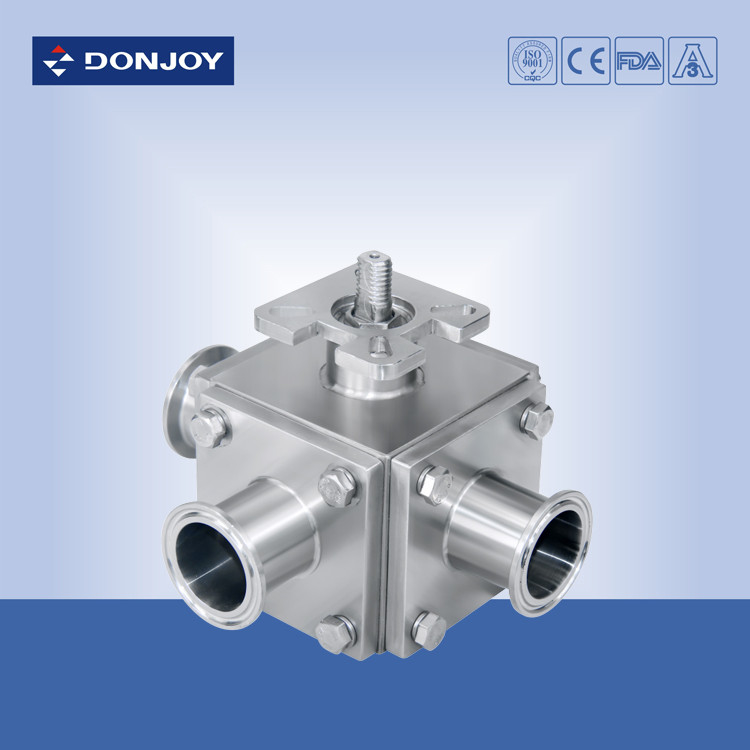

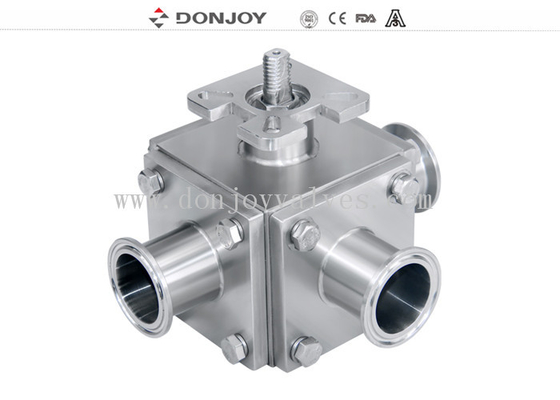

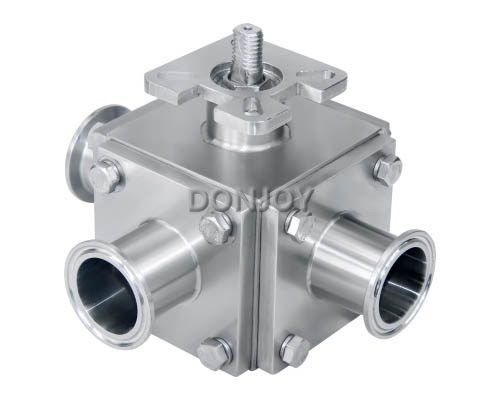

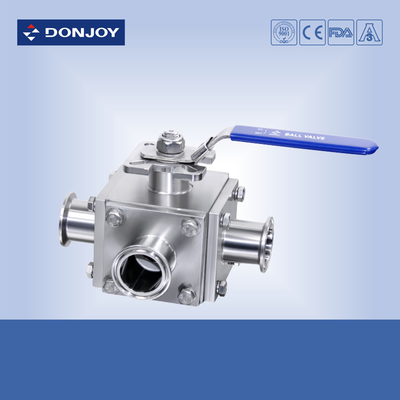

T / L type Manual Sanitary Ball Valve with plastic handle



Size: DN25-DN100, 1"-4"

Connection form: clamped

Structure:floating ball valve

Function: Atmospheric valve

Channel: Tee type

Trademark:DONJOY, OEM will also be welcomed

Specification:DIN, SMS,ISO, IDF,3A,BS

Surface finishing: Internal surface Ra 0.6µm, external surface sandblast.

Control: process controller, valve positioning, C-TOP control unit, AS-I Device net bus communication terminal connection (options), position sensor PNP.NPN(options)



Product Name: Manual T/L type 3 way Non-retention full port ball valve with plastic handle
Valve Body Material: SS304 or SS316L
Seal Material: PTFE
Max. Working Pressure: 10Bar
Max. Working Temperature: 150 degree C
Availably size: DN25-DN100 or 1" - 4"
Availably connection: Weld,Clamp,Thread, Flange
Availably standard: DIN,SMS,3A
Ball Type: Directly
Operated: Manual,Pneumatic,Electric,control Head
Certificate: FDA,CE,3A,ISO
Delivery details Usually within 20 days after receiving T/T down payment

Technical Feature

All-inclusive tee design, no stranded high clean, meet the requirement of CIP and SIP sterilization and cleaning,and heat resistance of 180degree, the highest pressure 30Bar,automatic compensating sealing design, the advantages of samll torque, long service life,



It can be widely used in food, drink, brewing and wine fine chemicals industries.

Besides it has vary flexible body combinations, T-port and L-port ball port can be interchangeable and it guarantees zero dead angle and non rentention.


Competitive Advantage:

Donjoy With advanced technology, excellent quality and perfect after-sales service system, has been assessed for the national high-tech enterprises, the Provincial Famous Trademark, the Trovincial Science and Ttechnology Enterprises, Innovative Enterprises, Patent Model Enterprises, R & D Center, AAA Credit Enterprises.

“DONJOY is the only company that pass nine series of products by American 3A certification organization in Asian sanitary pumps and valves field.”

T / L type Manual  Sanitary Ball Valve with  plastic handle 0T / L type Manual  Sanitary Ball Valve with  plastic handle 1T / L type Manual  Sanitary Ball Valve with  plastic handle 2

Tag: 3 way ball valves, T ype Ball valves, L type Ball valves, Manual Ball valves
