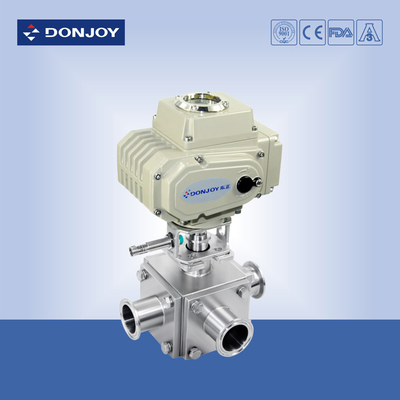

Electric actuator three-way ball valve with T type and full port

Electric actuator three-way ball valve with T type and full port

    • Electric actuator three-way ball valve with T type and full port
    • Electric actuator three-way ball valve with T type and full port
  • Electric actuator three-way ball valve with T type and full port

    Product Details:

    Place of Origin: CHINA
    Brand Name: DONJOY
    Certification: CE,3A,FDA
    Model Number: NO.VQW110Q2

    Payment & Shipping Terms:

    Minimum Order Quantity: 1
    Packaging Details: carton box
    Payment Terms: T/T, LC, Credit Card
    Contact Now
    Detailed Product Description
    Product Name: Ball Valve Size Of Panel: DN10-DN100,1/2"-4"
    Operation: Pneumatic, Control Head,Manual Flow Pattern: 3 Way
    Connection: Welded, Clamped, Thread, Flange Brand: Donjoy
    High Light:

    electric ball valve

    ,

    stainless steel ball valve

    Electric actuator three-way non-retention ball valve with T type and full port



    Description:



    Type of Non-rentention ball valve

    1. Pneumatic 3 way  mon-retention ball valve:

     Can be Chose:    Size: 1"-4"/DN10-DN100 ,  Optinal position feedback

    2. Pneumatic 3 way mon-retention ball valve with positioner

       Can be Chose: Size: 1"-4"/DN10-DN100 , Input:0/4-20mA,0-5/10V, Output:0/4-20mA,0-5/10V

                                 Bus: Device Net Bus, Single/ Double Action

    3. Pneumatic 3 way mon-retention ball valve with C-TOP

    Can be Chose: Size: 1"-4"/DN10-DN100, Power: DC 24V ±10%,Single/ Double Action

                              PLC connection automatically control

     4. Pneumatic 3 way mon-retention ball valve With Mini C-TOP

    5. Pneumatic 3 way mon-retention ball valve With Electric actuator

    Can be choose : Switching Type or Intelligent( 4-20mA) , Postion Feedback, Power DC.24V

    6. Aluminum 3 way mon-retention ball valve  with positioner

    7. Manual 3 Way Ball Valve



    Specification

    Product Name: Electric actuator three-way non-retention ball valve with T type and full port
    Valve Body Material: SS304 or SS316L
    Seal Material: PTFE
    Max. Working Pressure: 10Bar
    Max. Working Temperature: 150 degree C
    Availably size: DN25-DN100 or 1" - 4"
    Availably connection: Weld,Clamp,Thread, Flange
    Availably standard: DIN,SMS,3A
    Ball Type: Directly
    Operated: Manual,Pneumatic,Electric,control Head
    Certificate: FDA,CE,3A,ISO



    Applications:

    The hygienic design of the valve is widely used in the field of food processing, beverages, fruit juices,wine, biopharmaceutical and vary flexible body combinations for example, L-port,or T-port can be interchangeable on site inlet, outlet to be any combination of changes can be guarantee dead angle, no retention.



    Technical Specification



    Size: 1"-4:, DN25-DN100

    Materials: 1.4301/1.4404

    Gasket: PTFE,TFM(FDA 177.1550)

    Temperature: -20°C TO 150°C(Standard)

                            -30°C TO 200°C(option)



    Surface: Internal surface Ra 0.6um, External Surface: Sand Blast



    Electric actuator three-way ball valve with T type and full port 0



    If you need more information,please do not hesitate to contact us.
