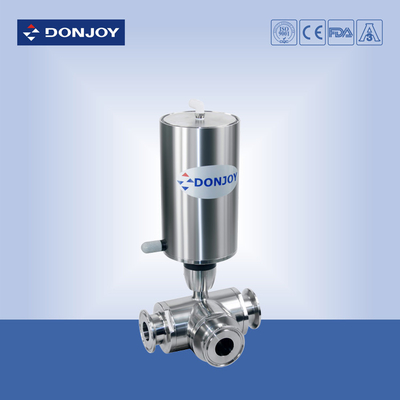

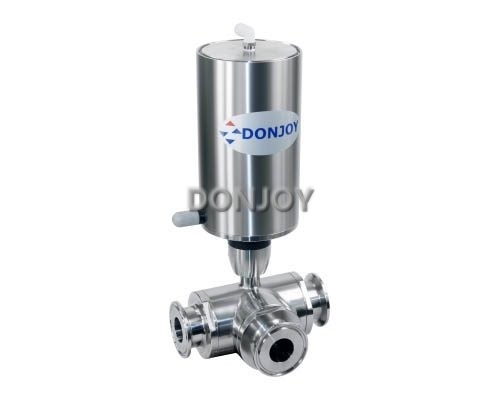

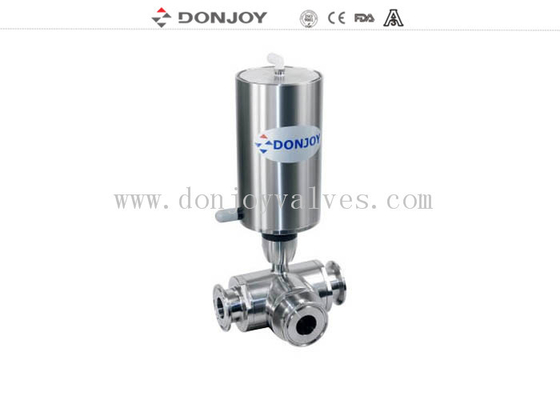

Vertical Pneumatic 3 way ball valve 1/2"-4" SS304 / 316L Materials Clamped

Vertical Pneumatic 3 way ball valve 1/2"-4" SS304 / 316L Materials Clamped

  • Vertical Pneumatic 3 way ball valve 1/2"-4" SS304 / 316L Materials Clamped
  • Vertical Pneumatic 3 way ball valve 1/2"-4" SS304 / 316L Materials Clamped
  • Vertical Pneumatic 3 way ball valve 1/2"-4" SS304 / 316L Materials Clamped
Vertical Pneumatic 3 way ball valve 1/2"-4" SS304 / 316L Materials Clamped
Product Details:
Place of Origin: CHINA
Brand Name: DONJOY
Certification: CE,3A,FDA
Model Number: NO.VQD100Q2
Payment & Shipping Terms:
Minimum Order Quantity: 1
Packaging Details: carton box
Payment Terms: T/T, LC, Credit Card
Contact Now
Detailed Product Description
Product Name: Ball Valve Size Of Panel: DN10-DN100,1/2"-4"
Operation: Pneumatic, Control Head,Manual Pressure:: 10Bar
Connection: Welded, Clamped, Thread, Flange Website: Www.cndonjoy.com
High Light:

electric ball valve

,

pneumatic ball valve

Vertical Pneumatic 3 way ball valve 1/2"-4" SS304 / 316L Materials Clamped



Quickly Detail:

Pneumatica ball valve,

Materials: AISI304, SUS316L

Connection: Clamped, Thread, Welding,Flange

Standard: DIN,3A,SMS,ISO,IDF, RJT..

Ball : T port, L Port

Seal Materials : PTFE



Specification

Product Name: Vertical Pneumatic 3 way ball valve, 1/2"-4", SS304/316L Materials,Clamped
Valve Body Material: SS304 or SS316L
Seal Material: PTFE
Max. Working Pressure: 10Bar
Max. Working Temperature: 120 degree C
Availably size: DN25-DN100 or 1" - 4"
Availably connection: Weld,Clamp,Thread, Flange
Availably standard: DIN,SMS,3A
Ball Type: Directly
Operated: Manual,Pneumatic,Electric,control Head
Certificate: FDA,CE,3A,ISO



Applications:

It is widely used in beverage, brewing, oil refinery, cosmetic, chemical Industrial



Design and Feature



Free of Maintenances

compact and portable

small operating torque

gasket complies with PTFE FDA 177.2600

Hand lever can be installed on the side of the valve body, no matter of the flow direction

It can be installed with pneumatic and electrick acuators.

With Cleaning and drainage port



Delivery time: About 7 days for the samll quantity. And 15-20 days for the mass quantity



Term of conditions: EXW, FOB NINGBO/SHANGHAI, CIF,CFR



Payments Term: T/T,L/C, Western Union.



FAQ:



Q: Can I get some samples?

A:Yes,sample order welcome.



Q: Could I use my own logo or design on goods?

A:Yes.Customized logo and design on production are available.



Q: May I vist your factory?

A:Sure.Welcome anytime.we can also pick you up at airport and station.



Q: Can we trust you and build a long term cooperation

A: Of course. You can tust us and we have more 20 years expenrience on it and we also want to do a long term cooperation with each other.



Q: Any warranty ?

A: For one year warranty for the valves except the easy broken parts.



Vertical Pneumatic 3 way ball valve 1/2"-4" SS304 / 316L Materials Clamped 0

Any other questions,Please do not hesitate to contact us.
