FDA / ISO Pnuematic direct Manual ball valve with Clamped Connection

FDA / ISO Pnuematic direct Manual ball valve with Clamped Connection

electric ball valve

pneumatic ball valve

Place of Origin:

CHINA

Brand Name:

DONJOY

Certification:

CE,3A,FDA

Model Number:

NO.VQD100Q2

Contact Us

Request A Quote
Product Details
Product Name:
Ball Valve
Specificationl:
DN10-DN100,1/2"-4"
Operation:
Pneumatic, Control Head,Manual
Media:
304/316L
Connection:
Welded, Clamped, Thread, Flange
Body Construction:
Directly
Payment & Shipping Terms
Minimum Order Quantity
1
Packaging Details
carton box
Payment Terms
T/T, LC, Credit Card
Product Description

FDA / ISO Pnuematic direct Manual ball valve with Clamped Connection



Quickly Detail:

Size:1/2"-4", DN10-DN100

Materials: AISI 304/1.4301, AISI16L/1.4404

Connection: Welding, Clamp, Thread, Flange

Flow pattern: Directly

Seat material: PTF



Design and Feature

1. Free of Maintenances

2. compact and portable

3. small operating torque

4. gasket complies with PTFE FDA 177.2600

5. Hand lever can be installed on the side of the valve body, no matter of the flow direction

6. It can be installed with pneumatic and electrick acuators.

7. With Cleaning and drainage port



Specification

Product Name: Stainless steel Pnuematic direct ball valve with Clamped Connection
Valve Body Material: SS304 or SS316L
Seal Material: PTFE
Max. Working Pressure: 10Bar
Max. Working Temperature: 120 degree C
Availably size: DN25-DN100 or 1" - 4"
Availably connection: Weld,Clamp,Thread, Flange
Availably standard: DIN,SMS,3A
Ball Type: Directly
Operated: Manual,Pneumatic,Electric,control Head
Certificate: FDA,CE,3A,ISO





Application



Food Industry Yogurt, Ice Cream, Cheese, Soft Drink, Fruit Jelly, Ketchup, Oil, Syrup, Chocolate etc.
Daily Chemicals Facial Foam, Hair Gel, Hair Dyes, Toothpaste, Shampoo, Shoe Polish, Cosmestics etc.
Pharmacy Nutrition Liquid, Chinese Traditional Patent Medicine, Medicine Grease, Biological Products etc.
Chemical Industry Fat, Dissolvent, Resin, Paint, Pigment, Oil Agent etc.
Other Industry Contruction Industry, Plastic Industry, Textile Industry, Coal Floatation Agent etc.

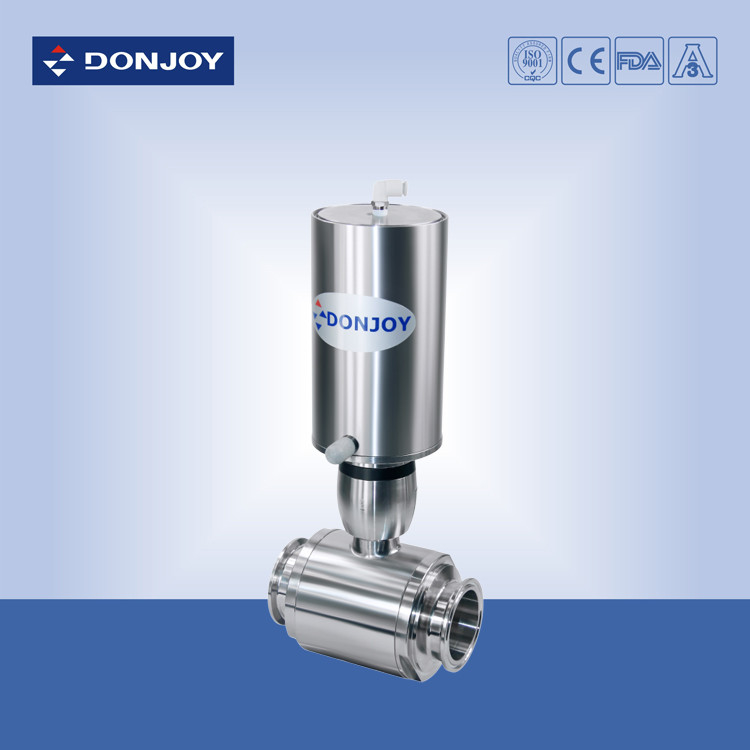

FDA / ISO Pnuematic direct Manual ball valve with Clamped Connection 0

FDA / ISO Pnuematic direct Manual ball valve with Clamped Connection 1



If you need more information,please do not hesitate to contact us.
