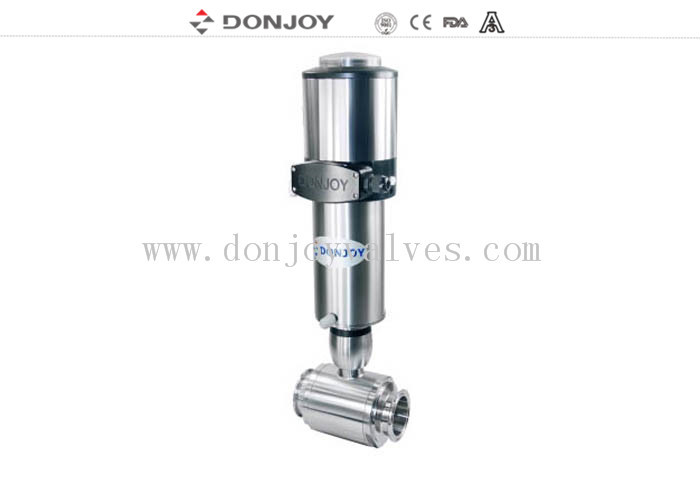

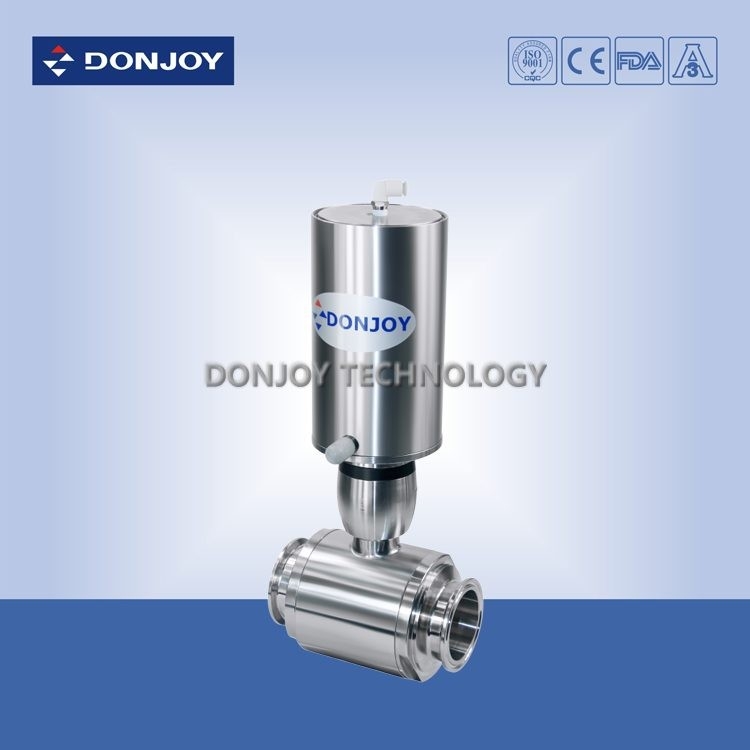

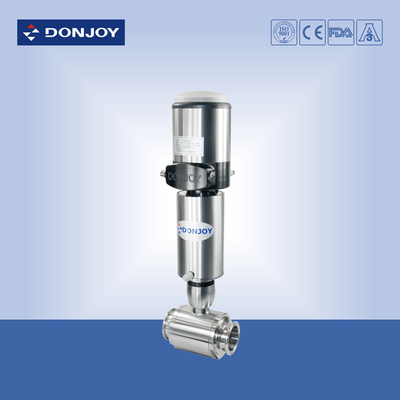

1"-4" Sanitary Ball Valve Stainless steel Pneumatic Clamp with Positioner

1"-4" Sanitary Ball Valve Stainless steel Pneumatic Clamp with Positioner

  • 1"-4" Sanitary Ball Valve Stainless steel  Pneumatic Clamp  with Positioner
  • 1"-4" Sanitary Ball Valve Stainless steel  Pneumatic Clamp  with Positioner
  • 1"-4" Sanitary Ball Valve Stainless steel  Pneumatic Clamp  with Positioner
1"-4" Sanitary Ball Valve Stainless steel  Pneumatic Clamp  with Positioner
Product Details:
Place of Origin: CHINA
Brand Name: DONJOY
Certification: CE,3A,FDA
Model Number: NO.VQD100Q2
Payment & Shipping Terms:
Minimum Order Quantity: 1
Packaging Details: carton box
Payment Terms: T/T, LC, Credit Card
Supply Ability: 100pc/Day
Contact Now
Detailed Product Description
Product Name: Ball Valve Size Of Panel: DN10-DN100,1/2"-4"
Operation: Pneumatic, Control Head,Manual Media: Water
Connection: Welded, Clamped, Thread, Flange Power: DC 24V
High Light:

pneumatic ball valve

,

stainless steel ball valve

1"-4" Sanitary Ball Valve Stainless steel Pneumatic Clamp with Positioner



Quickly Detail:

Size:1/2"-4", DN10-DN100

Structure: Ball

Materials: Stainless steel, AISI 304/1.4301, AISI16L/1.4404

Standard: DIN, SMS, 3A, ISO,RJT....

Connection: Welding, Clamp, Thread, Flange

Flow pattern: Directly

Seat material: PTFE

Operating Type: Manual, Pnumatic, Control Head, Postioner...

Website: www.cndonjoy.com



Specification

Product Name: Stainless steel Pnuematic direct ball valve with Clamped Connection
Valve Body Material: SS304 or SS316L
Seal Material: PTFE
Max. Working Pressure: 10Bar
Max. Working Temperature: 120 degree C
Availably size: DN25-DN100 or 1" - 4"
Availably connection: Weld,Clamp,Thread, Flange
Availably standard: DIN,SMS,3A
Ball Type: Directly
Operated: Manual,Pneumatic,Electric,control Head
Certificate: FDA,CE,3A,ISO



Design and Feature



1. Free of Maintenances

2. compact and portable

3. small operating torque

4. gasket complies with PTFE FDA 177.2600

5. Hand lever can be installed on the side of the valve body, no matter of the flow direction

6. It can be installed with pneumatic and electrick acuators.

7. With Cleaning and drainage port



Application:

It is widely used in beverage, brewing, oil refinery, cosmetic, chemical industrial



1, How about the surface polishing ?

Answer: Ra ≤0.8um



2,  Shipment way choose.

Answer:If small qty package will suggest ship by express or airline,large qty will be ship by sea(LCL/FCL)



3,  How about the delivery time ?

Answer:With the standard products normally delivery time will be10-15days after receive your down payment or full payment.



4. What about the payments Term

Answer: By T/T or L/C at Sight





1"-4" Sanitary Ball Valve Stainless steel  Pneumatic Clamp  with Positioner 0



If you need more informations,Please do not hesitate to contact us.
