Place of Origin:
CHINA
Brand Name:
DONJOY
Certification:
CE,3A,FDA
Model Number:
NO.VQD100Q2
Contact Us

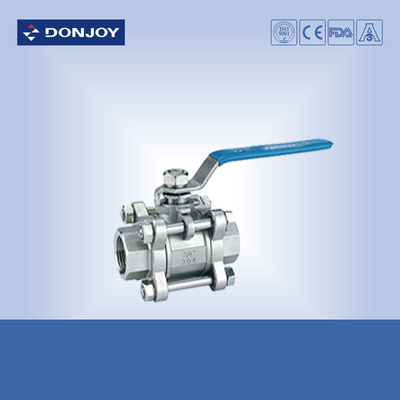

Stainless steel 3pcs industrial full port Ball valve With Female Thread
Detail:
3pcs female ball valve
Connection: Clamped, Thread, Welding
Standard: DIN,3A,SMS,ISO,IDF, RJT..
Applicable medium: Z41H-(16-64)C Water: Oil, Gas
Z41H-(16-64)C Nitric Acid
Z41H-(16-64)C Acetic Acid
Specification
| Product Name: | Stainless steel 3pcs industrial full port Ball valve With Female Thread |
| Valve Body Material: | SS304 or SS316L |
| Seal Material: | PTFE |
| Max. Working Pressure: | 10Bar |
| Max. Working Temperature: | 120 degree C |
| Availably size: | DN8-DN100 or 1/4" - 4" |
| Availably connection: | Weld,Clamp,Thread, Flange |
| Availably standard: | DIN,SMS,3A |
| Nominal pressure | PN 1.6, 2.5, 4.0, 6.0, 9.6MPa |
| Operated: | Manual,Pneumatic |
| Certificate: | FDA,CE,3A,ISO |
Applications:
The ball valve according to 3A and ASME BPE standard design, can be widely used in water, oil, gasoline, food and beverage, wine, chemical and other industires
Technical Feature
Pressure: PN1.6-6.4Mpa
Strength testing pressure(low pressure): 0.6Mpa
Seat Testing Pressure(high pressure): 9.6MPa
Applicable media:
Z41H-(16-64)C Water: Oil, Gas
Z41H-(16-64)C Nitric Acid
Z41H-(16-64)C Acetic Acid
Applicable temperature: -40-180 degree c
Competitive Advantage:
Donjoy With advanced technology, excellent quality and perfect after-sales service system, has been assessed for the national high-tech enterprises Innovative Enterprises, R & D Center, AAA Credit Enterprises.
“DONJOY is the only company that pass nine series of products by American 3A certification organization in Asian sanitary pumps and valves field.”
