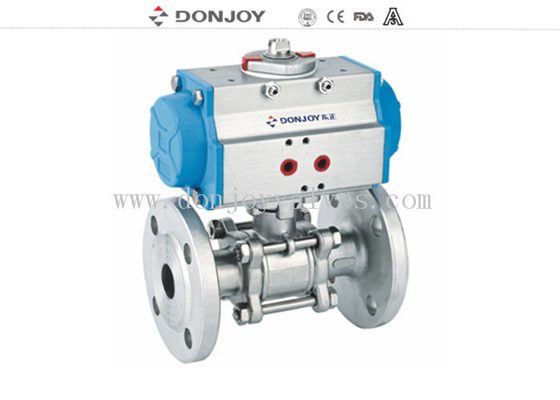

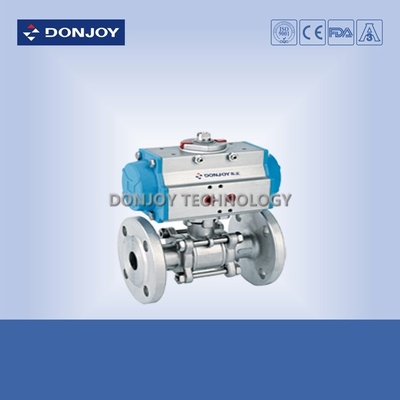

Aluminum Pnuematic Flange ball valve Stainless steel CF8M/CF8 ANSI/ASME

Aluminum Pnuematic Flange ball valve Stainless steel CF8M/CF8 ANSI/ASME

  • Aluminum Pnuematic Flange ball valve Stainless steel CF8M/CF8 ANSI/ASME
  • Aluminum Pnuematic Flange ball valve Stainless steel CF8M/CF8 ANSI/ASME
  • Aluminum Pnuematic Flange ball valve Stainless steel CF8M/CF8 ANSI/ASME
  • Aluminum Pnuematic Flange ball valve Stainless steel CF8M/CF8 ANSI/ASME
Aluminum Pnuematic Flange ball valve Stainless steel CF8M/CF8 ANSI/ASME
Product Details:
Place of Origin: CHINA
Brand Name: DONJOY
Certification: CE,3A,FDA
Model Number: NO.VQD100Q2
Payment & Shipping Terms:
Minimum Order Quantity: 1
Packaging Details: carton box
Payment Terms: T/T, LC, Credit Card
Contact Now
Detailed Product Description
Product Name: 3pcs Pneumatic Ball Valve Size Of Panel: DN10-DN100,1/2"-4"
Operation: Pneumatic,,Manual Media: 304/316L
Connection: Welded, Clamped, Thread, Flange Strength Testing Pressure: PT2.4, 3.8, 6.0, 9.6MPa
High Light:

electric ball valve

,

pneumatic ball valve

Aluminum Pnuematic Flange ball valve Stainless steel CF8M/CF8 ANSI/ASME



Detail:

Pneumatic 3pcs ball valve

Connection: Clamped, Thread, Welding, Flange

Standard: DIN,3A,SMS,ISO,IDF, RJT..



Specification

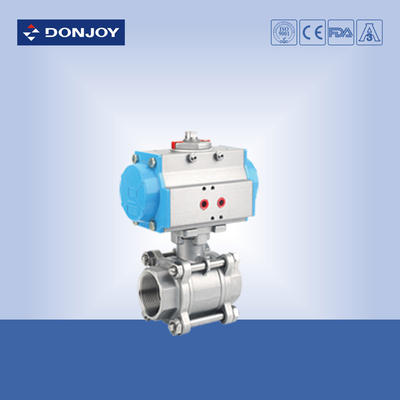

Product Name: Stainless steel Pneumatic 3pcs industrial full port Ball valve With BSP Thread
Valve Body Material: SS304 or SS316L
Seal Material: PTFE
Max. Working Pressure: 10Bar
Max. Working Temperature: -40 to 180 degree C
Availably size: DN-DN100 or 1" - 4"
Availably connection: Weld,Clamp,Thread,
Availably standard: DIN,SMS,3A
Applicable medium water, oil, gas, nitric acid, acetic acid
Operated: Manual,Pneumatic
Certificate: FDA,CE,3A,ISO



Applications:

3pc high platform welding ball valve is suitable for air, steam, water, gas, petroleum and petrochemical products, corrosive media, etc. it is widely used in petroleum, chemical industry, metallurgy, light industry, papermaking, power station, refrigeration and other work fields. 3pc ball valve products have many advantages, such as compact structure, exquisite appearance, intelligent control, excellent performance, excellent quality, easy to use and so on.



Technical Feature

Pressure: PN1.6, 2.5, 4.0, 6.4Mpa
Strength testing pressure(Low pressure): 0.6Mpa
Seat Testing Pressure(high pressure): 9.6MPa
Applicable media:
Z41H-(16-64)C Water: Oil, Gas
Z41H-(16-64)P Nitric Acid
Z41H-(16-64)R Acetic Acid



Drawing

Aluminum Pnuematic Flange ball valve Stainless steel CF8M/CF8 ANSI/ASME 0


Competitive Advantage:

Donjoy With advanced technology, excellent quality and perfect after-sales service system, has been assessed for the national high-tech enterprises, the Provincial Famous Trademark, the Trovincial Science and Ttechnology Enterprises, Innovative Enterprises, Patent Model Enterprises, R & D Center, AAA Credit Enterprises.

Aluminum Pnuematic Flange ball valve Stainless steel CF8M/CF8 ANSI/ASME 1
