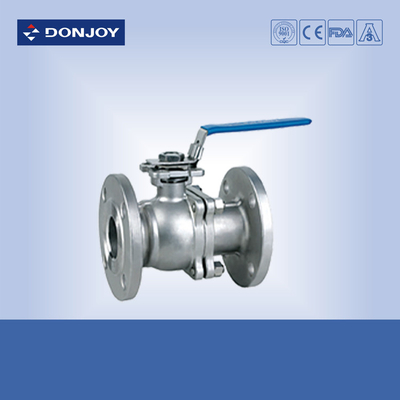

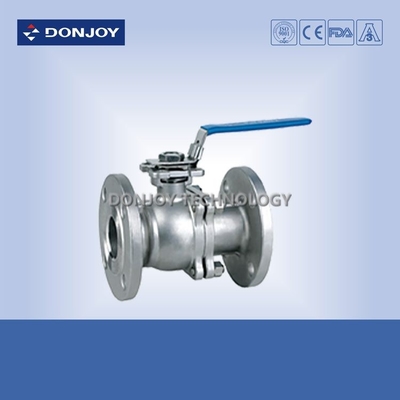

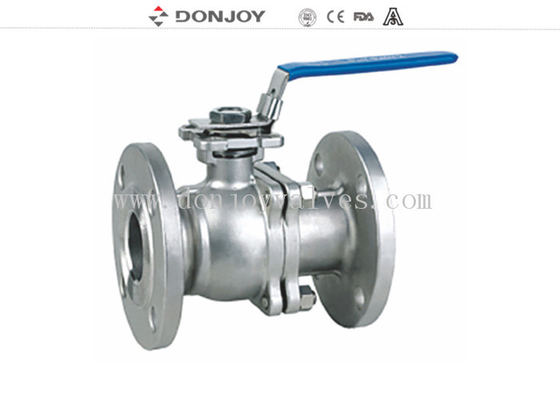

CFM / CFM8 Stainless steel Sanitary Ball Valve , JIS ANSI 150BLS Flanged Ball valve Manual Operation

CFM / CFM8 Stainless steel Sanitary Ball Valve , JIS ANSI 150BLS Flanged Ball valve Manual Operation

  • CFM / CFM8 Stainless steel Sanitary Ball Valve , JIS ANSI 150BLS Flanged  Ball valve Manual Operation
  • CFM / CFM8 Stainless steel Sanitary Ball Valve , JIS ANSI 150BLS Flanged  Ball valve Manual Operation
  • CFM / CFM8 Stainless steel Sanitary Ball Valve , JIS ANSI 150BLS Flanged  Ball valve Manual Operation
CFM / CFM8 Stainless steel Sanitary Ball Valve , JIS ANSI 150BLS Flanged  Ball valve Manual Operation
Product Details:
Place of Origin: CHINA
Brand Name: DONJOY
Certification: CE,3A,FDA
Model Number: NO.VQD100Q2
Payment & Shipping Terms:
Minimum Order Quantity: 1
Packaging Details: carton box
Payment Terms: T/T, LC, Credit Card
Contact Now
Detailed Product Description
Product Name: Ball Valve Size Of Panel: DN10-DN100,1/2"-4"
Operation: Pneumatic, Control Head,Manual Media: 304/316L
Connection: Welded, Clamped, Thread, Flange
High Light:

electric ball valve

,

pneumatic ball valve

CFM/CFM8 Stainless steel JIS,ANSI 150BLS Flange Ball valve,Manual Operation



Detail:

ball valve

Connection: Clamped, Thread, Welding

Standard: DIN,3A,SMS,ISO,IDF, RJT..



Specification

Product Name: CFM/CFM8 Stainless steel JIS,ANSI 150BLS Flange Ball valve,Manual Operation
Valve Body Material: SS304 or SS316L
Seal Material: PTFE
Max. Working Pressure: 10Bar
Max. Working Temperature: 120 degree C
Availably size: DN25-DN100 or 1" - 4"
Availably connection: Weld,Clamp,Thread, Flange
Availably standard: DIN,SMS,3A
Ball Type: Directly
Operated: Manual,Pneumatic,Electric,control Head
Certificate: FDA,CE,3A,ISO



Applications:

The ball valve according to 3A and ASME BPE standard design, mainly used in pharmaceutical, food and beverage, wine, chemical and other industires



Technical Feature

All-inclusive tee design, no stranded high clean, meet the requirement of CIP and SIP sterilization and cleaning,and heat resistance of 180degree, the highest pressure 30Bar,automatic compensating sealing design, the advantages of samll torque, long service life,



Competitive Advantage:

Donjoy With advanced technology, excellent quality and perfect after-sales service system, has been assessed for the national high-tech enterprises, the Provincial Famous Trademark, the Trovincial Science and Ttechnology Enterprises, Innovative Enterprises, Patent Model Enterprises, R & D Center, AAA Credit Enterprises.

“DONJOY is the only company that pass nine series of products by American 3A certification organization in Asian sanitary pumps and valves field.”
