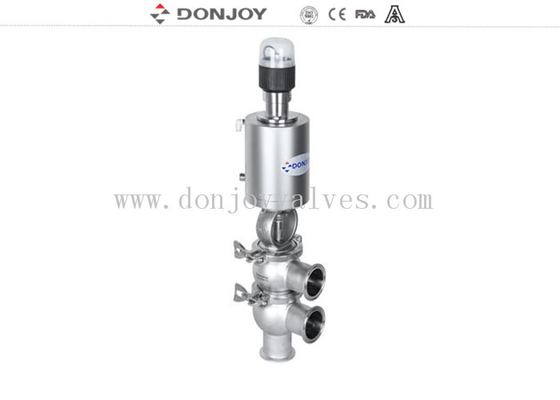

Donjoy 316L sanitary reversing seat valve with pneumatic actuator with control head C-TOP

Large Image : Donjoy 316L sanitary reversing seat valve with pneumatic actuator with control head C-TOP

Product Details:

Place of Origin:	CHINA
Brand Name:	DONJOY
Certification:	CE,3A,FDA

Payment & Shipping Terms:

Minimum Order Quantity:	Negotiation
Price:	US $400 - 1,200 / Piece
Packaging Details:	carton box
Delivery Time:	according to order
Payment Terms:	T/T, LC, Credit Card
Supply Ability:	1000 Piece/Pieces per Month

Contact Now

Detailed Product Description

Material:	SS304 / 316L	Media:	Water Etc.
Operate Mode:	Pneumatic	Size:	DN25 - DN150 Or 1" - 6"
Pressure:	Medium Pressure	Valve Seat:	Single Seat
Structure:	With Pneumatic Control Head	Surface Finish:	Sandblast Or Mirror Polishing
Highlight:	ball valve diaphragm , pressure release valve

Aseptic sanitary reversing seat valve DN25 - DN150 with pneumatic actuator 316L Hygenic valve

Tag
DONJOY Aseptic sanitary reversing seat valve
DONJOY Aseptic pneumatic reversing seat valve
DONJOY Aseptic seat valve

DONJOY Hygenic pneumatic divert seat valve

Specification

Product Name:	Hygenic stainless steel pneumatic divert seat valve with smart control head
Valve Body Material:	304 / 316L
Seal Material:	EPDM (standard) FPM/SILICON/NBR, FDA177.2600
Max Working Pressure:	10 bar
Max.Working Temperature:	130°C
Available size:	DN25 - DN150 or 1" - 6"
Available connection:	Clamp / welding / thread / special connection
Available standard:	3A / DIN / SMS / RJT / ISO / IDF
Operated:	Pneumatic
Design	The stem can be completely cleaned
Stem wash	The stem can be sterilized by cleaning fluid or steam
Function	Have all function of standard divert seat valve
Body seat	Single seat
Structure	Aseptic type
Certificate:	3A/54-02 (1580), PED/97/23/EC, FDA.177.2600, ISO

Material
The material connected with others: AISI 316L / 1.4404
The material in other parts: AISI 304
Seal ring: EPDM FDA 177.2600
Internal surface finish: Ra ≤ 0.8μm
External surface finish: CNC fine machining

Certificate
3A/54-02 (1580),PED/97/23/EC,FDA.177.2600, ISO

Options
Gasket: NBR / MVQ / FPM
The pneumatic actuator of double-acting
Inductive position sensor

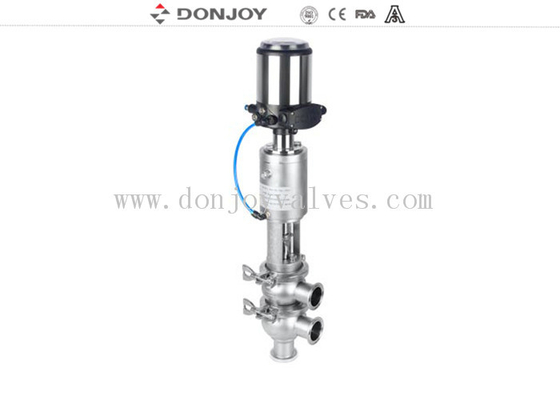

C - TOP control head
Position sensor

Product display

Application

The divert seat valve is applied to the food processing industry, beverage, pharmaceutical

and fine chemicals industries.

Operating Principles

Seat valves are operated automatically by a single-acting or a double-acting pneumatic

actuator. By supplying compressed air, the shaft is moved to place the valve in the "open"

or "closed "position.

The 180-degree rotation of the pneumatic cylinder to realize the interchange of normally

open and normal closed.
