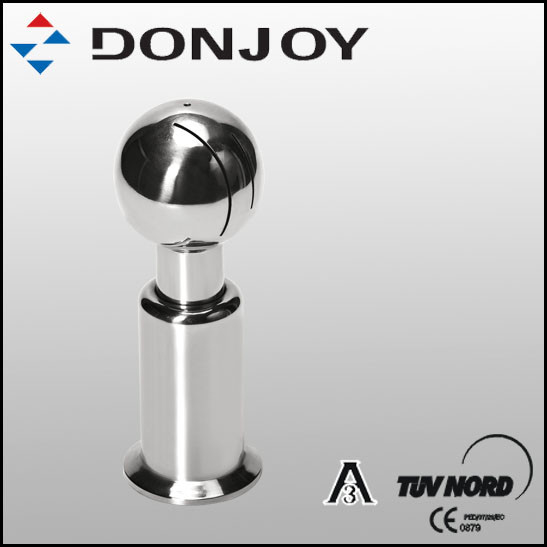

DONJOY Stainless steel sanitray rotating clamped cleaning ball /spray ball

DONJOY Stainless steel sanitray rotating clamped cleaning ball /spray ball

stainless steel spray ball

spray ball for tank cleaning

Place of Origin:

CHINA

Brand Name:

DONJOY

Certification:

CE/FDA/ISO/3A

Contact Us

Request A Quote
Product Details
Brand:
DONJOY
Size:
1-2.5"
Stanadard:
DIN,3A,SMS,ISO
Connection:
Welded, Clamped,Thread,pin Connection
Polished:
Mirror, Matt
Lubrication:
Cleaning Medium
Payment & Shipping Terms
Minimum Order Quantity
1
Packaging Details
Carton, Wooden Case
Payment Terms
T/T,L/C, Credit Card
Product Description

DONJOY Stainless steel sanitray rotating clamped cleaning ball /spray ball



Quick Detail



Stainless steel Revolving Cleaning Ball, Revolve Cleaning Ball, Sanitary Cleaning Ball

Material: SS304, SS316

Specification:1"-2.5", or required

Connection mode : clamped,welded,threaded,bolted



Specification



Product Name:

DONJOY Stainless steel sanitray rotating clamped cleaning ball /spray ball

Material:

SUS304/316L;PTFE

Flow:

4-45m³/h

Inlet Pressure:

2-10 bar

Suggest Pressure:

4bar

Availably  size:

3/8"-2.5"

Connection way:

thread BSP,clamp Pin, Welded

Max temperature:

  95°C

Max environment temperature:

140°C

Application Scope:

Widely used  in food and diary products ,Pharmaceutical, Chemicl treatment,Transport equipment, Beverage

Typical application:

process containers and reactor; tank; transport irrigation equipment; fermentation; yeast breeding

Advantages:

Self-cleaning; low liquid consumption; heath design

Typical cleaning methods:

fixed installation CIP system

Packaging Details:

Bubble pack for each. Outside packing are carton or plywood cases. Or as per the request of customers.

Delivery details:

Usually within 20 days after receiving T/T down payment.
















































Clamped Rotary Cleaning Ball

Q Size



OD

T Ht Hs 2Bar
Spray Radius(M) Cleaning Radius(m) Flow Rat(m³/H)
28 1/2” 12.9 25.4 101.2 94.2 2.5 1.1 2.5
3/4” 19.2 25.4 101.2 94.2 2.8 1.2 2.8
1” 25.7 50.5 101.2 94.2 2.8 1.3 3.0
45 3/4” 19.2 25.4 137. 125.2 3.0 2.2 6
1” 25.7 50.5 137.2 125.2 3.4 2.5 6.5
1.25” 32.1 50.5 137.2 125.2 3.5 2.6 7
65 1.25” 32.1 50.5 175.7 159.7 4.0 3.0 12
1.5” 38.4 50.5 175.7 159.7 4.2 3.1 15
2” 51.1 65 177.7 161.7 4.5 3.2 16
75 1.5” 38.4 50.5 204.7 184.7 6.0 4.1 18
2” 51.1 64 204.7 194.7 6.5 4.2 22
2.5” 63.8   205.7 185.7 7.0 4.4 25













































Export Documents

1. 3.1 Certificate ( Quality Material  Certificate)

2. Country of Original ( CO, FORM E,Form A..)

3. Surface Report Certificate

4.Packing List

5.Commercial Invoice



Packing and Delivery :

Packing Details:1st step:washing and cleaning; 2nd step:shrink wrap; 3rd step: carton packing ; 4th step:standard exported plywood case package Besides,We will sign on the surface of eah carton of the customer's order number,quantity pcs per carton,size and etc.

Delivery Detail:7-15Days



Payments : T/T, Westerm Union, L/C Credit Card



If you need morning information,Please do not hesitate to contact us.
