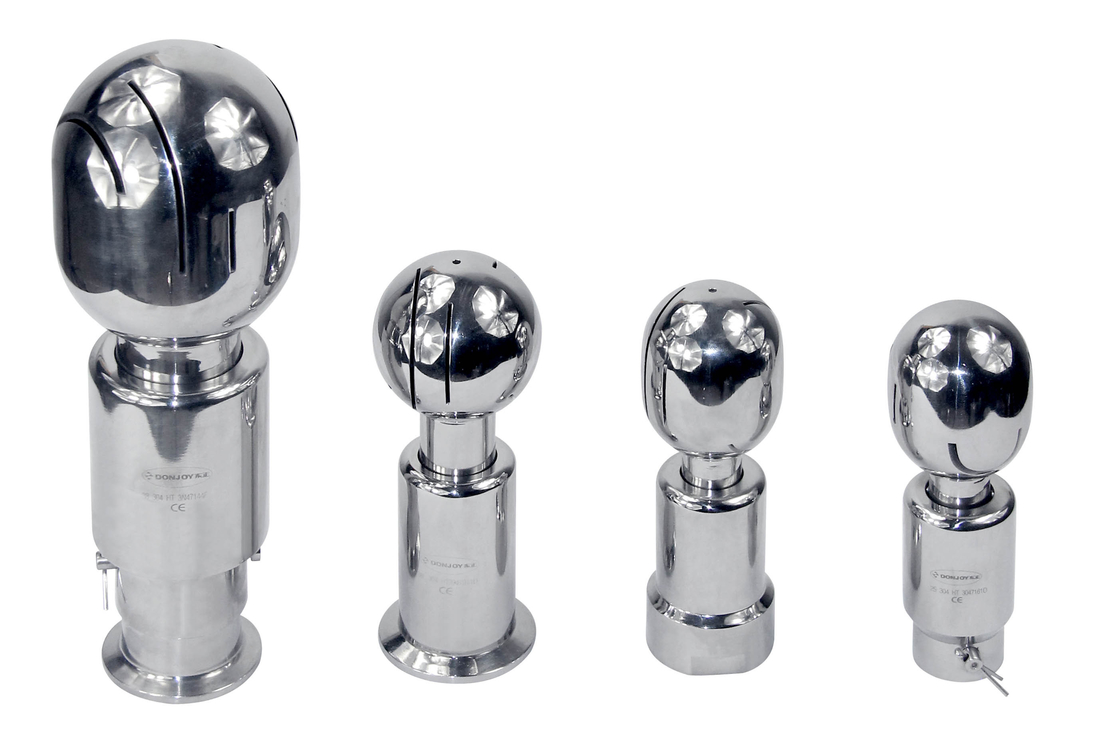

SS316L 2" BSP Thread Elliptial Rotating Cip Tanks Spray Ball ,Sanitary Cleaner
sanitary Rotary cleaning ball. spray ball
material: SS304,316,316L
size: DN25-DN100, 1"-4"
Coneection way: thread,welded,Clamp(quick end)
Surface finishing: Mirro polish ,Matt polish
Specification
|
Product Name: |
SS316L, 2" BSP Thread Elliptial ball cleaner, Spary tank cleaning Ball |
|
Material: |
SUS304/316L;PTFE |
|
Flow: |
4-45m³/h |
|
Inlet Pressure: |
4-10 bar |
|
Suggest Pressure: |
6 bar |
|
Availably size: |
1"-2.5" |
|
Connection way: |
thread BSP,clamp Pin, Welded |
|
Max temperature: |
95°C |
|
Max environment temperature: |
140°C |
|
Application Scope: |
Widely used in food and diary products ,Pharmaceutical, Chemicl treatment,Transport equipment, Beverage |
|
Typical application: |
process containers and reactor; tank; transport irrigation equipment; fermentation; yeast breeding |
|
Advantages: |
Self-cleaning; low liquid consumption; heath design |
|
Typical cleaning methods: |
fixed installation CIP system |
|
Packaging Details: |
Bubble pack for each. Outside packing are carton or plywood cases. Or as per the request of customers. |
|
Delivery details: |
Usually within 20 days after receiving T/T down payment. |
Drawing
Typical Application
1. Fixedinstallaiton CIP System
2. Process Containers and reator
3. Store tank
4. Transport tank equipment
5. Fermentation
6. Yeast Breeding

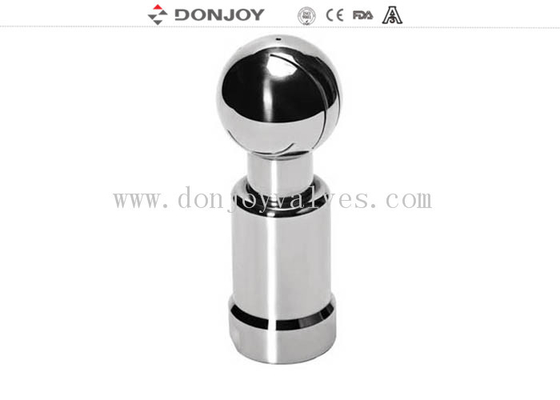

Rotary Cleaning Ball
| Q | G | Ht | Hs | 2Bar | ||
| Spray Radius(M) | Cleaning Radius(m) | Flow Rat(m³/H) | ||||
| 28 | 3/8" BSP | 87.5 | 80.5 | 2.5 | 1.1 | 2.5 |
| 1/2" BSP | 90.5 | 83.5 | 2.8 | 1.2 | 2.8 | |
| 3/4" BSP | 94.5 | 87.5 | 2.8 | 1.3 | 3.0 | |
| 45 | 1/2" BSP | 122.5 | 110.5 | 3.0 | 2.2 | 6 |
| 3/4" BSP | 126.5 | 114.5 | 3.4 | 2.5 | 6.5 | |
| 1" BSP | 130.5 | 118.5 | 3.5 | 2.6 | 7 | |
| 65 | 1" BSP | 163.5 | 147.5 | 4.0 | 3.0 | 12 |
| 1.25" BSP | 165.5 | 149.5 | 4.2 | 3.1 | 15 | |
| 1.5" BSP | 168.5 | 152.5 | 4.5 | 3.2 | 16 | |
| 75 | 1.25" BSP | 191.5 | 171.5 | 6.0 | 4.1 | 18 |
| 1.5" BSP | 194.5 | 174.5 | 6.5 | 4.2 | 22 | |
| 2" BSP | 202.5 | 182.5 | 7.0 | 4.4 | 25 | |
