Place of Origin:
CHINA
Brand Name:
DONJOY
Certification:
CE/FDA/ISO/3A
Contact Us

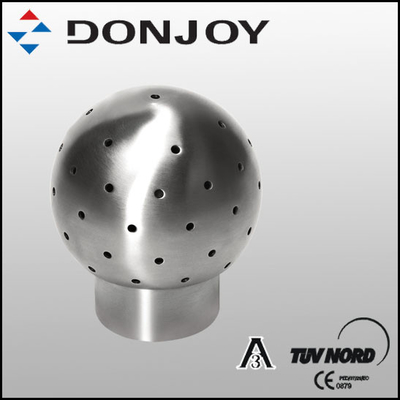

Food Grade 360 Degree Fixed Tank Spray Balls For Beverage Transport Equipment
Quick Detail
Cleaning Ball
Type: 360 Degree, 180 Degree, 270 Degree
Size:1"-2.5"
Connection: Thread, Welded, Clamped, Bolted
Specification
Product Name: |
Fixed Cleaning Ball, Clean Head, Pin Connection, 360Degree spray |
| Material: | SUS304/316L;PTFE |
| Flow: | 4-45m³/h |
| Inlet Pressure: | 4-10 bar |
| Suggest Pressure: | 6 bar |
| Availably size: | 1"-2.5" |
| Connection way: | thread BSP,clamp Pin, Welded |
| Max temperature: | 95°C |
| Max environment temperature: | 140°C |
| Application Scope: | Widely used in food and diary products ,Pharmaceutical, Chemicl treatment,Transport equipment, Beverage |
| Typical application: | process containers and reactor; tank; transport irrigation equipment; fermentation; yeast breeding |
| Advantages: | Self-cleaning; low liquid consumption; heath design |
| Typical cleaning methods: | fixed installation CIP system |
| Packaging Details: | Bubble pack for each. Outside packing are carton or plywood cases. Or as per the request of customers. |
Typical Application
1. Fixedinstallaiton CIP System
2. Process Containers and reator
3. Store tank
4. Transport tank equipment
5. Fermentation
6. Yeast Breeding
Clamped Fixed Tank cleaning Ball Selection Table
| Size | Q | A | Pressure(Bar) | Spray Radius(m) | Flow Rate |
| 1” |
63
|
80 | 2.5 | 1.0-1.25 | 17/10 |
| 1.25” | 76 | 93 | 2.5 | 1.25-1.75 | 23/17 |
| 1.5” | 76 | 93 | 2.5 | 1.25-1.75 | 23/17 |
| 2” | 91 | 108 | 3.5 | 2.0-3.0 | 55/38 |
| 2.5” | 100 | 115 | 3.5 | 3.0-3.5 | 58/41 |
Application: For the beverage, food and chemecial Tank Cleaning
Our Services
1. Reply your inquiry within 24 hours.
4. Best after-sale service. We accept return if the products is not right specification or damaged when arrived.
5. Payment Term:T/T , Western Union,Paypal
6. Delivery Term: China Post/ TOLL/ DHL/ UPS/FEDEX Express; Air/ Sea Transportation
7. All products can be customised.
If you need more informations,Please do not hesitate to contact us.
