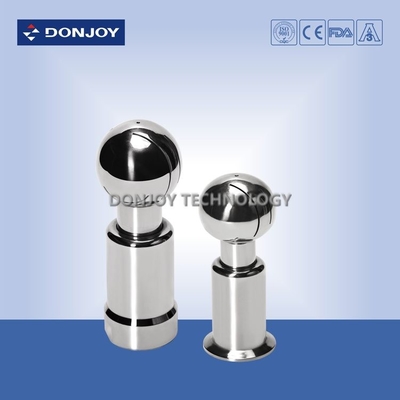

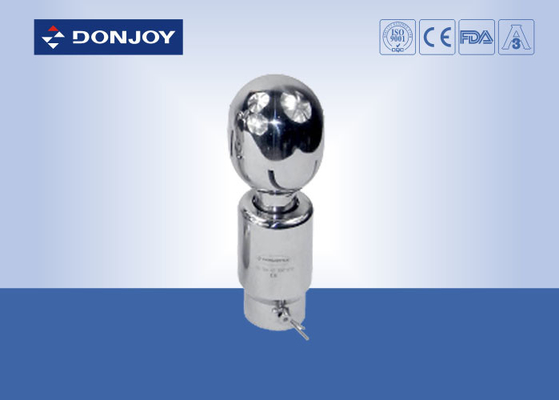

Elliptial / Round Rotary Tank Spray Balls 1/2" - 2.5" Welded Connection

Elliptial / Round Rotary Tank Spray Balls 1/2" - 2.5" Welded Connection

  • Elliptial / Round Rotary Tank Spray Balls 1/2" - 2.5" Welded Connection
  • Elliptial / Round Rotary Tank Spray Balls 1/2" - 2.5" Welded Connection
  • Elliptial / Round Rotary Tank Spray Balls 1/2" - 2.5" Welded Connection
Elliptial / Round Rotary Tank Spray Balls 1/2" - 2.5" Welded Connection
Product Details:
Place of Origin: CHINA
Brand Name: DONJOY
Certification: CE/FDA/ISO/3A
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: $10 per piece
Packaging Details: Carton, Wooden Case
Payment Terms: T/T,L/C, Credit Card
Supply Ability: 3000 pcs per month
Contact Now
Detailed Product Description
Brand: DONJOY SIZE: 1/2"-2.5"
Stanadard: DIN,3A,SMS,ISO Connection: Welded, Clamped,Thread,pin Connection
Polished: Mirror, Matt Material: Stainless Steel
High Light:

spray balls stainless steel

,

spray ball for tank cleaning

Elliptial / Round Rotary Tank Spray Balls 1/2" - 2.5" Welded Connection



Quick Detail

Cleaning Ball

Type: 360 Degree, 180 Degree, 270 Degree



Specification



Product Name:

Rotary Tank cleanerl. Spary claing ball, Elliptial / Round Ball,Thread Connection

Material:

SUS304/316L;PTFE

Flow:

4-45m³/h

Inlet Pressure:

4-10 bar

Suggest Pressure:

6 bar

Availably  size:

1"-2.5"

Connection way:

thread BSP,clamp Pin, Welded

Max temperature:

  95°C

Max environment temperature:

140°C

Application Scope:

Widely used  in food and diary products ,Pharmaceutical, Chemicl treatment,Transport equipment, Beverage

Typical application:

process containers and reactor; tank; transport irrigation equipment; fermentation; yeast breeding

Advantages:

Self-cleaning; low liquid consumption; heath design

Typical cleaning methods:

fixed installation CIP system

Packaging Details:

Bubble pack for each. Outside packing are carton or plywood cases. Or as per the request of customers.

Delivery details:

Usually within 20 days after receiving T/T down payment.


























































Typical Application

1.Fixedinstallaiton CIP System

2.Process Containers and reator

3.Store tank

4.Transport tank equipment

5.Fermentation

6.Yeast Breeding



Drawing

Elliptial / Round Rotary Tank Spray Balls 1/2" - 2.5" Welded Connection 0

Elliptial / Round Rotary Tank Spray Balls 1/2" - 2.5" Welded Connection 1



Operating Principle

1.      Rotary injector is hygenic tank cleaner,with 360degree coverage in a given tank or process container, the rotary jet head is driven by flow liquid through impeller in the pressure and flow increase will increase the length of the jet and the impact to the tank or vessel surface

2.      Rotary injector with unique self cleaning funciton, internal is completely cleaning.



Elliptial / Round Rotary Tank Spray Balls 1/2" - 2.5" Welded Connection 2

Elliptial / Round Rotary Tank Spray Balls 1/2" - 2.5" Welded Connection 3
