| Place of Origin: | CHINA |
| Brand Name: | DONJOY |
| Certification: | CE/FDA/ISO/3A |
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | $8/pc |
| Packaging Details: | Carton, Wooden Case |
| Payment Terms: | T/T,L/C, Credit Card |
| Supply Ability: | 3000pcs per month |
| Brand: | DONJOY | SIZE: | 1",1.5" |
|---|---|---|---|
| Stanadard: | DIN,3A,SMS,ISO | Connection: | Welded, Clamped,Thread |
| Polished: | Mirror, Matt | Material: | Stainless Steel |
| High Light: | spray balls stainless steel,stainless steel spray ball |
||

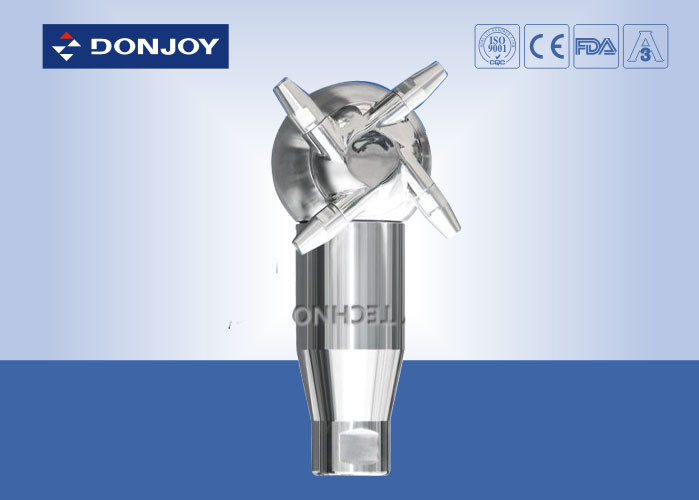

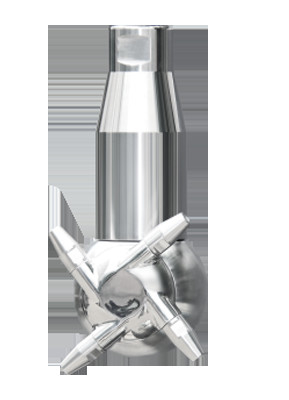

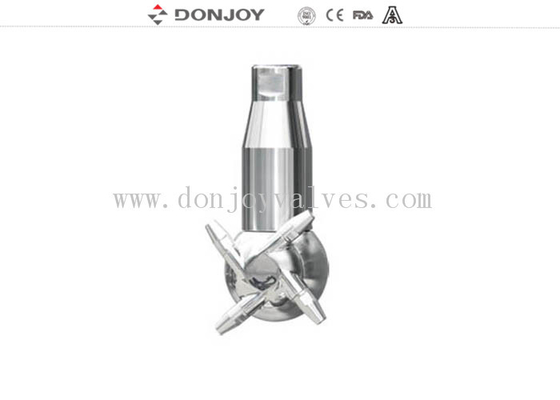

Food Machinery Tank Spray Balls 360° Inject Mirror / Matt Polished
Quick Detail
Cleaning Ball
Type: 360 Degree, 180 Degree, 270 Degree
Nozzle Size:5mm, 6mm,7mm, 8mm..
Specification
|
|
rotary jet head 360°,inject, Tank cleaner, 1.5" BSP Thread connection |
|
Material: |
SUS304/316L;PTFE |
|
Flow: |
4-45m³/h |
|
Inlet Pressure: |
4-10 bar |
|
Suggest Pressure: |
6 bar |
|
Availably size: |
1.5"-DN40, 1", 2" |
|
Connection way: |
thread BSP,clamp, NPT... |
|
Max temperature: |
95°C |
|
Max environment temperature: |
140°C |
|
Application Scope: |
Widely used in food and diary products ,Pharmaceutical, Chemicl treatment,Transport equipment, Beverage |
|
Typical application: |
process containers and reactor; tank; transport irrigation equipment; fermentation; yeast breeding |
|
Advantages: |
Self-cleaning; low liquid consumption; heath design |
|
Typical cleaning methods: |
fixed installation CIP system |
|
Packaging Details: |
Bubble pack for each. Outside packing are carton or plywood cases. Or as per the request of customers. |
|
Delivery details: |
Usually within 20 days after receiving T/T down payment. |
Typical Application
1.Fixedinstallaiton CIP System
2.Process Containers and reator
3.Store tank
4.Transport tank equipment
5.Fermentation
6.Yeast Breeding
Advantange:
Self-Cleaning
Low liquid Consumption
Hygenic Design
Operating Principle
1. Rotary injector is hygenic tank cleaner,with 360degree coverage in a given tank or process container, the rotary jet head is driven by flow liquid through impeller in the pressure and flow increase will increase the length of the jet and the impact to the tank or vessel surface
2. Rotary injector with unique self cleaning funciton, internal is completely cleaning.
Packing and Delivery:
Packing Detail: Carton Box and Plywood Case
Delivery Detial: Normally 5-7 Days after payments
Conditions: EXW, FOB,CIF...
Payments Term: T/T,Western Union, L/C
If you need more informations,Please do not hesitate to contact us.
