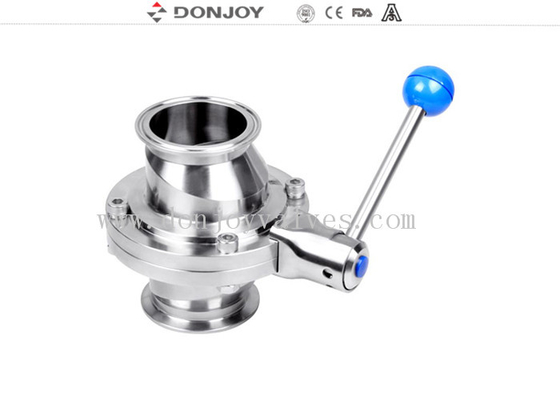

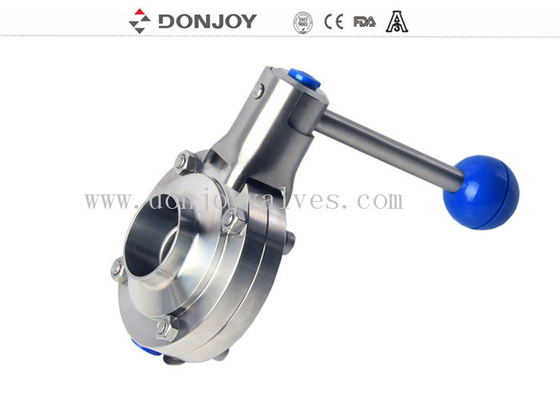

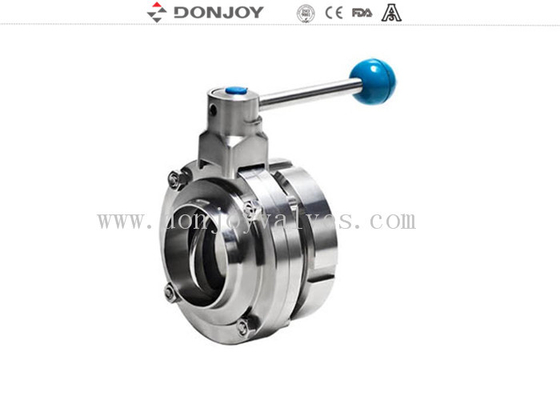

1.5" Silicone Gasket Sanitary Butterfly Tri Clamp Valve

1.5" Silicone Gasket Sanitary Butterfly Tri Clamp Valve

    • 1.5" Silicone Gasket Sanitary Butterfly Tri Clamp Valve
    • 1.5" Silicone Gasket Sanitary Butterfly Tri Clamp Valve
    • 1.5" Silicone Gasket Sanitary Butterfly Tri Clamp Valve
  • 1.5" Silicone Gasket Sanitary Butterfly Tri Clamp Valve

    Product Details:

    Place of Origin: China
    Brand Name: DONJOY
    Certification: CE,3A,FDA

    Payment & Shipping Terms:

    Minimum Order Quantity: 1
    Price: negotiation
    Packaging Details: carton box
    Delivery Time: 5-30 working days
    Payment Terms: T/T, LC, Credit Card
    Supply Ability: 500pcs per month
    Contact Now
    Detailed Product Description
    Product Name: SS Butterfly Valve Materials: 304 / 316L
    Size: 1 Inch - 12 Inch/DN25-DN300 Operation Mode: Manual
    Connection: Clamp Ends Structure: Butterfly
    Level: Stainless Steel Pull Handle
    High Light:

    Sanitary Butterfly Tri Clamp Valve

    ,

    Silicone Gasket Tri Clamp Valve

    ,

    1.5" Clamp Type Butterfly Valves

    Sanitary Butterfly Tri Clamp Valve with Silicone Gasket SUS304 1.5 Inch Tri Clamp Clover Type (1.5" Tube OD)

    Specifications

    Product Name:

    Sanitary butterfly tri clamp valve with silicone gasket

    Valve Body Material:

    SS304/316L

    Seal Material:

    EPDM (standard) FPM/SILICON/NBR, FDA177.2600

    Max Working Pressure:

    10Bar

    Max.Working Temperature:

    120 degree C

    Available  size:

    1''-12'', DN25-DN300

    Available connection:

    Clamp/welding/thread/special connection

    Available standard:

    3A/DIN/SMS/RJT/ISO/IDF

    Operated:

    Manual,Pneumatic, Electric

    Handle application:

    Two-position handle, three-position handle, four-position pull handle, multi-position plastic handle and multi-position stainless steel handle

    Control:

    Smart valve positioner / C-TOP control / position sensor

    Certificate

    3A/54-02 (1580), PED/97/23/EC, FDA.177.2600, ISO

    Application scope:

    Dairy,food, beverage, pharmacy, cosmetic, etc

    Installation:

    Could be installed on various valves


    Multi - position handle:

    Of different level which could be chosen according to your requirement


    Drawing
    1.5" Silicone Gasket Sanitary Butterfly Tri Clamp Valve 0
    1.5" Silicone Gasket Sanitary Butterfly Tri Clamp Valve 1


    Technical specification
    1.Max pressure:10bar 1/2",DN10-DN300,5 bar (DN200/DN300)
    2.Min.pressure:0.2 bar p.abs
    3.Operation temperature:-10℃ to 120 ℃ (EPDM)
    4.DONJOY has more than 20 years of experience in the production of butterfly valves, to ensure the best performance and best application choice for each butterfly valve. We can provide customers with the best configuration plan.
    5.The valve body and valve plate adopts the integral forging process, and the CNC cutting center is processed at one time to ensure the machining accuracy of each valve body.
    6.Sealing imported from Europe, meet with FDA177.2600; 3-A-18-03
    7.The butterfly valves we produce are of various styles, and the manual, pneumatic and electric are interchangeable. Each pneumatic can be equipped with a control unit, position feedback, valve positioner, and other configuration requirements for different needs. Various manual styles can be interchanged without additional accessories
    8.Full degreasing treatment
    9.All accessories are forged

    Advantage
    We have produced more than 2.5 million butterfly valves so far

    Handle selection
    Two-position handle;
    Three-position handle;
    Four-position pull handle;
    Multi-position plastic handle;
    Multi-position stainless steel handle

    1.5" Silicone Gasket Sanitary Butterfly Tri Clamp Valve 2
    Connection
    Clamped, welded and threaded etc.
    Packaging Details
    Bubble pack for each valve.
    Outside packing is carton or plywood cases.
    Or as per the request of customers.

    Delivery details
    Usually within 20 days after receiving T/T down payment.

    1.5" Silicone Gasket Sanitary Butterfly Tri Clamp Valve 3
    1.5" Silicone Gasket Sanitary Butterfly Tri Clamp Valve 4
