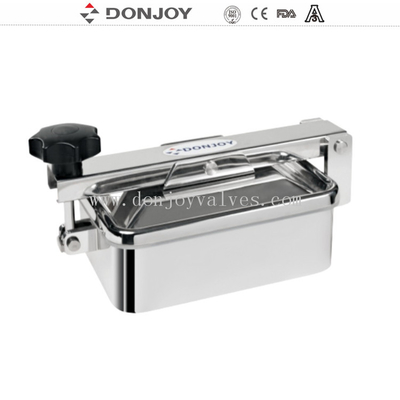

1 Bar Outward Opening Pressure Rectangular Manway 235x185mm

1 Bar Outward Opening Pressure Rectangular Manway 235x185mm

    • 1 Bar Outward Opening Pressure Rectangular Manway 235x185mm
    • 1 Bar Outward Opening Pressure Rectangular Manway 235x185mm
    • 1 Bar Outward Opening Pressure Rectangular Manway 235x185mm
  • 1 Bar Outward Opening Pressure Rectangular Manway 235x185mm

    Product Details:

    Place of Origin: CHINA
    Brand Name: DONJOY
    Certification: CE/FDA/ISO/3A

    Payment & Shipping Terms:

    Minimum Order Quantity: 1
    Price: Negotiation
    Packaging Details: Carton, Wooden Case
    Delivery Time: 5-30 working days
    Payment Terms: T/T,L/C, Credit Card
    Supply Ability: 100pcs/Day
    Contact Now
    Detailed Product Description
    Brand: DONJOY Dimension: 235x185mm
    Stanadard: DIN,3A,SMS,ISO Connection: Weled
    Polished: Mirror, Matt Height: 80mm,90mm,100mm
    High Light:

    1 bar rectangular manway

    ,

    235x185mm rectangular manway

    ,

    80mm Rectangular Manway

    DONJOY Stainless Steel 304/316 1bar Outward Opening Pressure Rectangular Manway 235x185mm


    Quick Detail
    Manhole Cover,Square Manway
    Demission:180x120mm,235x185mm,280x200mm
    Height:80mm,90mm,100mm
    Type: Square pressure
    Handle: Plastic wheels, Stainless Steel wheel



    Specifications

    Product Name:

    Tank square pressure manway

    Material:

    AISI304, AISI316L

    Size:

    180x120mm,235x185mm,280x200mm

    Finish:

    Ra ≤0.8um,Mirror, 320Grit, 180Grit, 240Grit

    Connection:

    Welded

    Standard:

    DIN,3A,SMS,ISO

    Certificate:

    CE, ISO9001/2008, 3A

    Pressure:

    0.2-1bar

    Packaging Details:

    Shrink wrapped - carton - pallet . Or as per the request of customers



    Drawing



                                                                                Size
    1 Bar Outward Opening Pressure Rectangular Manway 235x185mm 0 Outside diameter Height Thickness
    180x120 80 3
    90

    3

    100 3
    235x185 80 6
    90 6
    100 6
    280x200 80 6
    90 6
    100 6

    Unit: mm



    Application

    The manhole cover is mainly used for tanks in the fields of food, beverage , chemical,etc



    Technical Information:
    Gasket: EPDM,NBR,SILICONE,FPM in accordance with FDA177.1600
    Working Pressure:2-5Bar
    Fineness: inner and outer fineness of mirror Ra≤0.8μm, inner and outer mechanical polish and electrical polish Ra 0.2μm, the external surface can be gross polished or sub-gross polished.
    Application:dairy , food , chemical ,beverage ,pharmaceuticals ,water treatment ,beer etc .It is used as cap on the top of the vessel,tank etc

    Outward opening manhole cover



    Manhole cover optional

    1.Glass pressure manhole cover

    2.Non pressure round manhole cover

    3.Pressure man hole cover

    4.High pressure manhole cover

    5.Elliptical man hole cover

    6.Square manhole cover

    7.Rectangular manway


    Question:
    1. What about the delivery time of the manhole cover
    Answer: Normally Takes about 7-10 days
    2.How about the Surface
    Answer: Our standard with mirror inside and outside satin polish side.If you have requirements in Ra,please let me know it.
    3. The height of the square Manhole:
    Answer: Our standard with 65mm Height, 8mm thickness. Or if you have requirements, we also can be according it to custom.
    4.Can you do as a specific size and print our logo on it?
    Answer: Yes, We support specifications customize and personalized customization If you need more information or catalogs,please contact us freely.


    Tag: pressure manhole cover. 5Bar pressure manway, 3Bar pressure tank cover
