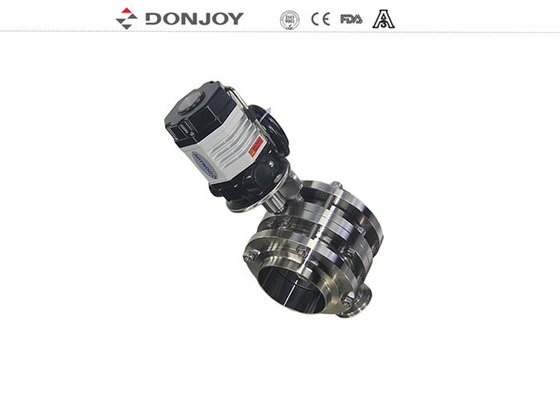

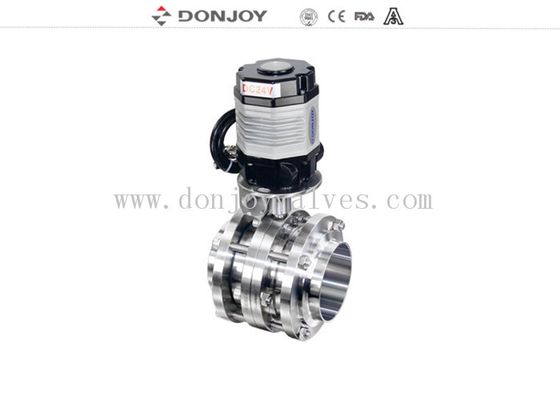

2" SS316 Tank Bottom 3PC sanitary butterfly valve With Actuator

2" SS316 Tank Bottom 3PC sanitary butterfly valve With Actuator

    • 2" SS316 Tank Bottom 3PC sanitary butterfly valve With Actuator
    • 2" SS316 Tank Bottom 3PC sanitary butterfly valve With Actuator
  • 2" SS316 Tank Bottom 3PC sanitary butterfly valve With Actuator

    Product Details:

    Place of Origin: China
    Brand Name: DONJOY
    Certification: CE,3A,FDA

    Payment & Shipping Terms:

    Minimum Order Quantity: 1
    Price: negotiation
    Packaging Details: carton box or wooden box
    Delivery Time: 5-30 working days
    Payment Terms: T/T, LC, Credit Card
    Supply Ability: 500pcs per month
    Contact Now
    Detailed Product Description
    Product Name: Electric 3PC Butterfly Valve Materials: 304 / 316L
    Size: 1/2"-2.5",DN10-DN65 Operation: Electric
    Connection: Welded Feature: Butterfly
    Structure: With Mini Type Electric Actuator
    High Light:

    3PC Sanitary Butterfly Valve

    ,

    2" Sanitary Butterfly Valve

    ,

    3PC automatic butterfly valve

    Sanitary 2" SS316 tank bottom 3PC butterfly valve with 4-20mA mini type electric actuator

    Specifications

    Product Name:

    Sanitary 2" SS316 tank bottom 3PC butterfly valve with 4-20mA mini type electric actuator

    Valve Body Material:

    SS304/316L

    Seal Material:

    EPDM (standard) FPM/SILICON/NBR, FDA177.2600

    Max Working Pressure:

    10Bar

    Max.Working Temperature:

    120 degree C

    Available  size:

    DN10-DN65, 1/2"-2.5"

    Available connection:

    Clamp/welding/thread/flange

    Available standard:

    3A/DIN/SMS/RJT/ISO/IDF

    Operated:

    Manual, Pneumatic, Electric

    Control:

    Electronic

    Certificate:

    3A/54-02 (1580), PED/97/23/EC, FDA.177.2600, ISO

    Application scope:

    Dairy,food, beverage, pharmacy, cosmetic, etc

    Packaging Details:

    Bubble pack for each valve. Outside packing is carton or plywood cases. Or as per the request of customers.

    Delivery details:

    Usually within 20 days after receiving T/T down payment.



                                                                 Mini Electric actuator
    2" SS316 Tank Bottom 3PC sanitary butterfly valve With Actuator 0 Size Function Torque and of/off    time           Recommend valve size
    Butterfly valve Ball valve
    DJ-02 On/off type,active output

    18N.M-60s

    (standard)

    9N.N-7s

    (optional)

    ≤2.5"-DN65

    (18n.m-60s)

    ≤1.5"-DN40

    (9n.m-7s)

    ≤1"-DN25

    (18n.m-60s)

    ≤3/4"-DN15

    (9n.m-7s)

    On/off type, passive output
    Intelligent type,4-20mA input/output



    Valve Drawing

    2" SS316 Tank Bottom 3PC sanitary butterfly valve With Actuator 1

    2" SS316 Tank Bottom 3PC sanitary butterfly valve With Actuator 2

    2" SS316 Tank Bottom 3PC sanitary butterfly valve With Actuator 3


    Material
    The material connected with others: AISI 316L / 1.4404
    The material in other parts: AISI 304
    Seal ring: EPDM FDA 177.2600
    Internal surface finish: Ra ≤ 0.8μm
    External surface finish: CNC fine machining

    Options
    Gasket: NBR / MVQ / FPM
    The pneumatic actuator of double-acting
    Inductive position sensor
    C - TOP control head
    Position sensor
    Connection type: SMS, RJT, DIN, 3A, ISO, Clamped, welded and threaded etc.


    Packaging Details
    Bubble pack for each valve.
    Outside packing are carton or plywood cases.
    Or as per the request of customers.

    Delivery details
    Usually within 20 days after receiving T/T down payment.
     2" SS316 Tank Bottom 3PC sanitary butterfly valve With Actuator 4
